Model GN-87

Concurrent Multi-GNSS Receiver Module
*This product is not available for new purchase.

GN-87 Modules provide the world’s most-accurate positioning and navigation solution using simultaneous Multi-GNSS technology in combination with active anti-jamming and advanced multipath mitigation.

GNSS (Timing, Automotive/Industrial)

Downloads

Features
Specifications
Drawing
Evaluation Kit
Downloads
Contact

Features

Multi-GNSS, Concurrent reception of GPS and GLONASS

The best positioning accuracy and smoothest ground tracking
Improved of robustness thanks to concurrent reception of GPS and GLONASS signals
Supports concurrent GPS, GLONASS, SBAS and QZSS

Receivable Galileo E1B/E1C

Galileo E1B and E1C signals receivable (ref. "Galileo OS SIS ICD Issue 1 Revision 1 September 2010")

Improved positioning rate with the world’s best-in-class number of acquired satellites

Twice the number of satellites in view than with GPS-only positioning thanks to Multi-GNSS
Improved success rate of positioning by receiving much more satellites even in urban canyons
Improved positioning accuracy in harsh environments where position jumps and misalignments occur with GPS-only positioning

Fast TTFF

Hot start: <1 sec

High Positioning Rate

Configurable position output update rate up to 10Hz (10 times per sec.)

Improved Noise Tolerance

Reduces effects of internal and external noise

Android™ driver and API

Furuno can provide Android driver and API, which can be used with Furuno's GNSS chip/module for Android application developers.
Android driver may help to reduce the development cost to install the GNSS chip/module in the navigation devices or the automotive devices based on Android.

for more details, click here

Embedded Flash ROM

Suitable for long-term use backed by FURUNO’s continuous support and function enhancement

Suitable for Automotive Applications

Market’s standard size, superior design for assembly

24Pin LCC (Leadless Chip Carrier)
12.2mm x 16.0mm x 2.8mm
Visible soldering condition with end-face electrodes

Selectable Active or Passive Antennas

Specifications

General

GNSS Reception Capability

GPS L1 C/A, GLONASS L1OF, QZSS L1 C/A, SBAS L1 C/A
Galileo E1B/E1C*
(Ready): QZSS L1S

*ref. "Galileo OS SIS ICD Issue 1 Revision 1 September 2010"

GNSS Reception

32 channels (GPS, GLONASS, Galileo, QZSS, SBAS)

Update Rate

1 / 2 / 5 / 10 Hz

Sensitivity

GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

GLONASS
Tracking: -157 dBm
Hot Start: -157 dBm
Warm Start: -143 dBm
Cold Start: -143 dBm
Reacquisition: -157 dBm

*Measurement platform with recommended active antenna

Position Accuracy (Horizontal)

GPS: 2.5m (CEP)
GPS + SBAS: 2.0m (CEP)
GPS + SBAS + GLONASS: 2.0m (CEP)

*Measurement platform with recommended active antenna
*Update rate: 1 Hz

TTFF (Typical)

Hot Start: <1 sec (@-130 dBm)
Warm Start: 30 sec (@-130 dBm)
Cold Start: 33 sec (@-130 dBm)

*Measurement platform with recommended active antenna

Supply Voltage

3.3VDC

Current Consumption

Acquisition Mode: 72 mA

Backup Supply

1.4 to 3.6VDC / 10 μA (Typ)

Operating Temperature

-40°C to +85°C

Storage Temperature

-40°C to +85°C

Package

24 Pin LCC(Leadless Chip Carrier)
12.2mm x 16.0mm x 2.8mm

Protocol

eSIP (NMEA 0183 Standard Ver 4.10)
FURUNO Binary

Interfaces

UART, Time Pulse

Anti-Jamming

Available

Multipath Mitigation

Available

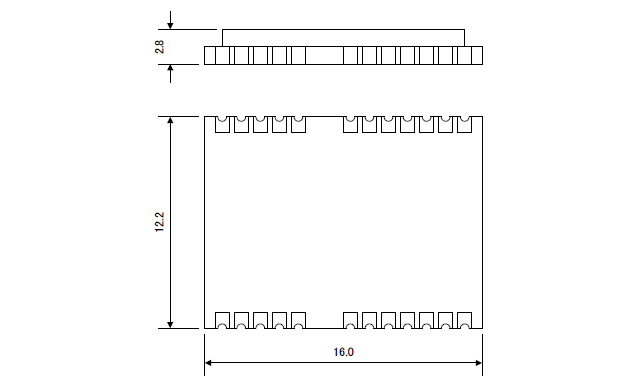

Drawing

Evaluation Kit

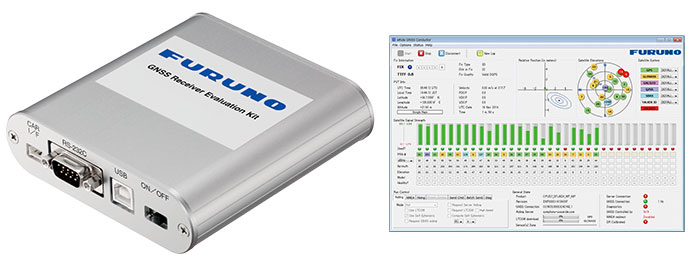

GN-87 Evaluation Kit is available to evaluate the performance of GN-87.
The Evaluation Kit can supply power and communicate with USB interface.

FEATURES

5VDC Power supply through USB bus power
Serial communication through USB
1PPS output from the SMA connectors
SMA antenna connection
Outer size is (w) 110mm x (D) 112mm x (H) 30mm
Weight is about 260g
Accessories are USB cable, GPS-GLONASS Antenna and CD ROM containing the Communication Software, the USB driver and the documentations

Downloads

Name	Last update
Hardware Specifications	Jun 12, 2017
Protocol Specifications（eSIP(NMEA 0183)）	Apr 5, 2017
User's Design Guide	Oct 30, 2015
Operation Manual for Evaluation Kit	Apr 9, 2019

Name	Remarks
FURUNO GNSS Conductor for Windows®	【System requirements】 OS Windows® 7(32bit, 64bit) / 8.1(64bit) / 10(64bit) Display resolution 1024x768 or higher User's Guide
FURUNO GNSS Conductor for Android™	【What is this?】 A monitoring software for GNSS receiver evaluation kit "VN series" of Furuno. It is available to see latitude, longitude, velocity and reception status of the satellite signal easily. It is also available to collect and playback the log data and plot the tracks on the map. * For more detailed evaluation and log storage, please use the GNSS Conductor of Windows version. 【How to install?】 Please install and launch the APK file which was sent by Email as attached file in advance on the Android terminal. * Please put the check in the "Unknown sources" in the security settings of the terminal before installing. 【How to use?】 Check the "Stay awake" and "Allow mock location" in the "Developer options" on the terminal, and start the application in a state of connecting an evaluation kit and Android terminal by the cable. * Please prepare the conversion connector of the micro USB on the Android terminal by customer. 1. Become a "communication mode" with the evaluation kit when you select the "GNSS Receiver VN-86x / VN87x" in the combo box on the upper part of the "Main" tab. Log data is collected automatically. 2. It becomes "log replay mode" when you select a NMEA file in the "choose NMEA file ..." 【Information】 Supported OS: Android™ OS 4.2.2 or higher Version: v1.1.1（2016/7/7） Size: 4.73MB Language: Japanese, English Confirmed to be working on NEXUS 7 (2013 model). Depending on Android device used, we cannot guarantee full compatibility.

Name

Remarks

FURUNO GNSS Conductor for Windows®

【System requirements】
OS
Windows® 7(32bit, 64bit) / 8.1(64bit) / 10(64bit)
Display resolution
1024x768 or higher

User's Guide

FURUNO GNSS Conductor for Android™

【What is this?】
A monitoring software for GNSS receiver evaluation kit "VN series" of Furuno.
It is available to see latitude, longitude, velocity and reception status of the satellite signal easily.
It is also available to collect and playback the log data and plot the tracks on the map.
* For more detailed evaluation and log storage, please use the GNSS Conductor of Windows version.

【How to install?】
Please install and launch the APK file which was sent by Email as attached file in advance on the Android terminal.
* Please put the check in the "Unknown sources" in the security settings of the terminal before installing.

【How to use?】
Check the "Stay awake" and "Allow mock location" in the "Developer options" on the terminal, and start the application in a state of connecting an evaluation kit and Android terminal by the cable.
* Please prepare the conversion connector of the micro USB on the Android terminal by customer.

1. Become a "communication mode" with the evaluation kit when you select the "GNSS Receiver VN-86x / VN87x" in the combo box on the upper part of the "Main" tab. Log data is collected automatically.
2. It becomes "log replay mode" when you select a NMEA file in the "choose NMEA file ..."
【Information】
Supported OS: Android™ OS 4.2.2 or higher
Version: v1.1.1（2016/7/7）
Size: 4.73MB
Language: Japanese, English

Confirmed to be working on NEXUS 7 (2013 model).
Depending on Android device used, we cannot guarantee full compatibility.
