- Ultrasound Bone Densitometer
Model CM-300

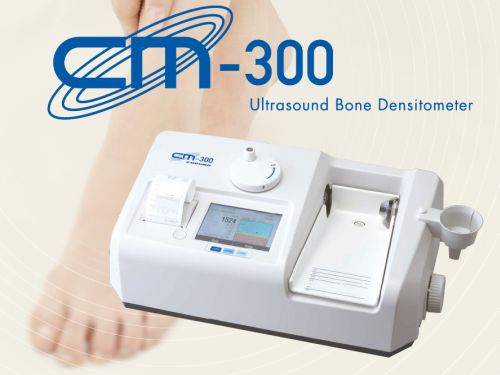

Ultrasound Bone Densitometer CM-300 measures bone density of human heel using ultrasound. The result is printed out with graph format chart from a built-in printer. Also adjustable Foot Plate (5 levels) and Temperature Compensation feature provides accurate results. With easy-to-use interface of the color touch screen, CM-300 is most suitable for screening test of osteoporosis.
- Healthcare
Features
Safe for the measurement of younger or pregnant person, with non-invasive nature of ultrasound
Approx. 10 seconds per measurement, suitable for screening test for osteoporosis

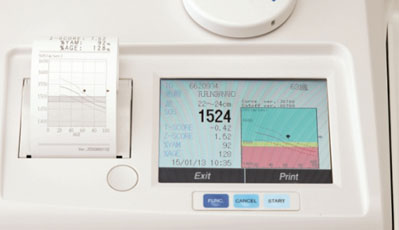

Easy-to-use interface of the color touch screen and built-in printer

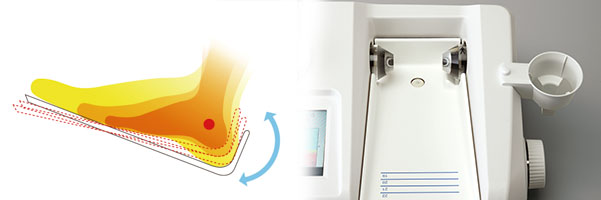

Accurate measurement with 5 levels Foot Plate and Temperature Compensation feature
USB and Bluetooth® wireless technology connectivity with PC
Bluetooth word mark is registered trademarks owned by Bluetooth SIG, Inc.
Specifications
General
Calcaneus (Heel bone)
Ultrasound pulse penetration
Speed of sound (SOS)
Approx. 10 seconds
%CV 0.5 % or better (in test cases measurement)
Center frequency 500 kHz
Dry type (acoustic gel)
Temperature: 10 to 35 °C
Humidity: 35 to 85 %RH (non condensing)
AC 100-120 V, 50 / 60 Hz, 0.6A (max)
AC 200-240 V, 50 / 60 Hz, 0.3A (max)
525 mm(W) x 310 mm(D) x 200 mm(H)
Approx. 10kg
Downloads
Inquiries about Healthcare Products
- Specifications subject to change without notice.
