- GNSS Antennas・Accessories
Model
AU-117
- Discontinued Products
Ideal for use in difficult site locations such as weather and RF interference areas
The AU series is a GPS/GNSS antenna for Timing that is intended for installation on buildings.
The AU-117 has excellent weather resistance and interference resistance and has the function of filtering radio waves that adversely affect the GNSS receiver (such as radio waves for broadcasting and satellite communications). The AU-117 is equipped with a radome that prevents signal attenuation due to snow accumulation.
- GNSS (Timing, Automotive/Industrial)
Features
Many successful installations at broadcasting stations in Japan including applications for terrestrial digital broadcasting
Waterproof/Water resistant (Outburst)
Standard TNC Connection
Easy installation with optional use of antenna mounting bracket
Developed specifically for GPS/GNSS Timing applications
Rb/GPS Disciplined Oscilator（GF-8048）
Specifications
General
1575.42MHz±1.023MHz
R. H. C. P. (Right Hand Circular
Polarization)
>= 2.0dBi (at 90° elev. angle)
>= -4.0dBi (at 10° elev. angle)
50Ω
30±5dB
<= 3.5dB
<= 2.0
4 to 5.5VDC
<= 28mA
-25°C to +70°C
-35°C to +75°C
<= 95%RH
Ideal for use in locations with
intense electric field
140 g
TNC-J

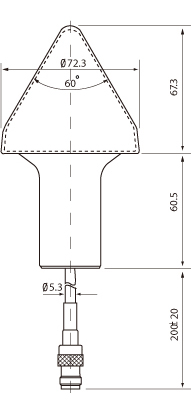

Drawing
Downloads
| Name | Remarks |
|---|---|
|
Download Form |
Inquiries about GNSS Products
- Specifications subject to change without notice.
