GPA-017
- Old Products
Ideal for outdoor installation in harsh weather conditions
The GPA series is a GPS/GNSS antenna for Timing that is intended for installation on buildings.
GPA-017 is a compact and lightweight package designed to withstand harsh outdoor environments including rain, wind, sunlight and temperature changes.
>New Products: Dual/Single-band GNSS Antennas AU-500/300 deliver both high stability and high robustness
- GNSS (Timing, Automotive/Industrial)
Features
Standard type GPS antenna
Standard TNC Connection
Easy installation with optional use of antenna mounting bracket
Specifications
General
1575.42MHz±1.023MHz
R. H. C. P. (Right Hand Circular
Polarization)
>= 2.0dBi (at 90° elev. angle)
>= -4.0dBi (at 10° elev. angle)
50 Ω
27.5±5.5dB
<= 1.6dB
<= 2.0
4 to 5.5VDC
<= 25mA
-25°C to +70°C
-35°C to +75°C
<= 95%RH
Standard type
120 g
TNC-J

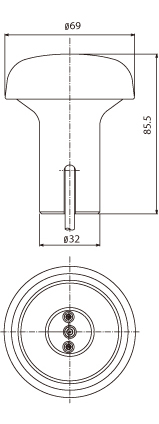

Drawing
Three essential points when installing a GNSS antenna
When installing a GNSS antenna, components such as the coaxial cables and amplifiers should be selected to satisfy the antenna specifications of the GNSS receiver. It is also necessary to consider the propagation delay between the antenna and the receiver.
In the following document, we explain how to calculate the required specification values with concrete examples from the viewpoint of a GNSS receiver manufacturers.
- Total gain
- Total NF
- ropagation delay in coaxial cables
It is especially useful for those who are new to GNSS receivers. We have prepared an Excel tool for calculating "Total Gain" and "Total NF" due to their complex formulas.
Please fill in the form to download the document and calculation tool.
Downloads
| Name | Remarks |
|---|---|
|
Download Form |
