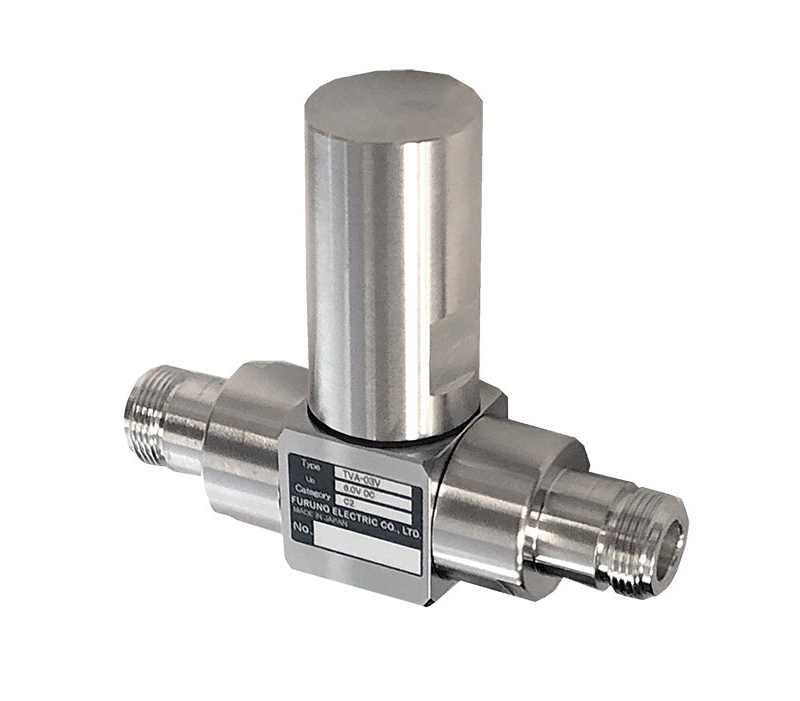

Coaxial lightning arrestor

Model TVA-03V
  • Old Products

Protect GNSS receiver from induced lightning surges

The coaxial lightning arrestor covers GPS (L1), GLONASS (L1), and Galileo(E1). It supports combination with GPS receivers as well as multi-GNSS receivers. It demonstrates safe lightning surge performance that clears IEC 61643-21 and JIS C 5381-21.

* For protection against induced lightning surges, please explore the new GNSS surge protector, TVA-05V.

  • GNSS (Timing, Automotive/Industrial)

Features

Protect GNSS receiver from induced lightning surges

Combined with the TVA-03C, it protects equipment from both direct and induced lightning surges.

White paper: Surge Protection Device Test Report
[Overview] Using our products (for direct and induced lightning) as examples, this introduces their installation methods and the results of lightning impulse tests.

Download form

Drawing

Characteristics table

Model

TVA-03V

Water-proof*

IPX5

Frequency band

Center frequency
GPS（L1 band） 1575.42MHz
GLONASS（G1 band） 1602MHz
Frequency band
GPS（L1 band） 1575.42MHz±5MHz
GLONASS（G1 band） 1602MHz±9MHz

Maximum continuous working power Uc

6.0V DC

Maximum allowable power

10W

Insertion loss

0.2dB or less

VSWR

1.2 or less

Connecotr

N type

Impedance

50Ω

Voltage protection level Up

10V or less

Impulse durability

Category C2 10kA

Downloads

Name Last update
Aug 20, 2021
