Model eOP3160(BB), ePR3036Q(RF)

Discontinued Products

The eRideOPUS 3 series are ultra high sensitivity, GPS/A-GPS receiver chipsets that combine a highly integrated solution, with on-chip MCU, ROM, and navigation software.

The eRideOPUS 3 series, eOP3160B / ePR3036Q designed for consumer device adapting many kinds of applications like the wireless communication and hand-held devices.

GNSS (Timing, Automotive/Industrial)

Features
Specifications

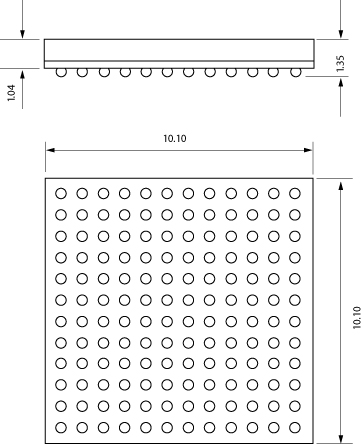

Drawing
Contact

Features

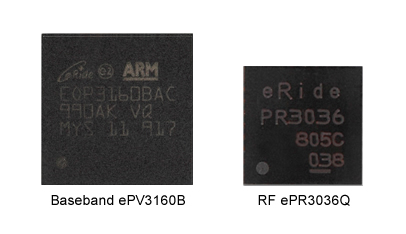

This chipset includes the eOP3160B (Baseband IC) and the ePR3036Q (RF Receiver IC).

Ultra-high sensitivity: -161 dBm sensitivity in both acquisition and tracking ensures position fix continuity indoors, outdoors and in urban canyons

Simple, low cost: Highly integrated solution, single rail supply. Position, speed, time, and aiding data over bidirectional industry standard NMEA interface

Easy integration: Connects to application via serial port

Miniature size: Total footprint supports miniaturized designs

Automotive Qualified

Specifications

General

GNSS Reception Capability

GPS L1 C/A, SBAS L1 C/A

GNSS Reception

12 Channels

Update Rate

1 Hz

Sensitivity

Acquisition, Reacquisition & Tracking：-161 dBm, variable update rate

TTFF (Typical)

Hot Start (Outdoors) : <1 sec Typ @-130 dBm
Hot Start (Indoors) : <6 sec Typ @-150 dBm
Warm Start: 33 sec Typ @-130 dBm
Cold Start: 33 sec Typ @-130 dBm

Supply Voltage

eOP3160B: 3.0 V - 3.6 V single rail, or 3.0 - 3.6 and 1.8/1.0 V +/- 10% ext.
ePR3036Q: 3.0 V +/-10%

Power Consumption

Deep Sleep/RTC Mode: 24 μW
Track Mode, Outdoors 68 mW
Track Mode, Indoors 88 mW
Search Mode: 90 mW

Operating Temperature

-40°C to + 85°C

Package

eOP3160B:10x10 mm foot-print 144-pin LFBGA
ePR3036Q RF Receiver IC: 5.0 x 5.0 x 0.75 mm, QFN

Interfaces

2UART, SPI, I2C, 7GPIO
