GPS Receiver Chip eRideOPUS 5

Model ePV5800B
  • Discontinued Products

Ultra high-sensitivity, single-die GPS/A-GPS receiver chip

eRideOPUS 5 (ePV5800B) is a high-sensitivity GPS/AGPS receiver System-in-a-Package (SiP) that combines single-die receiver. It delivers fast, accurate positioning data in challenging locations such as indoor environments and deep urban canyons.

  • GNSS (Timing, Automotive/Industrial)

Features

Ultra-high Sensitivity: -161 dBm acquisition sensitivity ensures position fix availability indoors, outdoors and in urban canyons

Fast: <2 sec TTFF ensures user satisfaction

Easy Integration and Miniature Size: Optimized RF and Digital design ensures GPS performance while on-chip LNA minimizes BOM

Supports WAAS:2 Channel capable SBAS (EGNOS, WAAS and MSAS)

Assisted GPS function is available.

Advanced Features:PPS output and Dead Reckoning for uninterrupted positioning

Configurable up to 5Hz

Specifications

General

GNSS Reception Capability

GPS L1 C/A, SBAS L1 C/A

GNSS Reception

14 channels (GPS, SBAS)

Update Rate

GNSS: 1 / 2 / 5 Hz
Dead Reckoning: 1 Hz

Sensitivity

GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

Position Accuracy (Horizontal)

2.5m (CEP)

TTFF (Typical)

Hot Start: <2 sec (@-130 dBm)
Warm Start: 33 sec (@-130 dBm)
Cold Start: 38 sec (@-130 dBm)

Supply Voltage

1.8VDC

Power Consumption

Acquisition Mode: 58 mW

Backup Supply

1.4 to 2.75VDC / 20 μA (Typ)

Operating Temperature

-40°C to +85°C

Package

Size: TFBGA 9.0mm x 9.0mm, Pins: 141balls, Ball Pitch: 0.65mm

Protocol

eSIP (NMEA 0183 Standard Ver 3.01)

Interfaces

UART, I2C, Forward/Reverse signal, Speed Pulse, Time Pulse, Clock

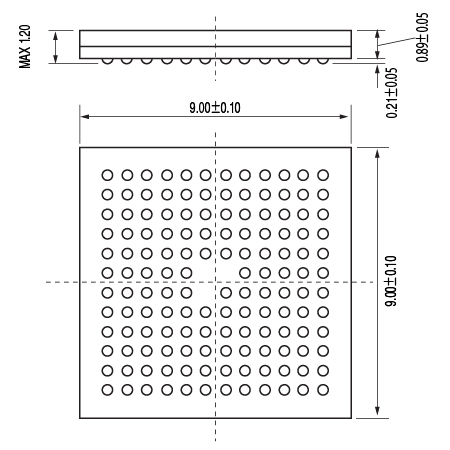

Drawing
