Model
ePV5900B
- Discontinued Products
eRideOPUS 5 (ePV5900B) is a high-sensitivity
GPS/AGPS receiver System-in-a-Package (SiP) that combines single-die receiver with integrated flash memory. It delivers fast, accurate positioning data in challenging locations such as indoor environments and deep urban canyons.
- GNSS (Timing, Automotive/Industrial)
Features
Ultra-high Sensitivity: -161 dBm acquisition sensitivity ensures position fix availability indoors, outdoors and in urban canyons
Fast: <2 sec TTFF ensures user satisfaction
Easy Integration and Miniature Size: Optimized RF and Digital design ensures GPS performance while on-chip LNA minimizes BOM
Integrated Flash:Non-volatile storage for both aiding data and reprogrammable receiver software to ensure access to latest features and performance enhancements.
Supports WAAS:2 Channel capable SBAS (EGNOS, WAAS and MSAS)
Assisted GPS function is available.
Advanced Features:PPS output and Dead Reckoning for uninterrupted positioning
Configurable up to 5Hz
Specifications
General
GPS L1 C/A, SBAS L1 C/A
14 channels (GPS, SBAS)
GNSS: 1 / 2 / 5 Hz
Dead Reckoning: 1 Hz
GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm
2.5m (CEP)
Hot Start: <2 sec (@-130 dBm)
Warm Start: 33 sec (@-130 dBm)
Cold Start: 38 sec (@-130 dBm)
1.8VDC
Acquisition Mode: 67 mW
1.4 to 2.75VDC / 20 μA (Typ)
-40°C to +85°C
Size: TFBGA 6.0mm x 6.0mm, Pins: 81balls, Ball Pitch: 0.5mm
eSIP (NMEA 0183 Standard Ver 3.01)
UART, I2C, Forward/Reverse signal, Speed Pulse, Time Pulse, Clock

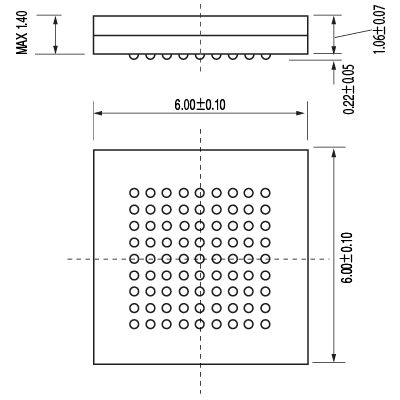

Drawing
Inquiries about GNSS Products
- Specifications subject to change without notice.
