GPS Receiver Module

Model GH-33
  • Discontinued Products

Multi-GNSS receiver antenna module enabling concurrent reception of GPS and GLONASS signals.

The GH-33 is a multi-GNSS antenna module containing all receiving functions including a passive antenna. It designed for consumer applications using a multi-GNSS chip "MT3333" (MediaTek). The GH-33 is appropriate for handheld devices.

  • GNSS (Timing, Automotive/Industrial)

Features

Integrated patch antenna

PVT solution platform (outputs position, velocity and time in NMEA protocol)

Design for the consumer market using the MediaTek multi-GNSS chip "MT3333"

Supports concurrent reception of GPS, GLONASS, SBAS, and QZSS.

Easy integration via a connector interface

Specifications

General

GNSS Reception Capability

GPS L1 C/A, SBAS L1 C/A, QZSS L1 C/A,
GLONASS L1OF

Sensitivity

GPS
Tracking: -160 dBm
Hot Start: -157 dBm

TTFF (Typical)

Hot Start: 3 sec (@ -130 dBm)
Warm Start: 34 sec (@ -130 dBm)
Cold Start: 45 sec (@ -130 dBm)

Supply Voltage

3.3VDC

Current Consumption

Acquisition Mode: 40 mA

Backup Supply

2.0 to 3.6 VDC

Operating Temperature

-20°C to +70°C

Outer Size

22mm x 22mm x 7.7mm (including Patch antenna)
Antenna Size: 18mm x 18mm x 4mm

Protocol

NMEA 0183

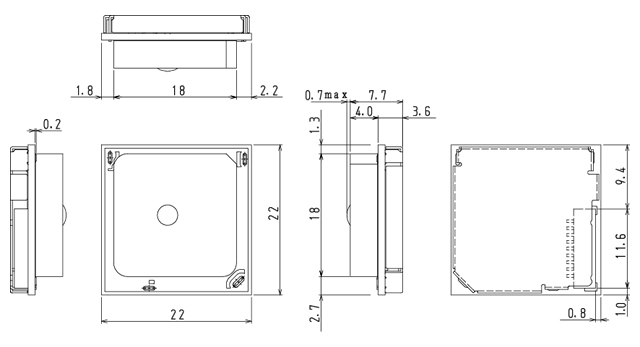

Drawing
