Model
GH-84
- Discontinued Products
It delivers fast, accurate positioning data in challenging locations such as indoor environments and deep urban canyons.The GH-84 employs novel decoding algorithms, effectively achieving 44,000 correlators.
- GNSS (Timing, Automotive/Industrial)
Features
Simple power supply & Powerful navigation
The module will offer powerful navigation with supplying 3.3VDC single power supply. Small footprint enables mounting on the customers circuit easily.
Miniature & Lightweight
Very small and powerful module will allow you to have excellent Furuno quality performance. Designed specifically for the handheld device market.
Specifications
General
GPS L1 C/A
12ch
1Hz
Acquisition (Hot start) : -157 dBm
Hot start : 2 sec
Warm start : 33 sec
Cold start : 38 sec
*Time after power-on at Ta=25°C, -128dBm, Open sky.
VCC : 3.3V ±0.3V
ICC : 78mA (typical, While acquiring satellites , VCC=3.6V)
Voltage : 1.8 V to 3.6V DC
Current : < 20 micro A (VCC=0V)
: < 2 micro A (VCC=3.3V)
-30°C to +85°C
-40°C to +85°C
23.7 mm (W) x 24.7 mm (D) x 7.4 mm (H)
NMEA0183 /FEC Binary
Single Serial UART
3 Volt CMOS Digital Levels

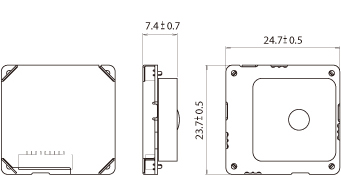

Drawing
