GPS Receiver Module

Model GH-85
  • Discontinued Products

Small and powerful module equipped with the passive antenna.

The Furuno GH-85 is a miniature high-sensitivity, low power GPS receiver. It delivers fast, accurate positioning data in challenging locations such as indoor environments and deep urban canyons.

  • GNSS (Timing, Automotive/Industrial)

Features

18x18mm Patch antenna integrated

PVT solution platform

Easy implemented by connector interface

Ultra-high sensitivity

1PPS output available

Configurable up to 5Hz

Specifications

General

GNSS Reception Capability

GPS L1 C/A, SBAS L1 C/A

Sensitivity

GPS
Tracking: -157 dBm
Hot Start: -157 dBm

TTFF (Typical)

Hot Start: 3 sec (@ -130 dBm)
Warm Start: 33 sec (@ -130 dBm)
Cold Start: 38 sec (@ -130 dBm)

Supply Voltage

1.8VDC

Current Consumption

Acquisition Mode: 60 mA

Backup Supply

1.8 VDC

Operating Temperature

-30°C to +85°C

Outer Size

22mm x 22mm x 7.4mm (including Patch antenna)
Antenna Size: 18mm x 18mm x 4mm

Protocol

eSIP (NMEA 0183)

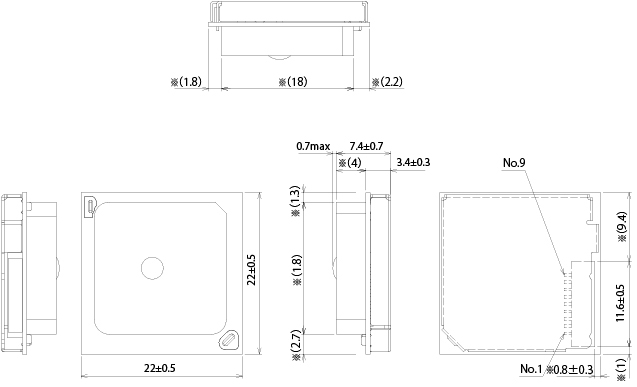

Drawing
