Model
GN-80
- Discontinued Products
Higher sensitivity and faster TTFF has been realized thanks to newly developed signal processing technology.
- GNSS (Timing, Automotive/Industrial)
Features
Faster TTFF
46 seconds typical in Cold Start has been realized thanks to high-speed search engines integrated into each channel
Significant improvement in higher sensitivity
8dB better than our former Model GN-79
Miniature and lightweight
40% less than our former Model GN-79
Low power consumption
48mA while tracking satellites (1/3 less than previous Model GN-79) without sacrificing performance
Selection of mounting methods including Vertical and Horizontal mount types
1PPS output synchronized with UTC
Antenna detection circuitry incorporated
Selection of various antenna connectors
WAAS option available
Flash ROM containing user application can be integrated into Digital ASIC (optional)
Specifications
General
GPS L1 C/A
12ch
1Hz
Acquisition (Hot start) : -138 dBm
Hot start : 8 seconds
Warm start : 35 seconds
Cold start 1 : 42 seconds
Cold stard 2 : 46 seconds
3.3 VDC +/- 0.3 V
72mA Max (@ VCC=3.6V, Ta=25℃, Flash Rom version)
Voltage = 2.1 VDC to Operation Voltage
Current <= 10 uA (@ VCC=0V)
-30°C to +80°C
-40°C to +85°C
Short and Open Detection
NMEA0183 (Ver. 2.3) / Optional Binary
3.3 V CMOS
Drawing

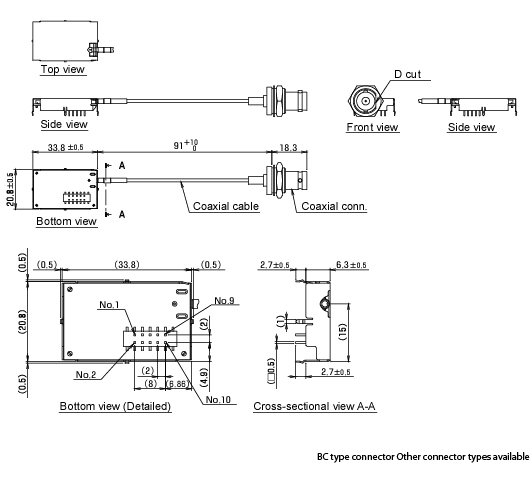

GN-80-V (Vertical mount type)

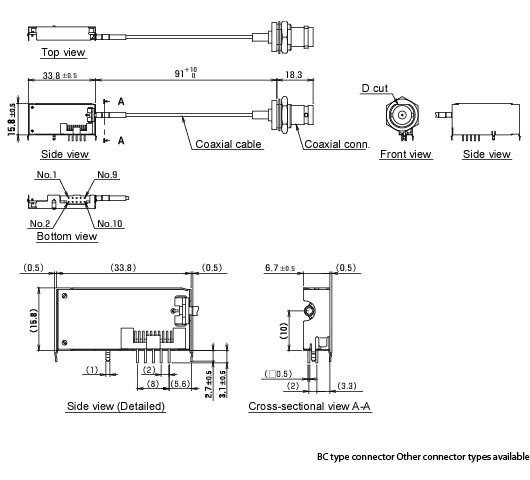

GN-80-H (Horizontal mount type)
Inquiries about GNSS Products
- Specifications subject to change without notice.
