Model
GN-8421
- Discontinued Products
GN-8421 is ideal for a wide range of applications where performance, time to market and ease of integration are prime considerations. It includes two SAW filters for high performance when integrated with wireless communications, and has advanced features for use in car navigation devices and fleet management.
GN-8421 is based on OPUS III technology and includes the eRideOPUS IIIez BB IC and the Prelude III RF Receiver IC, a TCXO, two SAW filters and various matching and peripheral components in a small form factor. It is your complete GPS/AGPS solution with only an external GPS antenna and power supply required
- GNSS (Timing, Automotive/Industrial)
Features
Provides PVT (Position, Velocity, & Time) in a single package solution.
High sensitivity (-158dBm Typ).
SBAS (EGNOS, WAAS and MSAS) capable
Quick TTFF (Hot start: 2 seconds Typical).
Low profile, small SMT package reducing the mounting area and mounting cost.
Small footprint: 22mm x 22mm
Well-accepted by automotive electronics device manufacturers thanks to its reliability
eRide powerful navigation software is integrated
3.3V and 1.2 V power supply selectable
Specifications
General
GPS L1 C/A, SBAS L1 C/A
14ch (GPS, SBAS)
Acquisition (Hot Start): -158 dBm
Tracking: -158 dBm
Hot Start (Outdoors) : <2 sec Typ @-130 dBm
Warm Start: 33 sec Typ @ -130 dBm
Cold Start: 38 sec Typ @ -130 dBm
3.3V (VCC only) or 3.3V(VCC)/1.8V(VCORE)
80 mA (VCC only, Acquisition outdoor)
45mA(ICC)/ 43mA(ICORE) (VCC and VCOR, Acquisition outdoor)
-40°C to +85°C (Performance guarantee)
-40°C to +85°C (Function guarantee)
22.0mm x 22.0mm x 3.0mm
NMEA 0183
eRide Serial Interface Protocol (eSIP)

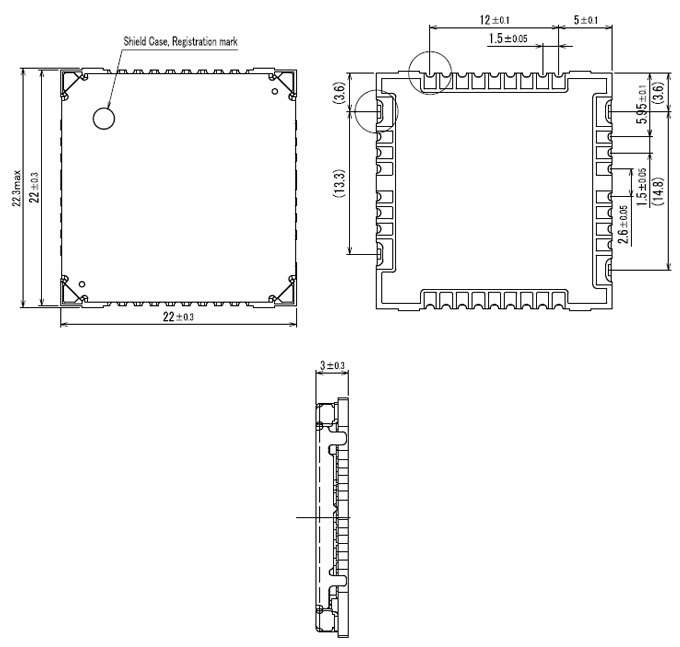

Drawing
Inquiries about GNSS Products
- Specifications subject to change without notice.
