GPS Receiver Module

Model GN-85F
  • Discontinued Products

High-sensitivity, complete GPS receiver module.

The Furuno GN-85F is a miniature high-sensitivity, low power GPS receiver. It delivers fast, accurate positioning data in challenging locations such as indoor environments and deep urban canyons.

  • GNSS (Timing, Automotive/Industrial)

Features

PVT (Position, Velocity, & Time) in a single package solution

Ultra-high sensitivity (-160dBm Typical) with active antenna

Two Channel SBAS available

Quick start available in terrible reception condition by Self-Ephemeris function

Assist GPS function is available.

Available of active and passive antenna

Low profile, small SMT package reducing the mounting area and mounting cost.

Configurable up to 5Hz

Specifications

General

GNSS Reception Capability

GPS L1 C/A, SBAS L1 C/A

GNSS Reception

14 channels (GPS, SBAS)

Update Rate

1 / 2 / 5 Hz

Sensitivity

GPS
Tracking: -160 dBm
Reacquisition: -160 dBm

TTFF (Typical)

Hot Start: <2 sec (@ -130 dBm)
Warm Start: 33 sec (@ -130 dBm)
Cold Start: 38 sec (@ -130 dBm)

Supply Voltage

1.8VDC

Current Consumption

Acquisition Mode: 60 mA

Backup Supply

1.4 to 2.7 VDC / 20 μA (Typ) (VCC = 0V)

Operating Temperature

-40°C to +85°C

Package

18.0mm×21.5mm×3.0mm

Protocol

eSIP (NMEA 0183 Standard Ver 3.01)

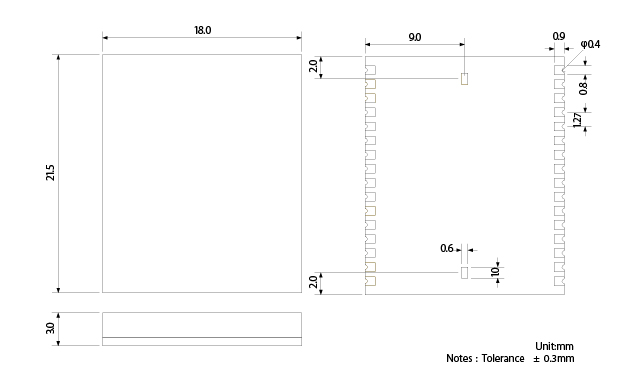

Drawing
