• GNSS for Automotive & Industrial
DR/GPS Receiver Module

Model GV-84H
  • Discontinued Products

The Furuno GV-84H is the Hybrid DR(Dead Reckoning)/GPS receiver module equipped with the inertial gyro and acceleration sensors and a passive antenna.

GV-84H is available to use the dead reckoning function by itself, and accomplishes the hybrid positioning along with GPS

  • GNSS (Timing, Automotive/Industrial)

Features

The GV-84H is a DR(Dead Reckoning)/GPS module equipped with inertial sensors and the passive antenna.

High performance Dead Reckoning is realized thanks to the combination of GPS, Gyro sensor and acceleration sensor

High accuracy positioning is available in tunnels and urban canyons where GPS receivers cannot receive GPS signals

Designed specially for PND (Personal Navigation Device)

Specifications

General

GNSS Reception Capability

GPS L1 C/A

GNSS Reception

12 channels (GPS)

Update Rate

1 Hz

Sensitivity

GPS
Tracking: -157 dBm

TTFF (Typical)

Hot Start: <3 sec (@-130 dBm)
Warm Start: 34 sec (@-130 dBm)
Cold Start: 45 sec (@-130 dBm)

Supply Voltage

3.3VDC

Current Consumption

Acquisition Mode: 57 mA

Backup Supply

1.8 to 3.6 VDC / 20 μA (Typ) (VCC=0V)

Operating Temperature

-30°C to +85°C

Package

15.0mm×64.0mm×5.7mm

Protocol

NMEA0183 Standard Ver. 2.3

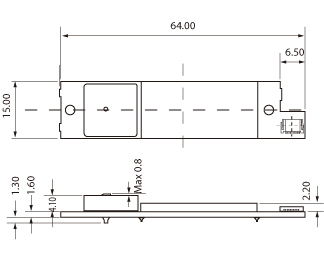

Drawing
