• GNSS for Automotive & Industrial
DR/GPS Receiver Module

Model GV-85
  • Discontinued Products

High-sensitivity, complete DR(Dead Reckoning)/GPS receiver module.

The Furuno GV-85 is a miniature high-sensitivity, low power DR(Dead Reckoning)/GPS receiver, enabling uninterrupted accurate positioning in harsh environments

  • GNSS (Timing, Automotive/Industrial)

Features

PVT (Position, Velocity, & Time) in a single package solution

Provides uninterrupted accurate positioning even in tunnels, in underground parking lots, or under an overpass thanks to Furuno Advanced Dead Reckoning technology.

Interface with inertial sensors (Gyro sensor/Accelerometer), wheel speed pulse, forward/reverse signal and CAN Bus is available.

Ultra-high sensitivity (-160dBm Typical) with active antenna

Two Channel SBAS available

Assist GPS function is available.

Available of active and passive antenna

Low profile, small SMT package reducing the mounting area and mounting cost.

Specifications

General

GNSS Reception Capability

GPS L1 C/A, SBAS L1 C/A

GNSS Reception

14 channels (GPS, SBAS)

Update Rate

1 Hz

Sensitivity

GPS
Tracking: -160 dBm
Reacquisition: -160 dBm

TTFF (Typical)

Hot Start: <2 sec (@-130 dBm)
Warm Start: 33 sec (@-130 dBm)
Cold Start: 38 sec (@-130 dBm)

Supply Voltage

1.8VDC

Current Consumption

Acquisition Mode: 60 mA

Backup Supply

1.4 to 2.7 VDC / 20 μA (Typ) (VCC=0V)

Operating Temperature

-40°C to +85°C

Package

18.0mm×21.5mm×3.0mm

Protocol

eSIP (NMEA 0183 Standard Ver. 3.01)

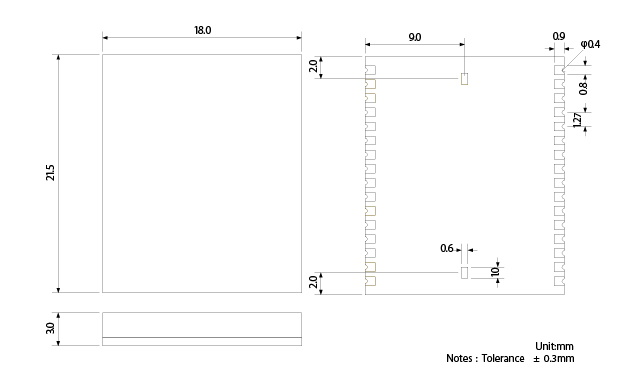

Drawing
