GPS Disciplined Oscillator

Model GF-180TC
  • Discontinued Products

GF-180TC is ultra compact and low cost GPS Disciplined Oscillator. It has VCTCXO as a base oscillator, which is overwhelmingly ultra compact and low cost comparing with OCXO.

High stability frequency is generated with locking on the timing signal from GPS receiver.
The GF-180TC Receives GPS signals and generates 1PPS (pulse per second) synchronized with UTC as well as 10MHz sine wave and square wave coherent to 1PPS.

  • GNSS (Timing, Automotive/Industrial)

Features

Possible to generate 1PPS synchronized with UTC as well as 10MHz sine wave and square wave coherent to 1PPS

The GF-180TC realizes the coherency within ±10ns accuracy between the falling edge of 1PPS and the zero crossing of 10MHz.

The GF-180TC adapts TCXO (Temperature compensated crystal oscillator). The accuracy by itself is 10-6approx.(1ppm). The excellent high accuracy is realized by the combination with GPS.

Designed especially for wireless broadband base stations for CDMA, WiMAX and LTE.

Specifications

General

GNSS Reception Capability

GPS L1 C/A

GNSS Reception

12 channels (GPS)

Sensitivity

-133dBm ～ -110dBm

10MHz Output (Lock State)

Frequency Accuracy:< ±1×10⁻¹¹
Short Term Stability:< ±5×10⁻¹⁰

1PPS Output (Lock State)

1PPS Accuracy: < ±200ns(95%)

10MHz Output (Holdover)

Short Term Stability: 5×10⁻¹⁰ (Typ)

1PPS Output (Holdover)

1PPS Accuracy: <±1μs/100s (Typ)

Supply Voltage

3.3VDC

Current Consumption

0.2A and lower (3.3V, Normal Status)

Operating Temperature

-40°C to +85°C

Antenna Detection

Short and Open Detection

Alarm Output

Available

Outer Size

51mm×51mm×16mm

Protocol

NMEA 0183, TOD

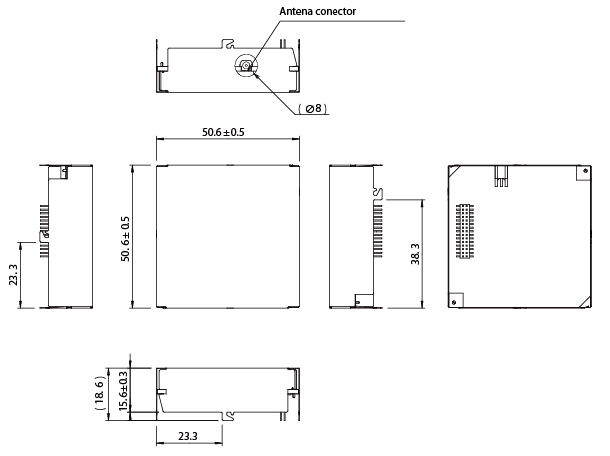

Drawing

Inquiries about GNSS Products

Contact Form
Locate a Distributor

GNSS for Time Sync Product List

Timing Multi-GNSS Receiver Module

Model

GT-100
Timing Multi-GNSS Receiver Module

Model

GT-90/GT-9001
Timing Multi-GNSS Receiver Module

Model

GT-88
Multi-GNSS Disciplined Oscillator

Model

GF-8801/02/03
Multi-GNSS Disciplined Oscillator

Model

GF-8804/05
GPS Disciplined Oscillator

Model

GF-8048
Field Time Sync Generator

Model

TB-1
