- GNSS for Time Sync
Model
GT-8031
- Discontinued Products
Integrity is further improved because of its SBAS (WAAS) capability in addition to traditional T-RAIM (Time-Receiver Autonomous Integrity Monitor) function. Several new command sets have been added for easier use.
PPS output mode is available. For example, in "always output mode", 1PPS is output without satellite signals using the receiver's internal timing (no UTC synchronization). In "fixed observation point mode", one satellite signal is enough to output UTC synchronized 1PPS. application is infinite.
- GNSS (Timing, Automotive/Industrial)
Features
Low cost but powerful, fast 16 Channel GPS receiver
Accuracy is not sacrificed 15 nanoseconds with regard to UTC (1 sigma).
Low power consumption (58mA@3.3VDC) at full tracking satellites
RF pig tail cable with popular connector already soldered for easier, more cost-effective installation.
Almanac uploading and downloading.
Autonomous transition from "Survey" to "Fixed Observation Point" lets the receiver calculate its position and then use the averaged position as the fixed observation point.
Allows you to go back to the fixed position even after power-off.
Specifications
General
GPS L1 C/A, SBAS L1 C/A
12 Satellites simultaneously including 1 WAAS supporting channel
1Hz
Acquisition : -138 dBm
30 nanosec (2drms)
8.4 seconds Hot Start (Open Sky)
36 seconds Warm Start (Open Sky)
44.9 seconds Cold Start (Open Sky)
3.0 to 3.6 VDC
Max 72 mA at 3.6 VDC
Voltage: 2.1 to 3.6 VDC
Current: max 200 uA when VCC = 3.6 VDC
-30°C to +80°C
-40°C to +85°C
Antenna current detection circuit
Over-flow protection circuit
20.8 mm (W) x 33.8 mm (D) x 6.3 mm (H)
NMEA-Like
TTL(Normal High)

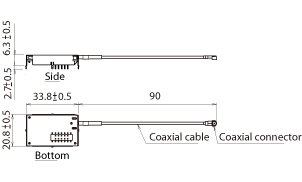

Drawing
Inquiries about GNSS Products
- Specifications subject to change without notice.
