- GNSS for Time Sync
Model
GT-8036, GT-8037
- Discontinued Products
It features an identical footprint to the Motorola M12M device for all applications requiring a highly accurate timing device operating in a M12 protocol environment. The GT8036/GT-8037 surpasses the Motorola M12M with a very fast TTFF (time to first fix) of 52 sec., and an excellent “Hot Start” time of 9 sec. The GT8036 also offers very fast signal acquisition and recovery speed.
The GT8036/GT-8037 has excellent 1PPS output with position hold and automatic site survey software, T-RAIM Select, T-RAIM Alarm and Status messages.
- GNSS (Timing, Automotive/Industrial)
Features
1PPS output synchronized with UTC
High performance filter incorporated for interference rejection.
Well-accepted by base station manufactures thanks to its reliability
Specifications
General
GPS L1 C/A
12ch
1Hz
9 seconds Hot Start (Open Sky)
37 seconds Warm Start (Open Sky)
52 seconds Cold Start (Open Sky)
3.0 to 3.6 VDC
Max 100 mA at 3.6 VDC
Voltage: 2.1 to 3.6 VDC
Current: 1 mA when VCC = 3.6 VDC
-40 - +85 degree
-40 - +85 degree
Antenna current detection circuit
Over-flow protection circuit
40.0 mm (W) x 60.0 mm (D) x 1.1 mm (H)
Binary

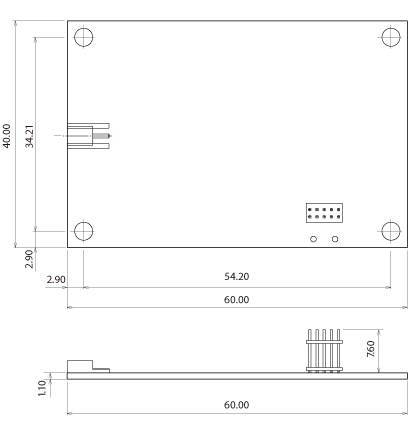

Drawing
Inquiries about GNSS Products
- Specifications subject to change without notice.
