Timing GPS Receiver Module

Model GT-8536
  • Discontinued Products

High-sensitivity, Hign-accurate Timing GPS modules with M12 protocol.

The GT-8536 features an identical footprint to the Motorola M12M device for all applications requiring a highly accurate timing device operating in a M12 protocol environment. It surpasses the Motorola M12M.
The GT-8536 has excellent 1PPS output with position hold and automatic site survey software, T-RAIM Select, T-RAIM Alarm and Status messages.

  • GNSS (Timing, Automotive/Industrial)

Features

Engine is eRideOPUS 5 Single Die GPS receiver

High sensitivity GPS module

1PPS output syncronized with UTC

Accurate and robust 1PPS timing signal output (Timing accuracy :15nsec(1σ))

High integrity brought by TRAIM and SBAS

Various position modes (Navigation mode/ Time only mode/ Self survey mode)

Various 1PPS output control (5types of 1PPS control)

M12 binary protocol

Specifications

General

GNSS Reception Capability

GPS L1 C/A, SBAS L1 C/A

GNSS Reception

14 channels (GPS, SBAS)

Sensitivity

GPS
Tracking: -159 dBm
Acquisition: -147 dBm

1PPS Stability

15ns (1σ) ( @-130 dBm)
50ns (1σ) ( @-150 dBm)

TTFF (Typical)

Hot Start: <5 sec (@-130 dBm)
Warm Start: 70 sec (@-130 dBm)
Cold Start: 70 sec (@-130 dBm)

Supply Voltage

3.3VDC

Current Consumption

Acquisition Mode: 52 mA

Backup Supply

2.2 to 3.6VDC / 20μA (Typ) (VCC=0V)

Operating Temperature

-40°C to +85°C

Package

40.0mm×60.0mm×5.8mm

Protocol

M12 Binary

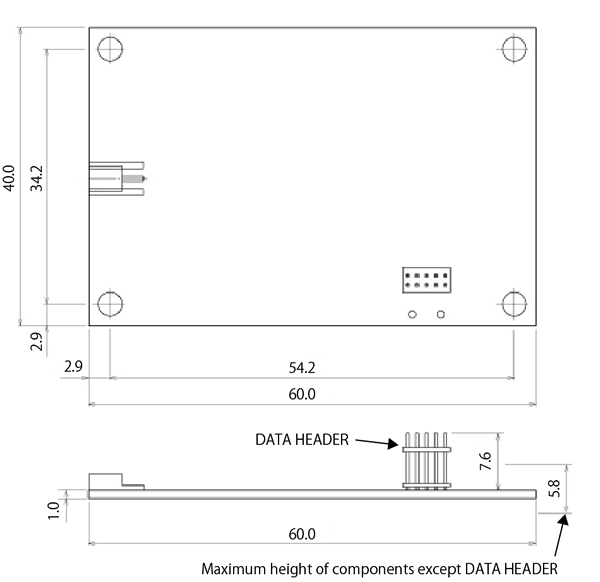

Drawing
