- GNSS for Time Sync
Model
GT-87
- Old Products
The GT-87 supports TRAIM and various position modes, allowing it to output accurate and robust 1PPS synchronized to UTC time.
The GT-87 supports GPS, GLONASS, QZSS, SBAS.
New product: High robustness with dual frequency band reception of L1 and L5. The GT-100 can also deliver programmable frequency clock outputs.
- GNSS (Timing, Automotive/Industrial)
Features
Multi-GNSS, Concurrent reception of GPS and GLONASS
- Improved of robustness thanks to concurrent reception of GPS and GLONASS signals
- Supports concurrent GPS, GLONASS, SBAS and QZSS.
Simultaneous output of time pulse (1PPS) and low jitter clock (configurable, 4 kHz to 40 MHz) synchronized with the 1PPS
Enable to output accurate and robust UTC time and 1PPS synchronized with UTC time
- 1PPS stability: 15 nsec (1σ)
Single satellite tracking capable operations (except Navigation Mode)
Detect/Disable low integrity satellites (TRAIM function)
- Suitable for infrastructure development which needs high integrity.
Improved Noise Tolerance
Reduces effects of internal and external noise
Embedded Flash ROM
Suitable for long-term use backed by FURUNO’s continuous support and function enhancement
Enhance performance in combination with recommended antenna

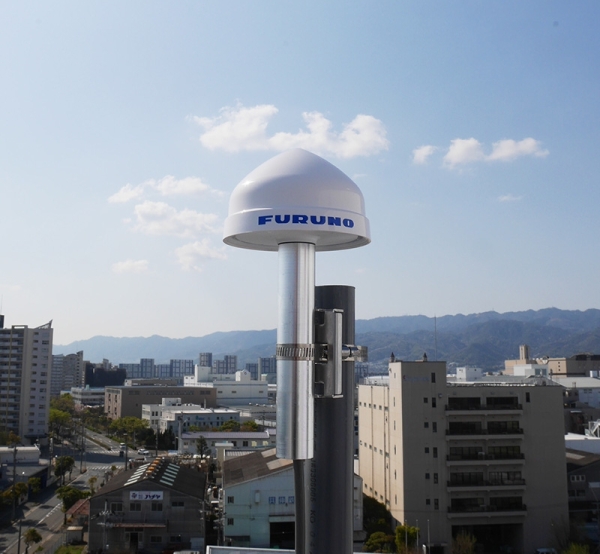

AU-300 Multi-GNSS Timing Antenna delivers both high stability and high robustness.
Specifications
General
GPS L1 C/A, GLONASS L1OF, QZSS L1 C/A, SBAS L1 C/A
26 channels (GPS, GLONASS, QZSS, SBAS)
1Hz
GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm
GLONASS
Tracking: -157 dBm
Hot Start: -157 dBm
Warm Start: -143 dBm
Cold Start: -143 dBm
Reacquisition: -157 dBm
*Measurement platform with recommended active antenna
GPS:2.5m(CEP)
GPS+SBAS:2.0m(CEP)
GPS+SBAS+GLONASS:2.0m(CEP)
*Measurement platform with recommended active antenna
15ns(1σ)
4 KHz to 40 MHz
Hot Start: <5 sec (@-130 dBm)
Warm Start: 35 sec (@-130 dBm)
Cold Start: 35 sec (@-130 dBm)
*Measurement platform with recommended active antenna
3.3VDC
Acquisition Mode: 62.5 mA
1.4 to 3.6VDC / 9 μA (Typ)
-40°C to +85°C
-40°C to +85°C
24Pin LCC (Leadless Chip Carrier)
12.2mm×16.0mm×2.8mm
eSIP (NMEA 0183 Standard Ver 4.10)
M12 Binary
UART, Time Pulse (1PPS), Clock
Available
Available

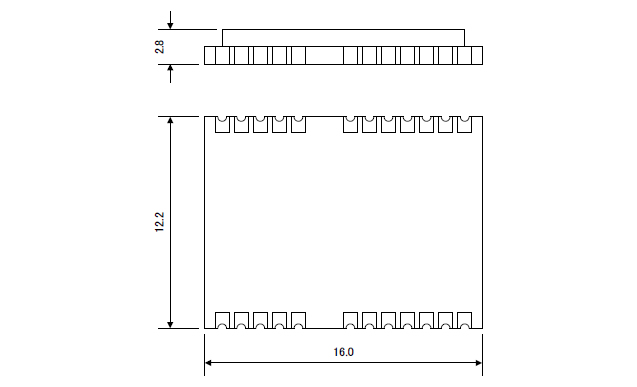

Drawing

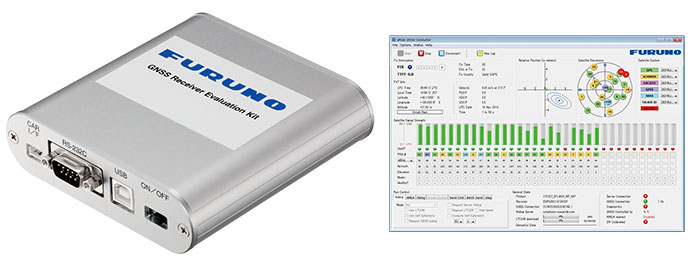

Evaluation Kit
GT-87 Evaluation Kit is available to evaluate the performance of GT-87.
The Evaluation Kit can supply power and communicate with USB interface.
5VDC Power supply through USB bus power
Serial communication through USB
1PPS output from the SMA connectors
SMA antenna connection
Outer size is (w) 110mm x (D) 112mm x (H) 30mm
Weight is about 260g
Accessories are USB cable, GPS-GLONASS Antenna and CD ROM containing the Communication Software, the USB driver and the documentations
Quote Request
This is a quote form only for GNSS receivers for time synchronization.
For other contents, please contact us using the respective inquiry form.
Downloads
| Name | Last update |
|---|---|
| Aug 23, 2017 | |
| Jan 7, 2019 | |
| Aug 21, 2018 | |
| Apr 9, 2019 |
| Name | Remarks |
|---|---|
|
【System requirements】 |
Inquiries about GNSS Products
- Specifications subject to change without notice.
