- Ultrasound Bone Densitometer
Ultrasound Bone Densitometer
Model
CM-200
- Discontinued Products
Compact, fast measurement and high performance. Accurate result by Temperature Compensation feature.
CM-200 is a compact, bone densitometer using ultrasound to measure speed of sound (SOS) in the heel. Color LCD and functional keys guides you for easy operation. Also, temperature compensation provides accurate results. The result is printed out with graph format chart from a built-in printer. Suitable for screening for osteoporosis and group health checks.
- Healthcare
Features
Safe and speedy measurement
Precise measurement
Ultra-compact and ultra-light weight
Easy to view color LCD
Temperature compensation function
Height adjustable foot plate(5 steps)

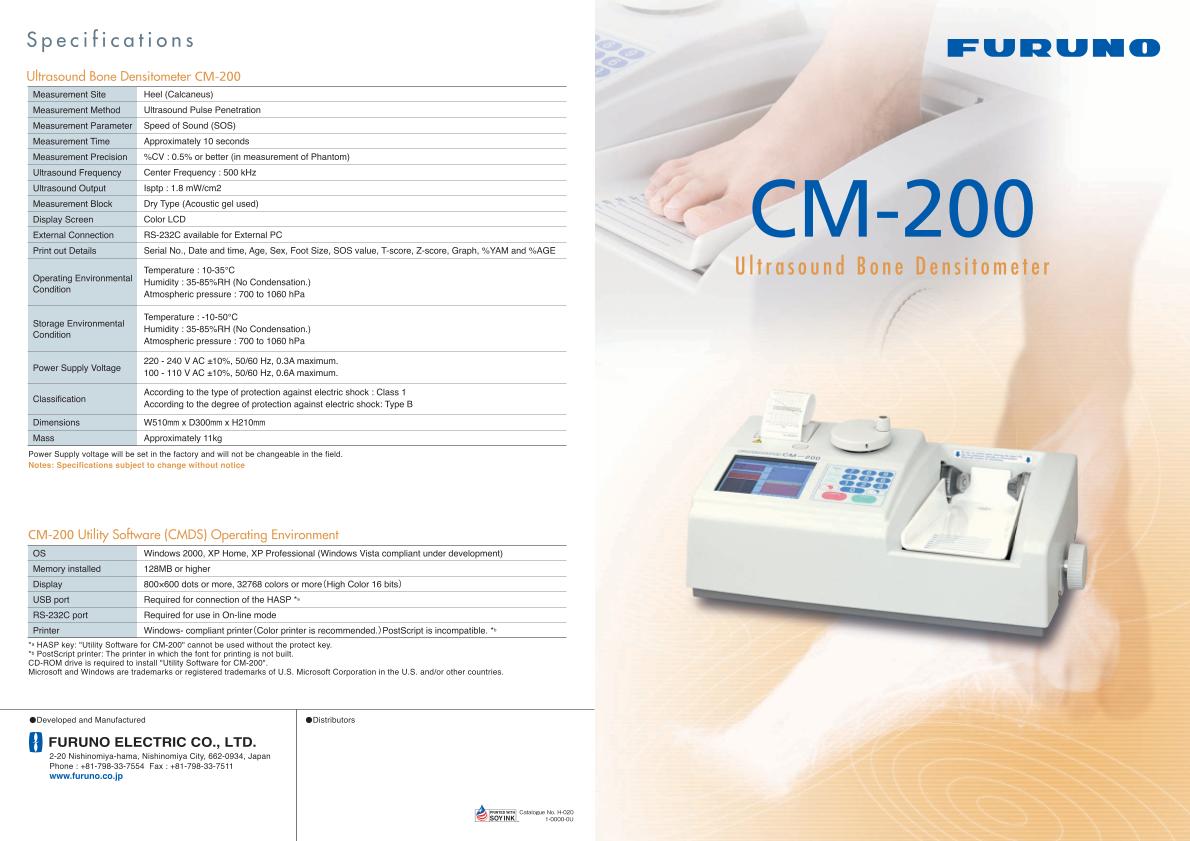

Specifications
General
Measurement Site
Calcaneus (Heel bone)
Measurement Method
Ultrasound pulse penetration
Measuring Parameter
Speed of sound (SOS)
Measurement Time
Approx. 10 seconds
Measurement Precision
% CV 0.5 % or better (in test cases measurement)
Ultrasound frequency
Center frequency 500 kHz
Measurement Type
Dry type (acoustic gel)
Operating Condition
Temperature: 10 to 35 °C
Humidity: 35 to 85 % RH (non condensing)
Supply Voltage
AC 220-240 V, 50 / 60 Hz, 0.3 A (max)
Dimensions
510 mm (W) x 300 mm (D) x 210 mm (H)
Weight
Approx. 11 kg
Downloads
Inquiries about Healthcare Products
- Specifications subject to change without notice.
