• AIS

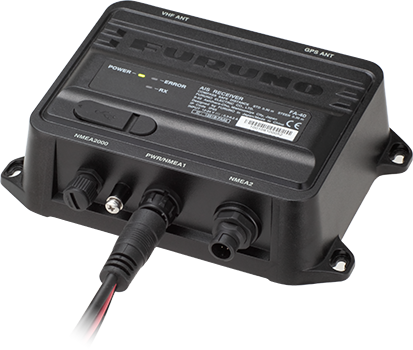

AIS RECEIVER

Model FA-40

The FA-40 delivers "Real-Time" AIS information to navigation systems providing critical collision avoidance information in all weather conditions

Acquisition and tracking of traffic around your vessel is absolutely necessary for safe and efficient navigation. FURUNO’s FA-40 AIS Receiver provides navigational data about other AIS-equipped vessels, increasing your situational awareness and allowing you to navigate more safely.

  • Fishing Vessels、Recreational Boats

Features

Enhances safe navigation by exchanging critical navigation information from AIS-equipped vessels nearby

Greatly improves the level of the situational awareness even in fog, darkness or congested waterways

Flexible integration with various AIS compatible radar and chart plotters

Optional GPS antenna can be connected to receive GPS information

Initial setup can be done through the NMEA2000 network (TZT2/TZT3)

Receives both Class-A and Class-B AIS information

Specifications

General

Standards

IEC 60945 Ed.4+CORR.1,
IMO MSC.140 (76)
ITU-R M.1371-5, EN 303 413 V1.1.1 EN 301 843-1 V2.2.1
IEC 62368-1 Ed.3

RX Frequency

156.025MHz～162.025MHz

Channel Spacing

25 kHz

Waterproofing

Antenna Unit: IP56
Other Units: IP55

Power Supply

12-24 VDC, 0.3-0.2 A

Size

177(W) x55(H) x158(D) (mm)

Weight

0.45kg (1lbs)

Equipment List

Standard

AIS Receiver Unit
Cable Assembly

PWR/NMEA1/SILENT cable (1 pcs); 2 m
NMEA2000 cable (1 pcs); 2 m
Spare tube fuse (SA, 2pcs)

Accessories

AIS Setting Tool (CD-ROM)

Option

GPS Antenna

GPA-017
GPA-017S
GPA-C01

Drawing

Interconnection Diagram

Downloads

FA-40/70 Brochure

FA-40/70 Brochure
(Last update: Mar 23, 2023)

Name Last update
Dec 6, 2024
