- Echo Sounder

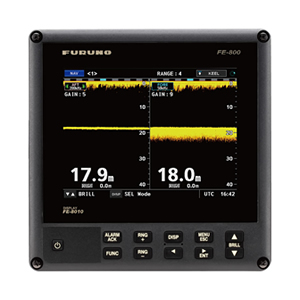

Model FE-800
- Merchant Marine
Features
Compliant with IACS UR E27*.
- For IACS UR E27, click here.

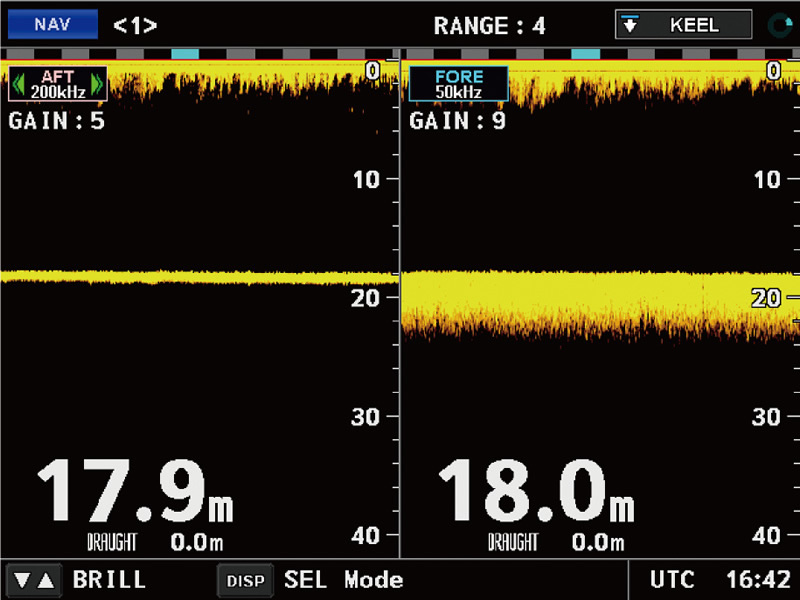

Dual frequency display(50/200 kHz)
The depth at the FORE and AFT positions can be displayed simultaneously.
- When interfaced with two transducers
A variety of display modes available: NAV, OS DATA and HISTORY
High contrast 8.4" LCD
When interfaced with FURUNO remote display RD-20/50, depth information can be observed at a remote location
Optional printer interface available for printing out echogram

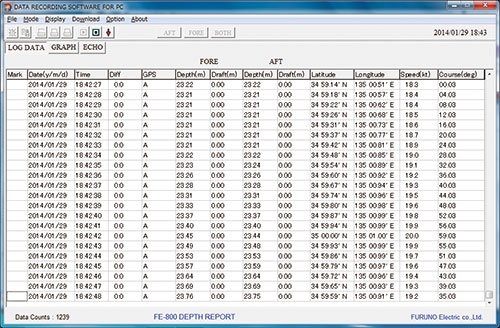

Connecting a PC with the optional data recording software allows you to store, compile and print out the past data of the echogram via PC
BAM (Bridge Alert Management) ready*
Meets the specific requirements for alerts and interconnection with Bridge Alert Management in IMO MSC.302 (87)
- BAM capability is to be implemented as software update after the product release in early 2015.
Depth data for the past 24 hours is storable in the internal memory
For the amount of data for storage and playback on the FE-800, please refer to “HISTORY” on the right page. With the optional PC software, the sounding information can be stored and played back for 24 hours, when the recording interval is set at 5 sec.

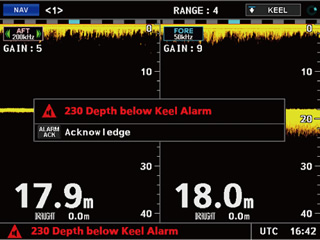

Visual and audible alerts
The FE-800 generates alerts when the water depth below transducer is shallower than a preset depth. When the seabed is lost due to the lowered power supply or out of range scale, an alert is generated.
Modes
NAV Mode

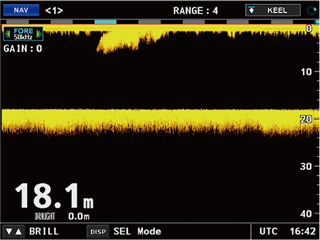

Displays the depth numerically and graphically.
Single frequency display (FORE or AFT) »

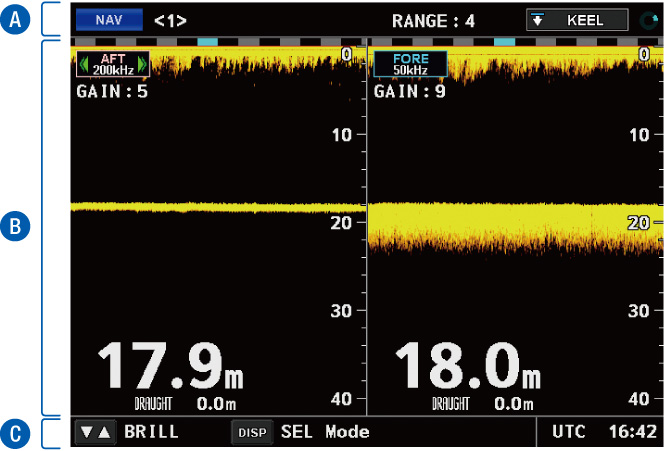

A. Current range setting, reference point for the depth reading (Transducer/Surface/Keel) as well as currently selected mode are displayed.
B. This area shows the information specific to the display mode currently selected. Please refer to each of the display modes for details.
C. Guide to currently available actions is displayed. Under an alert situation, the information about the most imminent alert is displayed.
OS DATA

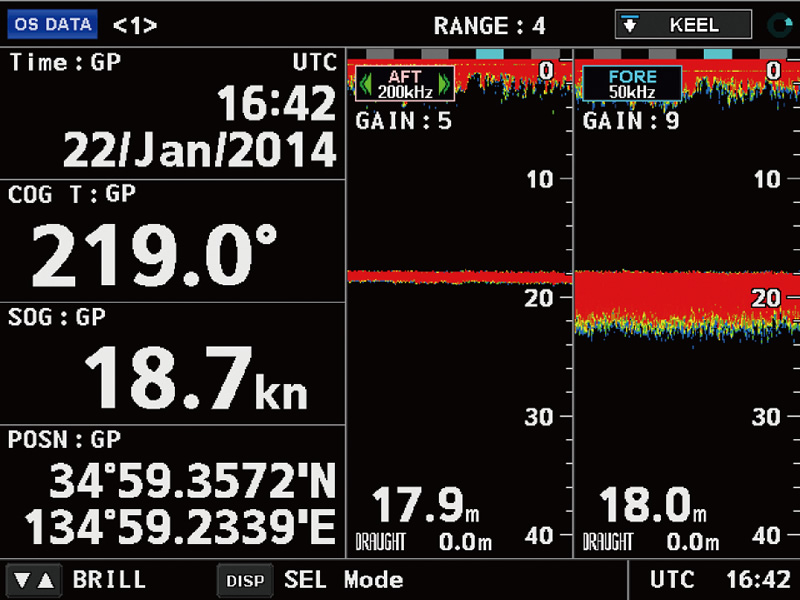

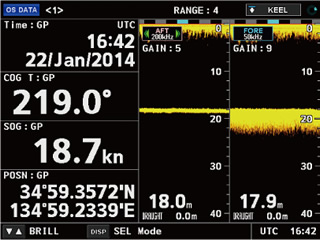

Displays Own Ship Data (OS DATA)*
- only available if the FE-800 is connected to an external EPFS (Electronic Position-Fixing System), such as a GPS navigator.
HISTORY

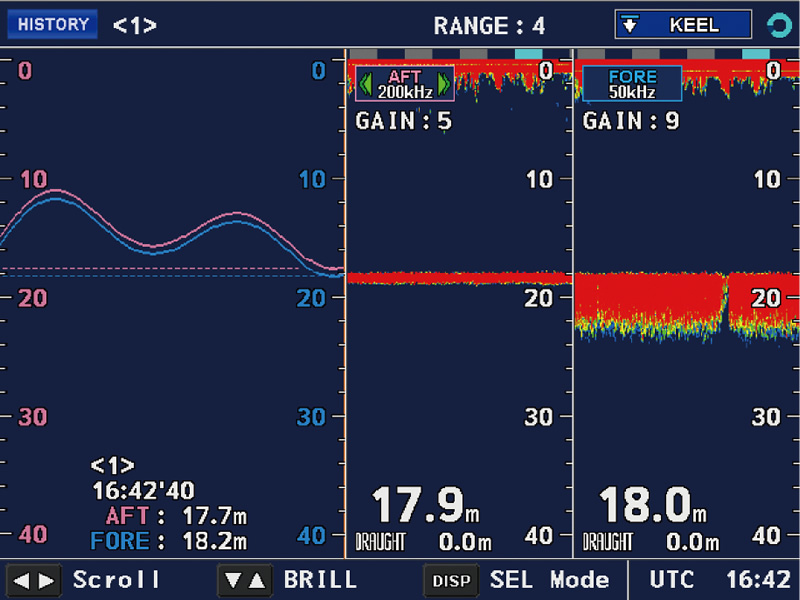

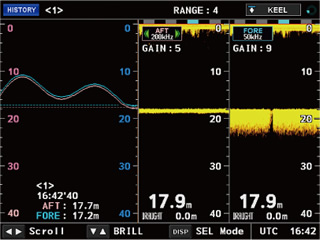

Displays a combination of Contour and Strata echo readings taken.
Recording interval setting | Amount of data for storage and playback |
|---|---|
5 sec | 1 h |
1 min | 12 h |
2 min | 24 h |
LOGBOOK

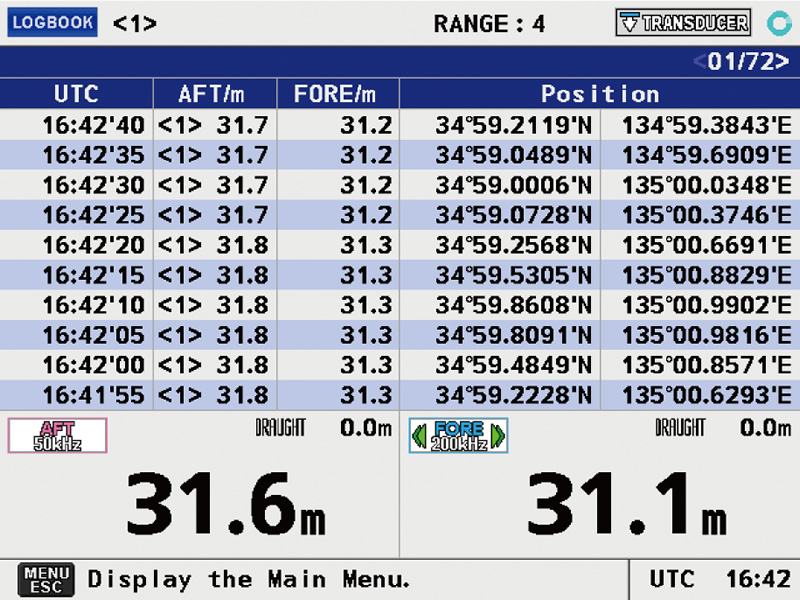

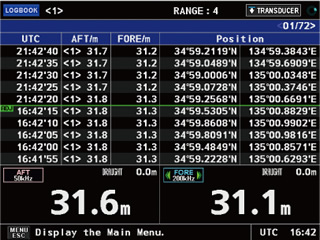

Displays the stored time, depth and own ship position. The logbook is capable of storing data for up to 720 log entries.

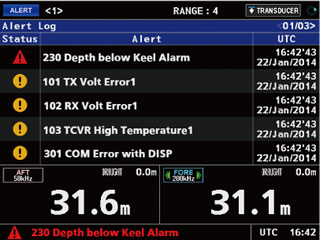

Alert Log List
Displays the alert history (containing up to 100 alerts).
Color Presentation
Background: Black
Echo: Amber
Background: Black
Echo: Red
Background: Blue
Echo: Red
Background: White
Text: Black
Optional printer and PC software to utilize the stored data

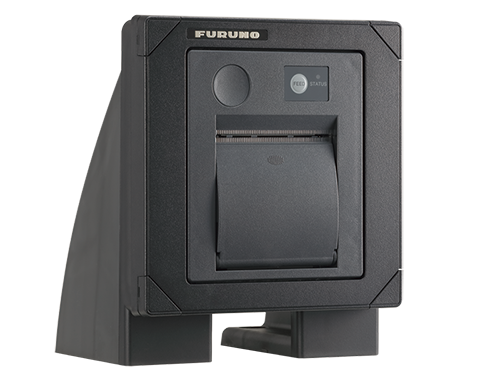

Printer PP-900
The past data can be stored on a PC with the optional software.
Also, printout function of the echogram is available via the optional printer PP-900.
PC software

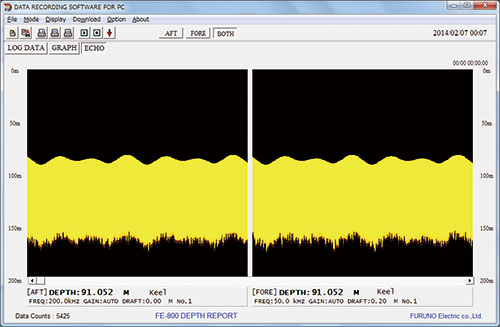

Echo mode

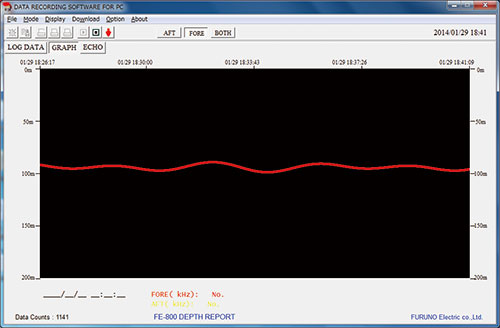

Graph mode
Log mode
Downloads
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
