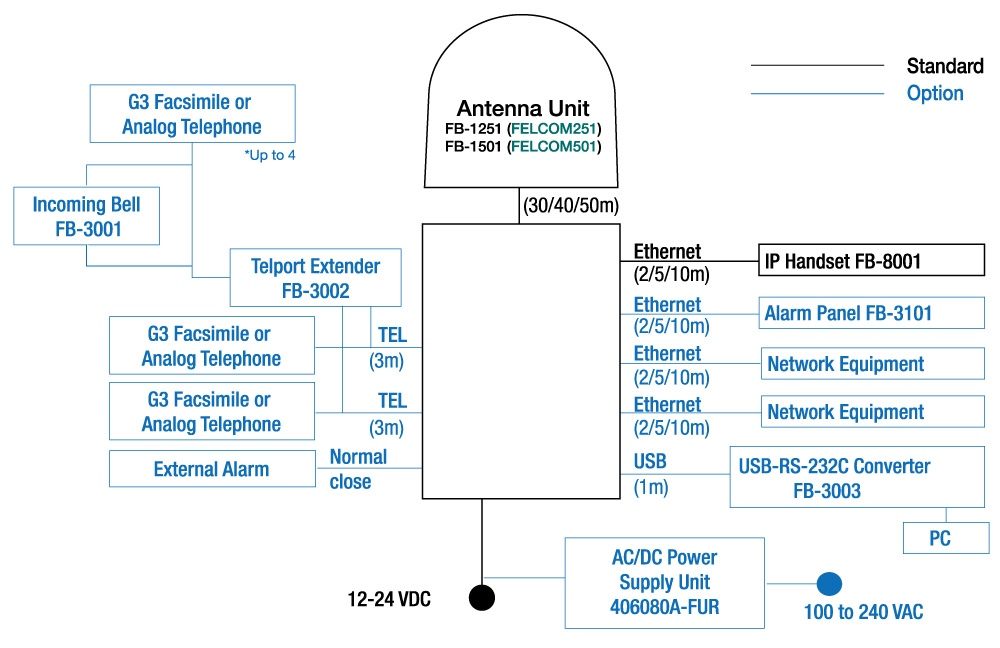

System Configuration

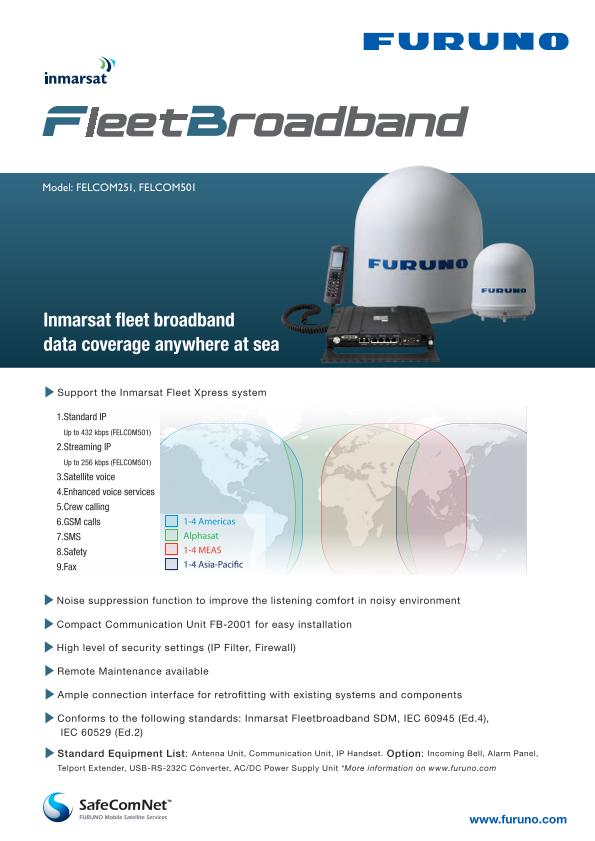

Downloads
Contact

Overview

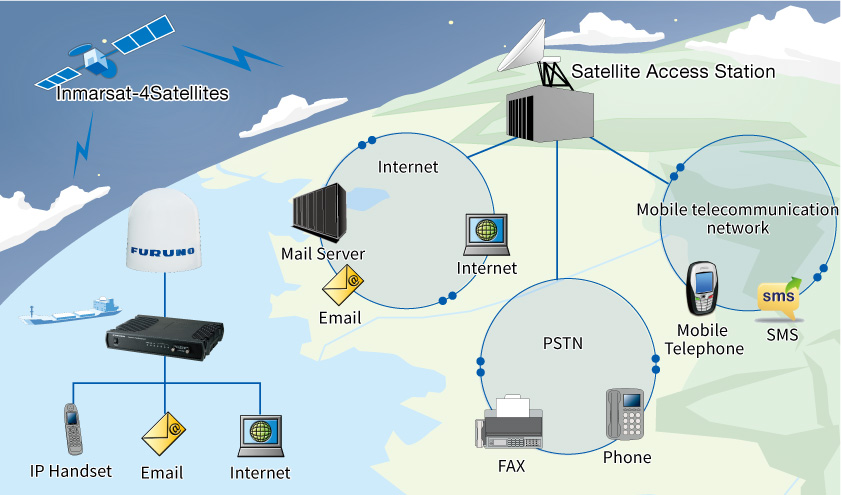

System Overview of FleetBroadband

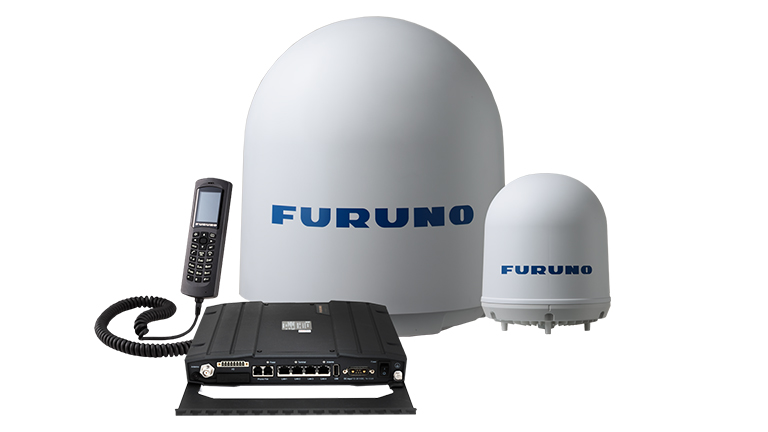

FELCOM251 and FELCOM501 are FURUNO’s latest Inmarsat FleetBroadband terminals, which delivers ship-to-shore/ ship-to-ship broadband communication of up to 432 kbps, anywhere at sea, by utilising the inmarsat Fleet Xpress system coverage. (coverage map below.)

In addition to data communication services (Standard IP of up to 432 kbps). FleetBroadBand allows the users to make use of ISDN data service* as well as FAX communication.

FELCOM251 and FELCOM501 will bring cost-effective broadband communication onboard the vessels for a variety of needs, for both operational and social purposes, including calling their friends and family back home while at sea.

FELCOM501 only

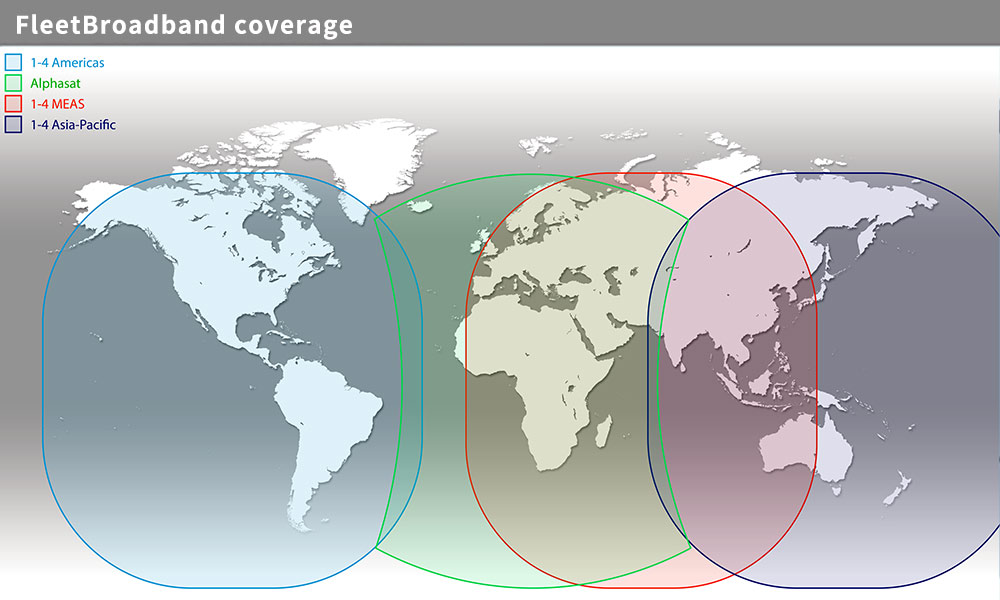

FleetBroadband coverage

I4 satellite F1 PAC-W 143.5E: Covering Oceania, Western Pacific and South and East Asia.
I4 satellite F2 IND-W 25E: Covering Western Asia, Africa and Eastern Atlantic.
I4 satellite F3 PAC-E 98W: Covering Western Atlantic, Eastern Pacific and Americas.

Features

Noise suppression function to improve the listening comfort in noisy environment

Compact Communication Unit FB-2001 for easy installation

High level of security settings (IP Filter, Firewall)

Remote Maintenance available

Ample connection interface for retrofitting with existing systems and components

Conforms to the following standards: Inmarsat Fleetbroadband SDM, IEC 60945 (Ed.4),
IEC 60529 (Ed.2)

Standard Equipment List: Antenna Unit, Communication Unit, IP Handset (Option)

Incoming Bell, Alarm Panel,Telport Extender, USB-RS-232C Converter, AC/DC Power Supply Unit *More information on www.furuno.com

Solution

With its simultaneous voice and data capability, FELCOM251 and FELCOM501 can support an extensive range of user applications. All tasks can be conducted all at the same time through a single terminal. N.B., Certain network devices must be arranged locally, in order for you to make use of some of the applications.

Social communication and increased welfare for crewmembers.

Crewmembers are now able to make private phone calls or send SMS using their SIM card to their friends and families back home. They can also browse the web to read news from home, or any other activity connecting them to the land.

Educational opportunities for crewmembers using distance learning.

Using their off-duty time in a more productive manner has become very popular amongst navigators. VSAT allows crewmembers to attend off-campus distance learning courses through IP applications such as.

Troubleshooting in case of equipment failure.

In case of failure of engine or other onboard equipment, chief engineers onboard can set up live, on-the-spot remote condition-review and troubleshooting sessions with service engineers from various manufacturers onshore. A reliable high bandwidth connection is essential for enabling these functions, and FleetBroadband provides a perfect perfect.

Specifications

Model Name		FELCOM251	FELCOM501
General
Transmitting Frequency		1626.5 - 1660.5 MHz、1668.0 - 1675.0 MHz
Receiving Frequency		1518.0 - 1559.0 MHz
Interface
LAN		4 ports, ethernet 100Base-TX, RJ-45 (PoE)
Analog Telephone/Telefax		2 ports (4 ports with optional adapter)
USB		1 port, USB2.0 (RS-232C conversion with optional adapter)
Alarm output		1 port, contact closure (normal close), External relay
Sim card		1 Slot
Communication services
Voice		4 kbps AMBE+2 or ISDN 3.1 kHz audio
Data	ISDN (UDI/RDI)	-	64 kbps
	Standard IP(BEST effort)	MAX 284 kbps	MAX 432 kbps
	Streaming IP(Guaranteed rates)	32、64、128 kbps	32、64、128、256 kbps
Short message		Up to 1120 characters
Facsimile		Group 3 Facsimile via 3.1 kHz audio
Environmental conditions
Temperature	Antenna Unit	-25°C ~ +55°C(Storage: -40°C~+85°C)
	Communication Unit	-25 °C ～ +55 °C
Protection	Antenna Unit	IPX6
	Communication Unit	IP31
	IP Handset	IP56 (Cradle: IP22)
Power Supply
Communication Unit		12-24 VDC: 14/5.5 A
Power Supply Unit		100-240 VAC, 1 Phase, 50-60 Hz

Equipment list

Model Name	FELCOM251	FELCOM501
Standard
Antenna Unit	FB-1251	FB-1501
Communication Unit	FB-2001
IP Handset	FB-8001
Option
Incoming Bell	FB-3001
Alarm Panel	FB-3101
Telport Extender	FB-3002
USB-RS-232C Converter	FB-3003
AC/DC Power Supply Unit	406080A-FUR-001
