- Speed Log
Model GS-100
- Merchant Marine
Features
Compliant with IACS UR E27*.
- For IACS UR E27, click here.
Offers transverse speed at bow and stern position, as well as longitudinal speed
Provides transverse speed at any position of the ship utilizing the built-in satellite compass
Delivers roll, pitch and angular information for navigation equipment such as Radar, ECDIS and AIS.
Accurate information of ship's attitude contributes to safe and efficient navigation.
Fully complies with SDME (Speed and Distance Measuring Device) standard (IEC 61023) and THD (Transmitting Heading Device) standard (ISO 22090-3)

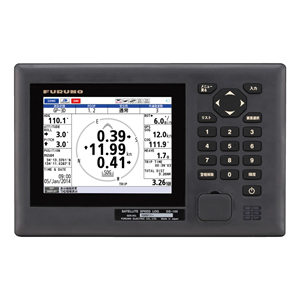

5.7" color LCD

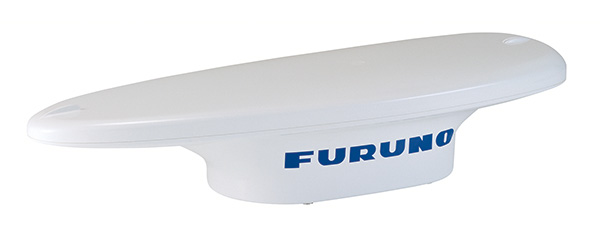

Compact antenna unit facilitates ease of installation
Simplified menu operation
The operator can navigate through the menu by pressing the cursor or pressing the numeric key associated with the menu items.
Speed accuracy ±0.02 kn

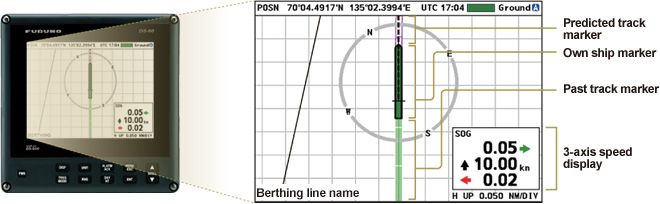

Optional 8.4" color LCD (for wing installation)
The measurement capability at dead slow speed is vital for precise docking of large ships.
The GS-100 offers speed accuracy of ±0.02 kn, which is of great help during berthing operations.
Also, an optional 8.4” color LCD for a wing workstation installation gives high-legibility, real-time information in both graphics and alphanumerics.
Display Modes

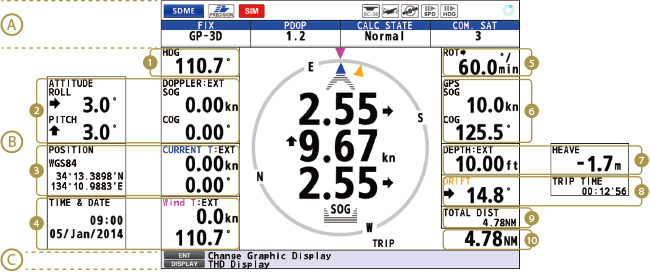

Navigation Display
A. Current selected mode (SDME or THD), integrity status and common satellite number, etc. are displayed.
B. This area shows the information specific to the display mode currently selected.
Please refer to each of the display modes for details.
C. Guide to currently available actions is displayed.
Under an alert situation, the information about the most imminent alert is displayed.
- Heading
- Roll/Pitch or Doppler measured SOG/COG*
- Position or Current speed/direction*
- Time & Date or Wind speed/direction*
- ROT
- GNSS measured SOG/COG
- Heave or Depth*
- Trip time or Drift angle*
- Total distance
- Trip distance

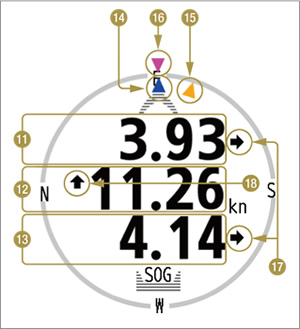

- Transverse speed at bow position
- Longitudinal speed
- Transverse speed at stern
- Current direction*
- Drift angle*
- Wind angle*
- Bow/Stern velocity ←→
- Heading velocity ↑↓
- displayed with connection of appropriate external sensors
Text screen

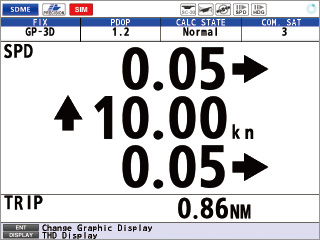

Speed/Trip

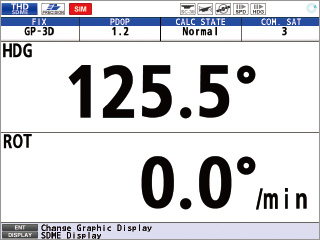

Heading/ROT
