Timing GPS Receiver Module

Model GT-86

Old Products

High sensitivity and high accuracy timing GPS module

The GT-86 is the high-sensitivity, high-accuracy timing GPS receiver.
The GT-86 supports TRAIM and Various position modes, allowing it to outputs accurate and robust 1PPS synchronized with UTC time.

New Product:GT-88 (Extremely high stability of 4.5ns (1sigma) using a single band receiver)

GNSS (Timing, Automotive/Industrial)

Downloads

Features
Specifications
Drawing
Evaluation Kit
Downloads
Contact

Features

Supports GPS, QZSS and SBAS

In addition to high position accuracy, GV-86 achieves superior performance as regular GPS Receiver Modules such as fast TTFF, highly improved Noise Tolerance
Galileo Ready. The software can be upgraded to support concurrent Multi-GNSS reception with GPS, Galileo, QZSS and SBAS

Simultaneous output of time pulse (1PPS) and low jitter clock (configurable, 4 kHz to 40 MHz) synchronized with the 1PPS

Enable to output accurate and robust UTC time and 1PPS synchronized with UTC time

1PPS stability: 15 nsec (1σ)

Single satellite tracking capable operations (except Navigation Mode)

Detect/Disable low integrity satellites (TRAIM function)

Suitable for infrastructure development which needs high integrity.

Improved Noise Tolerance

Reduces effects of internal and external noise

Embedded Flash ROM

Suitable for long-term use backed by FURUNO’s continuous support and function enhancement

Enhance performance in combination with recommended antenna

Multi-GNSS antenna AU-217 receives GPS signal (L1 band) and GLONASS signal (G1 band), and has highly noise resistant as well as highly environmental resistant equivalent to IP67. Multi-GNSS antenna AU-217 is suitable for use with Furuno timing Multi-GNSS modules and disciplined oscillators.

Here's more on Multi-GNSS antenna AU-217

Specifications

General

GNSS Reception Capability

GPS L1 C/A, QZSS L1 C/A, SBAS L1 C/A
(Ready): Galileo E1B/E1C, QZSS L1S

GNSS Reception

16 channels (GPS, QZSS, SBAS)

Update Rate

1Hz

Sensitivity

GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

*Measurement platform with recommended active antenna

Position Accuracy (Horizontal)

GPS: 2.5m(CEP)
GPS+SBAS: 2.0m(CEP)

*Measurement platform with recommended active antenna

1PPS Stability

15ns(1σ)

Clock Output

4 KHz to 40 MHz

TTFF (Typical)

Hot Start: <5 sec (@-130 dBm)
Warm Start: 35 sec (@-130 dBm)
Cold Start: 35 sec (@-130 dBm)

*Measurement platform with recommended active antenna

Supply Voltage

3.3VDC

Current Consumption

Acquisition Mode: 58.5 mA

Backup Supply

1.4 to 3.6VDC / 9 μA (Typ)

Operating Temperature

-40°C to +85°C

Storage Temperature

-40°C to +85°C

Package

24Pin LCC (Leadless Chip Carrier)
12.2mm×16.0mm×2.8mm

Protocol

eSIP (NMEA 0183 Standard Ver 4.10)

Interfaces

UART, Time Pulse (1PPS), Clock

Anti-Jamming

Available

Multipath Mitigation

Available

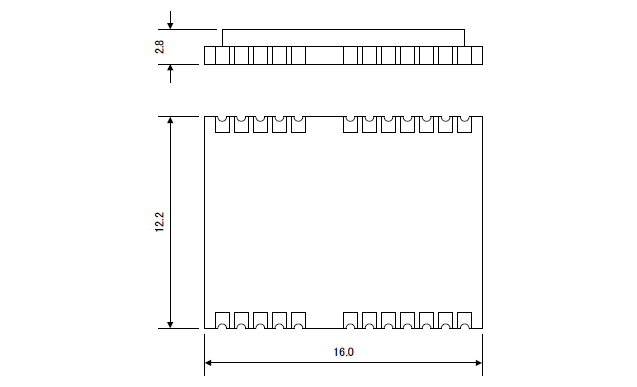

Drawing

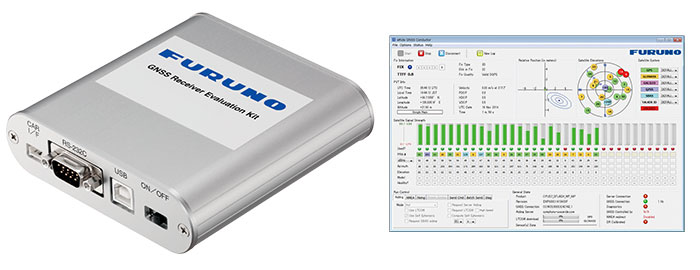

Evaluation Kit

GT-86 Evaluation Kit is available to evaluate the performance of GT-86.
The Evaluation Kit can supply power and communicate with USB interface.

FEATURES

5VDC Power supply through USB bus power
Serial communication through USB
1PPS output from the SMA connectors
SMA antenna connection
Outer size is (w) 110mm x (D) 112mm x (H) 30mm
Weight is about 260g
Accessories are USB cable, GPS Antenna and CD ROM containing the Communication Software, the USB driver and the documentations
