Model GT-88

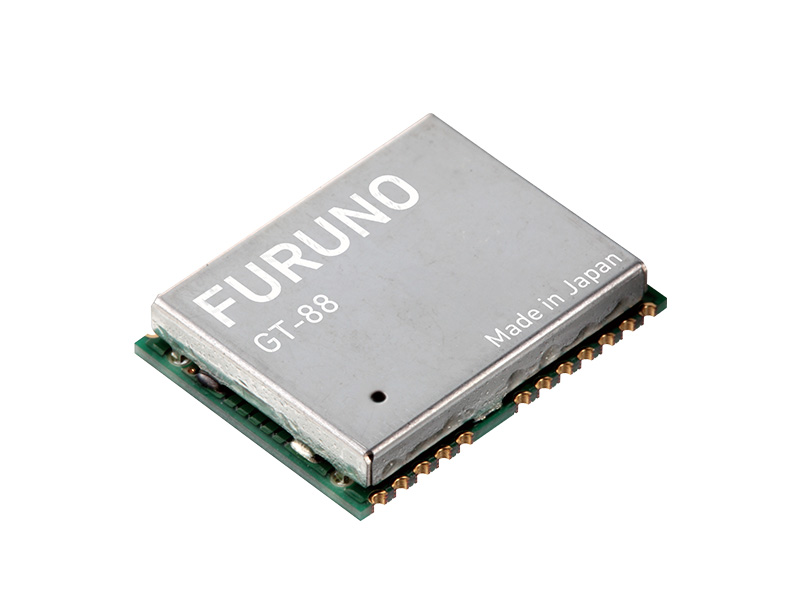

The GT-88 is the high-stability, high-accuracy timing Multi-GNSS receiver.
It incorporates Dynamic Satellite Selection™, which is a new satellite signal selection algorithm developed by NTT. Thanks to that GT-88 permits GNSS antennas to be mounted more freely than ever before including wall mounting and window mounting installations.
New product: High robustness with dual frequency band reception of L1 and L5. The GT-100 can also deliver programmable frequency clock outputs.
- GNSS (Timing, Automotive/Industrial)
Features
Enable to output accurate and robust UTC time and 1PPS synchronized with UTC time
FURUNO technology made it possible to achieve 5G-required performance. 4.5ns (1 sigma) by a single band receiver is obtained. This is achieved by an improved and advanced position estimation algorithm. It optimizes position calculations using several different GNSS satellite constellations. It allows users to achieve 5G-required performance without changing existing single band GNSS antennas.
GNSS antennas can be mounted on walls and windows of tall buildings
The Dynamic Satellite Selection™* minimizes deterioration of time synchronization performance by choosing only the high quality satellite signals
- a new satellite signal selection algorithm developed by NTT
Suitable for various RF・Broadcasting applications. Designed functions aiming to solve usual troubles on site.

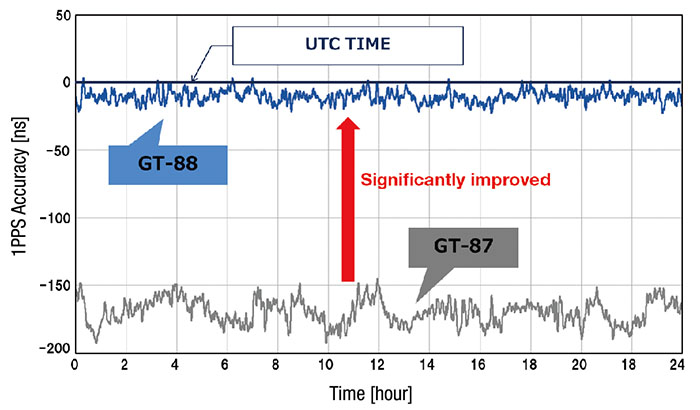

The number of radio stations applied with GNSS time synchronization, ex. PMR, local 5G, and V2X, has been increasing year by year. Especially in urban area, users have to face problems such as urban canyon (signals blocked) and multi-path (signals reflected) etc.
- Multipath in Urban area
- Jamming (interference wave)
- Spoofing
Compliant with G.8272 PRTC-A
- Compliant with TDEV/MTIE
Concurrent reception of GPS/GLONASS/Galileo/QZSS/SBAS
Suitable for various communication and broadcasting applications
TRAIM, Single Satellite Tracking, Multipath Mitigation, Anti-Jamming and Anti-Spoofing
Configurable frequency output (10 Hz to 40 MHz)
Enhance performance in combination with recommended antenna

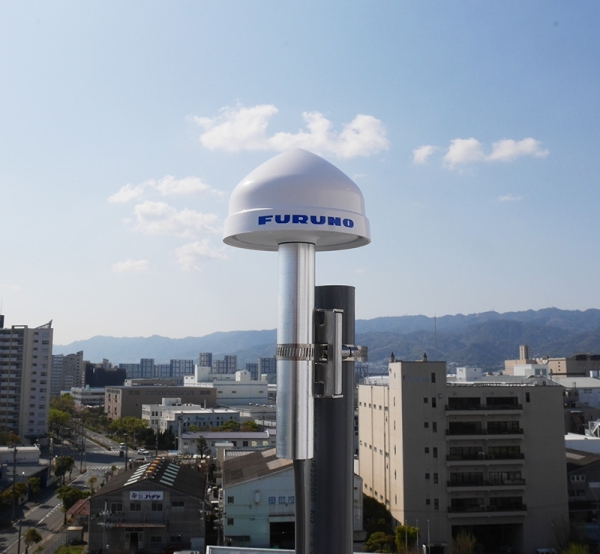

AU-300 Multi-GNSS Timing Antenna delivers both high stability and high robustness.
Specifications
General
GPS L1C/A, GLONASS L1OF, Galileo E1B/E1C, QZSS L1C/A, QZSS L1S, SBAS L1C/A
32 channels
GPS
Tracking: > -162 dBm
Acquisition: > -148 dBm
GLONASS
Tracking: > -158 dBm
Acquisition: > -144 dBm
Galileo
Tracking: > -146 dBm
Acquisition: > -136 dBm
QZSS
Tracking： > -147 dBm
Acquisition： > -131 dBm
*Measurement platform with recommended active antenna
Compliant with G.8272 PRTC-A
*Compliant with TDEV/MTIE
< 4.5 ns (1σ)
*Open sky
< ± 40 ns (vs UTC)
*Open sky
± 1.75 ns
10 Hz to 40 MHz
Hot Start: <5 sec
Cold Start: <35 sec
*Measurement platform with recommended active antenna
3.3 VDC
< 68 mA
*85℃ when tracking
-40°C to +85°C
24Pin LCC（Leadless Chip Carrier）
12.2mm × 16.0mm × 2.8mm
eSIP (NMEA 0183 Standard Ver 4.10)
UART, Time Pulse (1PPS), Clock
Anti-Jamming (8CW), Multipath Mitigation (Dynamic Satellite Selection™), Anti-Spoofing, T-RAIM
Countermeasure for GNSS receiver failure

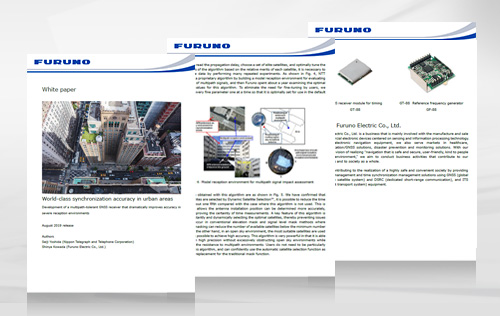

We provide technical white papers for each of the typical failures caused by GNSS receiver. For each failures, our experts in time synchronization explain details about countermeasures on receiver side, using diagrams to show the effectiveness, and how to select products. If you are considering a GNSS receiver for the first time, please take a look.
- High stability with single band receiver
White Paper: High Stability of 4.5ns (1 sigma) using a single band GNSS timing receiver - Multipath in Urban area
White Paper: Industry-leading multipath mitigation in urban canyon environments - Jamming (interference wave)
White Paper: Measures against GNSS jamming (jamming wave) - Spoofing
White Paper: Measures against GNSS spoofing signals - Interruption of GNSS signal (holdover)
White Paper: "Holdover function" as measures against GNSS reception interruptions
The GT-88 doesn't have holdover function. If necessary, please use GF-8802/GF-8803/GF-8804/GF-8805 instead.
