- Radiotelephone

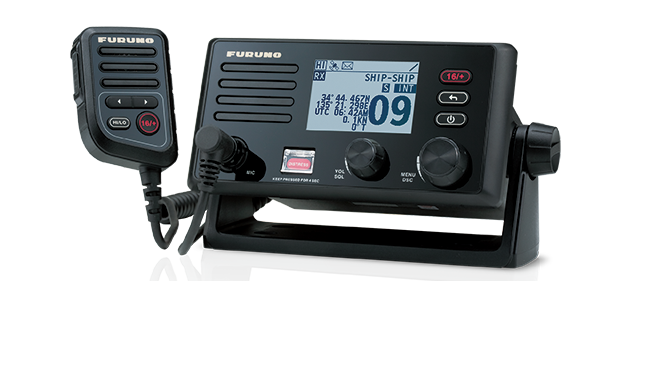

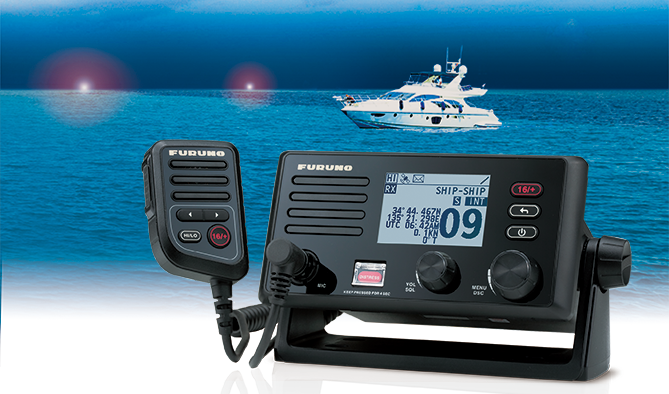

Model FM-4800
VHF Radio, GPS, AIS, Loud Hailer, NMEA2000 and DSC Calling
- Fishing Vessels、Workboats、Recreational Boats
Features
Everything needed for hailing and calling in one unit
Built-in GPS
Built-in High-sensitivity 72 channels GPS with internal antenna which eliminates external GPS antenna and its wiring requirements.
Built-in AIS receiver
When connected to an MFD or Chart Plotter that can read and display AIS data, the built-in AIS receiver will guarantee your safety at sea by providing all the data you need for situational awareness and collision avoidance.
Loud Hailer
15 W PA/Loud Hailer having 8 automatic fog/warning signals and a listen-back capability allowing for two-way communication.
Class D DSC
With Class D DSC (Digital Selective Calling), the FM-4800 allows you to transmit both routine calls and distress calls in case of an emergency.
NMEA2000 Interface
Plug and play NMEA2000 interface allows you to easily connect the FM-4800 to your navigation devices. When connected to the NavNet TZtouch2, DSC calls can be initiated directly from your MFD.
Dual Station

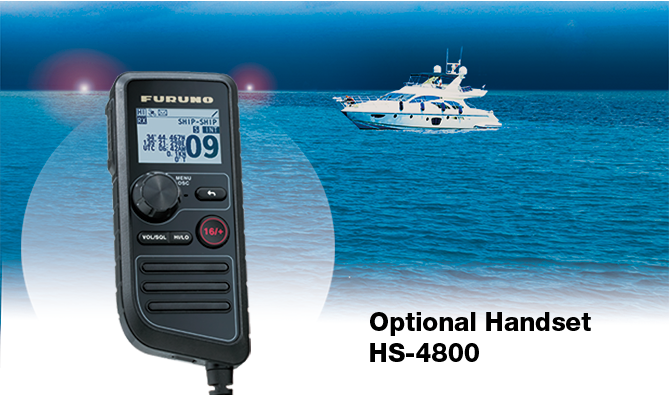

The optional handset HS-4800 supports al the functionality of the FM-4800 and works as a second station. Intercom function is also supported.
25 W/1 W output power
Loud Hailer/ Fog Horn
Dual Station with optional handset
ATIS mode for inland waterways
10 weather channels
Fully waterproof (IP67)
Specifications
General
International, USA and Canada
Within ± 1.5 kHz
Simplex / Semi-duplex
50 ohms
Monochrome, 192 x 128 dot (FM-4800, HS-4800)
Transmitter
156.025 MHz to 162.000MHz
25 W max., 1 W at power reduction
± 5 kHz max
Standby : less than 2nW
Transmit: less than 0.25 μW
16K0G3E (F3E9) Voice, 16K0G2B (F2B) DSC
Receiver
156.025 MHz to 162.0375 MHz
162.550 MHz to 163.275 MHz (Weather Channel in US & Canada only)
± 6 dBμV e.m.f. or less (SINAD 20 dB)
70 dB or more
70 dB or more
DSC
Class D DSC
0 dBμV e.m.f. or less (BER < 1%)
70 dB or more
70 dB or more
AIS Receiver
161.975 MHz (AIS1), 163.025 MHz (AIS2)
-107 dBm or less (PER < 20%)
70 dB or more
70 dB or more
GPS Receiver
1575.42 MHz
72 channels
10 m
120 sec typical
1 sec
Loud Hailer/Fog Horn
30 W max. (4 ohm)
Interface
NMEA0183 2 port (IN: 1, OUT: 1), NMEA2000 (3LEN) 1 port
Input: TM, GGA, GGL, GNS, RMA, RMC
Output: DSC, DSE, GLL, RMC, VDM
Input: 059392/904,060160/416/928,065240,126208,127258,129026,029,044
Output: 059392,060928,126208/464/993/996/998,129025/026/029/038/039/040/041/540/793/794,129795/797/798/801/802/808/809/810
Power Supply
12.0 VDC (-10%, +30%) 5.0 A Max
Environment
-15°C to +55°C
93％ or less a +40°C
IP67 (FM-4800, HS-4800, SP-4800)
Equipment List
Standard
Option
As an external antenna

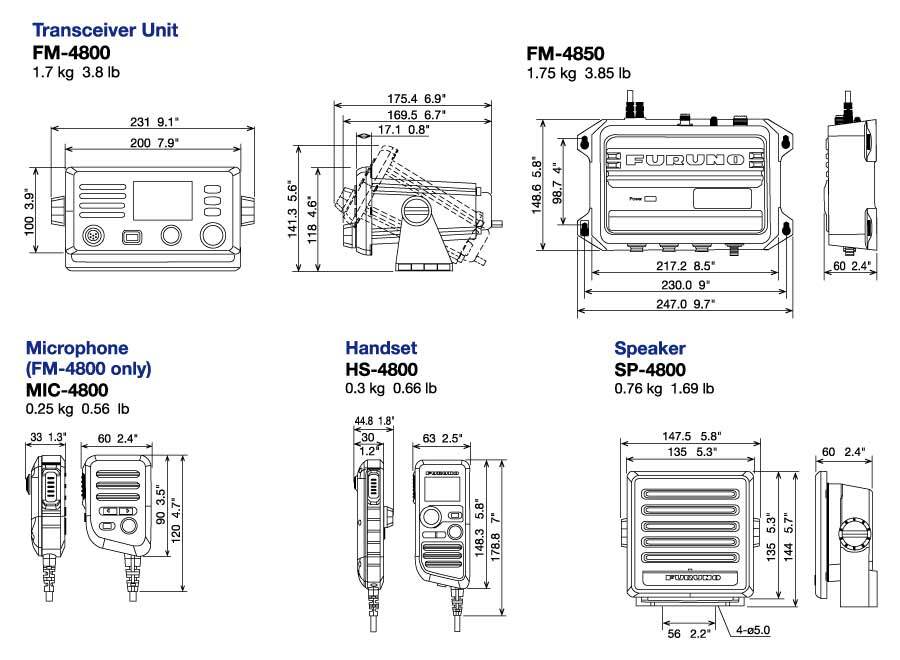

Drawing

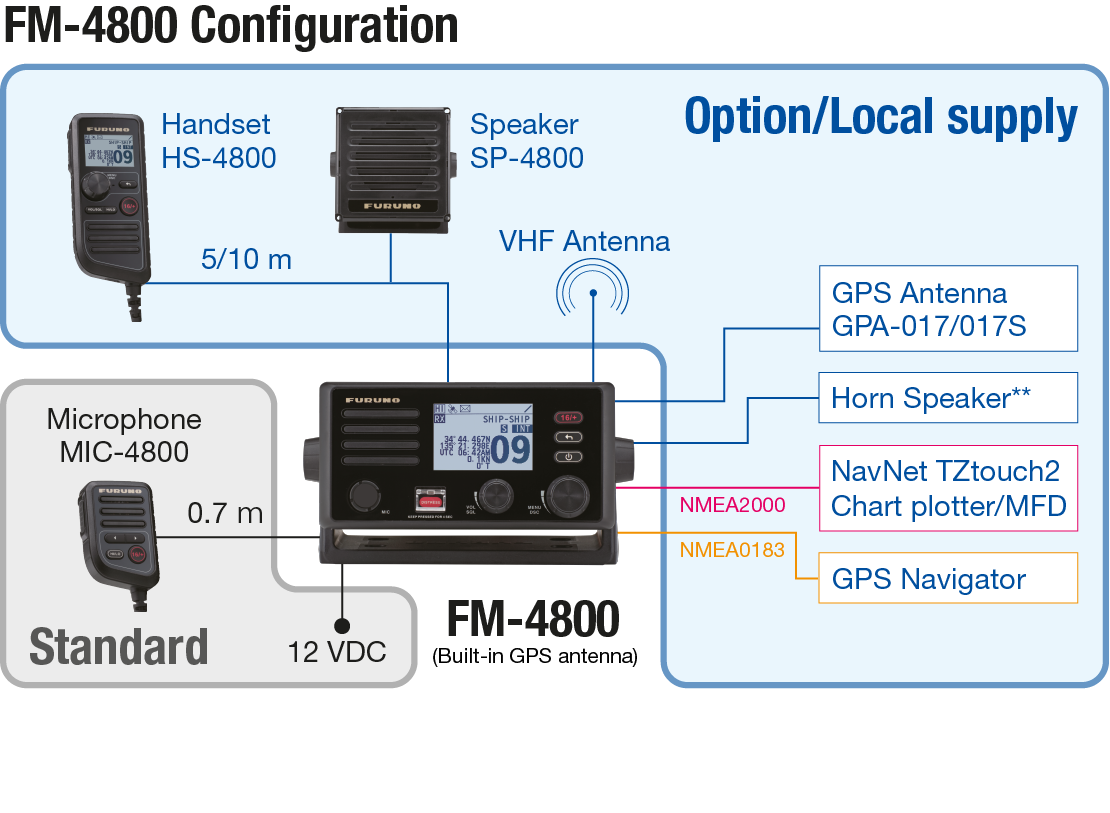

Interconnection Diagram

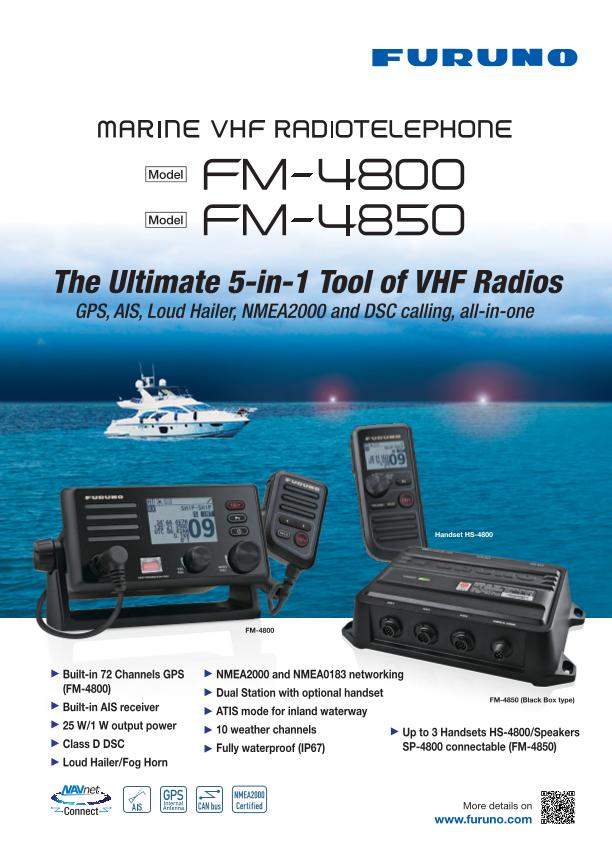

Downloads
| Name | Last update |
|---|---|
| Dec 1, 2025 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
