• Weather Fax

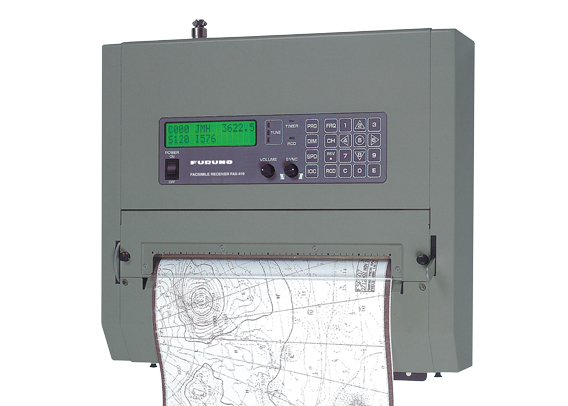

WEATHER FACSIMILE RECEIVER

Model FAX-410

Reliable weather facsimile receiver gathers and generates crucial information under all weather conditions at sea

The FAX-410 is a marine weather facsimile receiver designed to receive and print high quality, high definition weather charts and satellite images, which are transmitted from onshore stations located around the world.

  • Merchant Marine、Fishing Vessels、Workboats

Features

Automatic channel selection by judging the quality of signal reception

All known facsimile channels in 2-25 MHz bands are pre-programmed: 150 channels

Additional memory capacity of 164 user-programmable channels available

Full automatic operation by a built-in schedule timer

Quiet thermal printing due to minimal mechanical components

10" wide thermal recording paper with clear and easy-to-watch weather charts and satellite images in nine gray levels

Specifications

General

Frequency Range

2-25 MHz in 100 Hz steps

Number of Channel

150 pre-programmed channels and 164 channels for memory

Class of Emission

F3C

Power Supply

AC model: 100/115/200/230 VAC
DC model: 12-24 VDC

Equipment List

Standard

RECORDING PAPER F220VP

1 ROLL

STANDARD INSTALLATION MATERIALS AND SPARE PARTS

1 SET

MAIN UNIT FAX-410

1 UNIT

Option

WHIP ANTENNA

2.6 M

MATCHING BOX

ARD-1

RECORDING PAPER (257 MM X 30 M)

F220VP

WHIP ANTENNA FAW-6R2

W/BRACKET

WHIP ANTENNA FAW-6R2A
PRE-AMP UNIT FAX-5

15 M

ANTENNA CABLE EXTENSION KIT

10 M
20 M
30 M
40 M
50 M

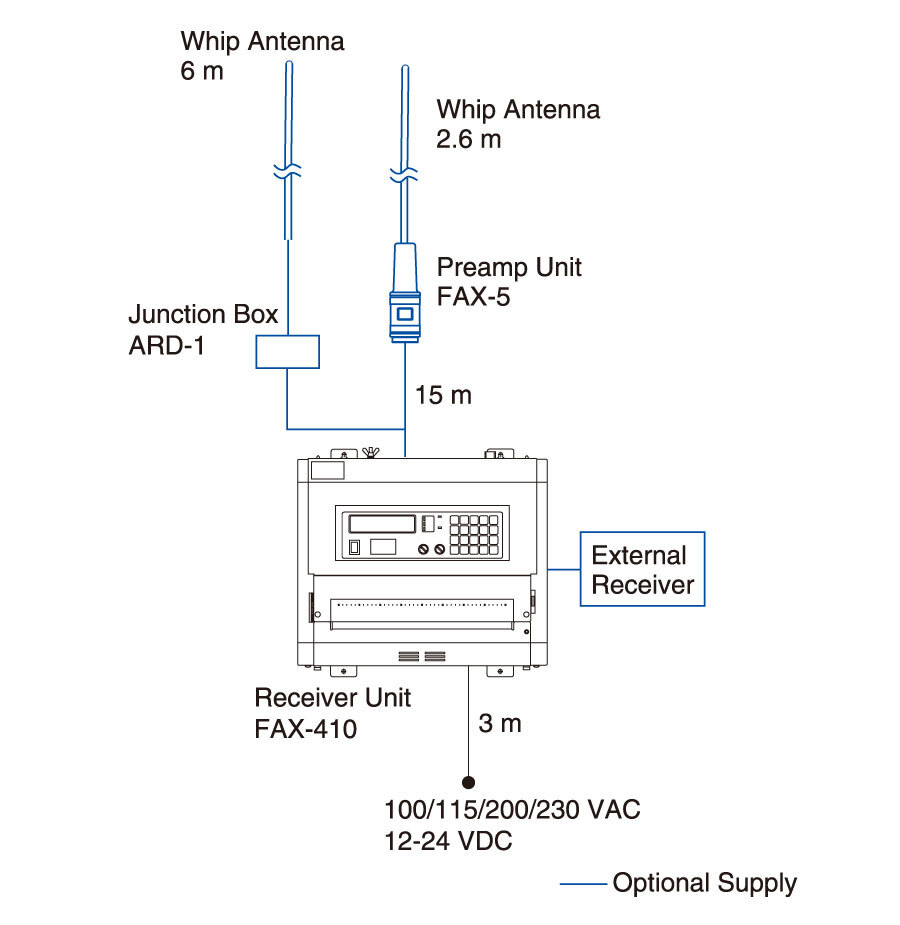

Interconnection Diagram

Downloads

FAX-410 Brochure

FAX-410 Brochure
(Last update: Mar 23, 2023)

Name Last update
Apr 11, 2023
