• Weather Fax

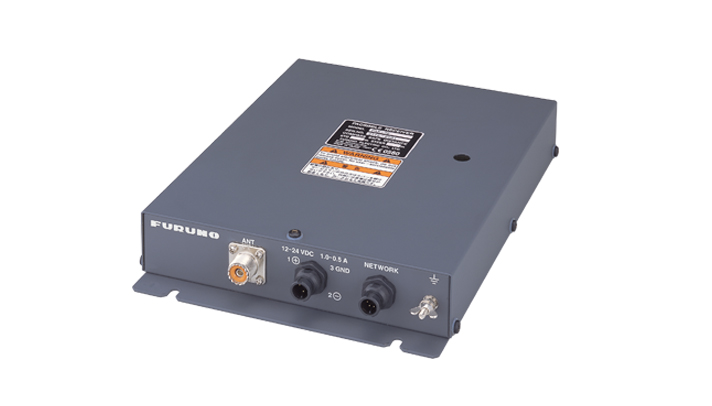

Black Box WEATHER FACSIMILE RECEIVER

Model FAX-30

Cost effective paperless Weather FAX & Navtex

The FURUNO FAX-30 can turn any NavNet display or PC into a weather fax and NAVTEX receiver for obtaining weather forecasts and safety information.

  • Merchant Marine、Recreational Boats

Features

Connection to a NavNet display or PC through an Ethernet

User friendly softkey menu operation on NavNet display

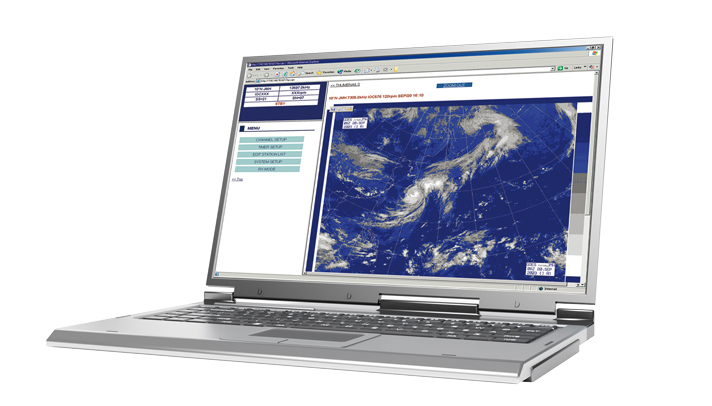

Web navigation using Internet Explorer or Netscape

Print images and messages from generic PC and printer

Storage of maximum 12 images on NavNet display (depending on file size)

Thumbnail view for easy selection of stored images

Noise Rejection for clear image

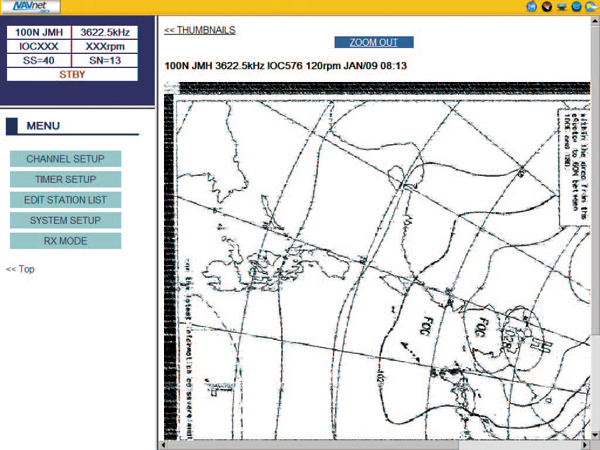

Screenshots

NAVNET 3D FAX

Specifications

General

Frequency Range

FAX: LF 80-160kHz, MF/HF 2-25 MHz
NAVTEX: 490kHz, 518kHz

Number of Channel

1,000 channel

Receiving System

DOUBLE SUPERHETERODYNE

Class of Emission

FAX: F3C, J3C
NAVTEX: F1B

Storage

FAX: 12 PICTURES
NAVTEX: 130 messages

Power Supply

12-24 VDC

Size

300(H) × 217(W) × 48(D)

Weight

2.0 kg

Equipment List

Standard

MAIN UNIT FAX-30
POWER CABLE (3.5 M)

1 PC

NAVNET CABLE (5 M) OR LAN CABLE ASSY

1 PC

INSTALLATION MATERIALS AND SPARE PARTS

1 PC

Option

PRE-AMP UNIT

FAX-5 (15 M)

WHIP ANTENNA

2.6 M

IMAGE PRINTOUT SOFTWARE

FAX-30-APT

LAN CABLE ASSEMBLY

5 M (MJ/RJ)

HUB ADAPTOR CABLE (CROSS)

MJ6R/RJ45

ANTENNA CABLE EXTENSION KIT

10 M
20 M
30 M
40 M
50 M

NAVNET CABLE

MJ-A6SPF0014-010C/050C/100C/200C/300C

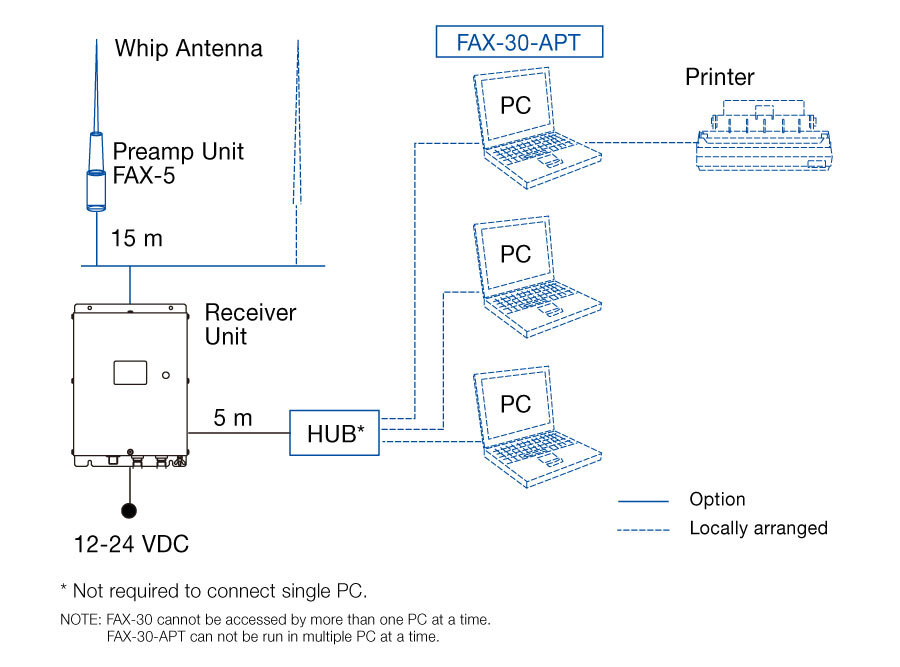

Interconnection Diagram

Downloads

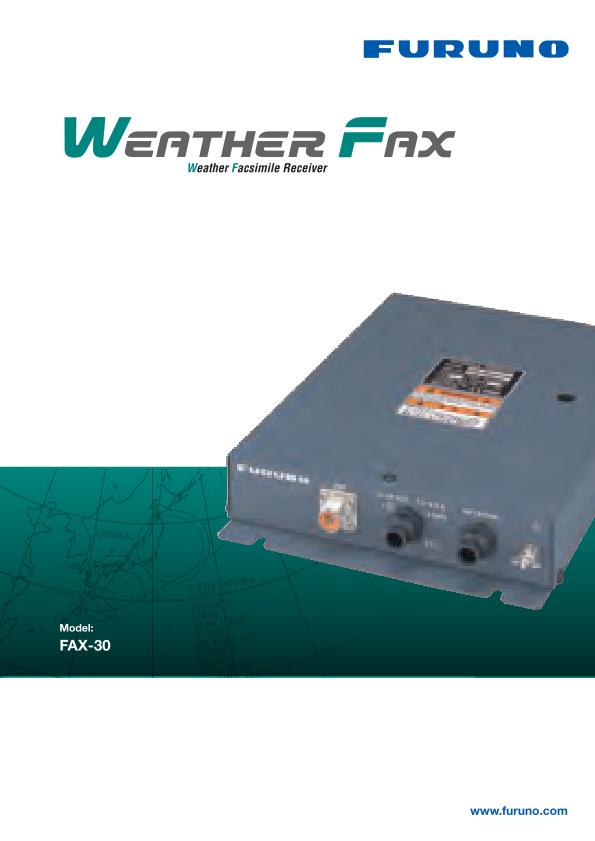

FAX-30 Brochure

FAX-30 Brochure
(Last update: Mar 23, 2023)

GENERAL CATALOG 2025 (For Recreational Boats)

GENERAL CATALOG 2025 (For Recreational Boats)
(Last update: Apr 9, 2025)

Name Last update
Nov 5, 2025

Distributors of Marine Equipment

Contact a local distributor for further details.

Locate a Distributor
Advanced Search

Weather Fax Product List

Black Box WEATHER FACSIMILE RECEIVER

Model

FAX-30
WEATHER FACSIMILE RECEIVER

Model

FAX-410
There are no products that meet the conditions.
