- Navtex

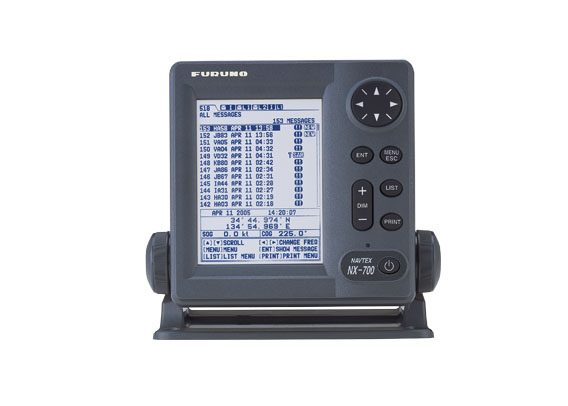

Model NX-700B
The NX-700 can receive the international NAVTEX messages as well as domestic or local NAVTEX messages at the same time.
- Merchant Marine、Workboats
Features
Full compliance with IMO Resolutions and IEC Testing Standards
IMO Resolutions | A.694(17) |
IEC Testing Standards | 60945 Ed. 4.0 |
Dual channel reception, 518 kHz and either 490 or 4209.5 kHz, simultaneously
Incorporates a printing device (NX-700A) or a dedicated display device with printer output (NX-700B)
200 message of average length 500 characters can be stored in nonvolatile memory
Incorporates a preamp within a lightweight, compact antenna for reliable, uninterrupted reception
Display messages on a clear 5" silver bright LCD
Low power consumption
NAV data display acts as NMEA repeater for GPS or instruments
Screenshots

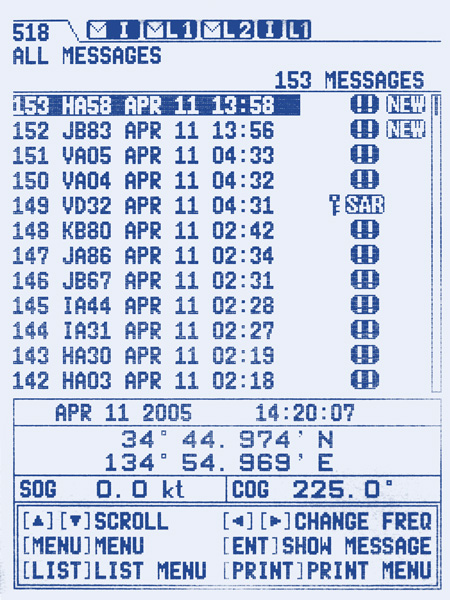

MESSAGE INBOX

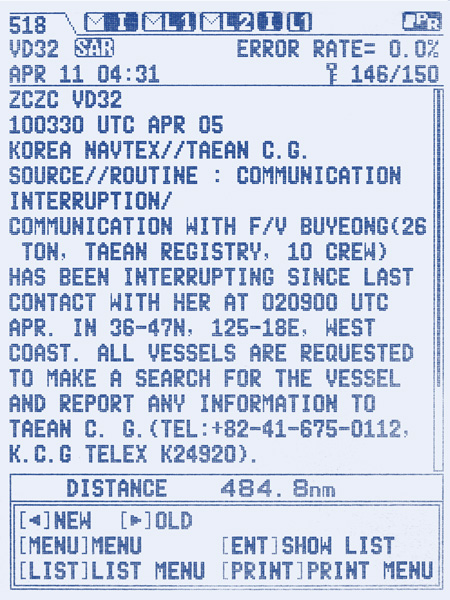

MESSAGE DISPLAY
Specifications
General
518 kHz and 490 kHz or 4209.5 kHz, receive both frequencies simultaneously
F1B
2µV e.m.f. (50 ohms), 4% error rate
200 messages x 2 channels (100,000 characters x 2 channels)
Antenna Unit: IP66
Receiver Unit: IP20
Display Unit: IP25 (front panel)
12-24 VDC: 0.7-0.4 A
0.7 kg 1.5 lb
Interface
IEC61162-1/-2:
ACK, ACN, CRQ, GGA, GLL, GNS, HBT, NRM, RMC VBW, VHW, VTG, ZDA, PFEC
ALC, ALF, ALR, ARC, HBT, NRM, NRX
Equipment List
Standard
NX-700B
NX-7001
NX-7H
Option
CP20-01111
DSUB25P-DSUB25P-3M / DSUB25P-DSUB25P-5M / DSUB25P-DSUB25P-10M / DSUB25P-DSUB25P-15M
NO. 13-QA310
NO. 13-QA330 (300)
NO. 13-RC5160
OP04-2 10/20/30/40/50 M
OP08-19
PR-241
RG-10/U-Y 30/40/50 M

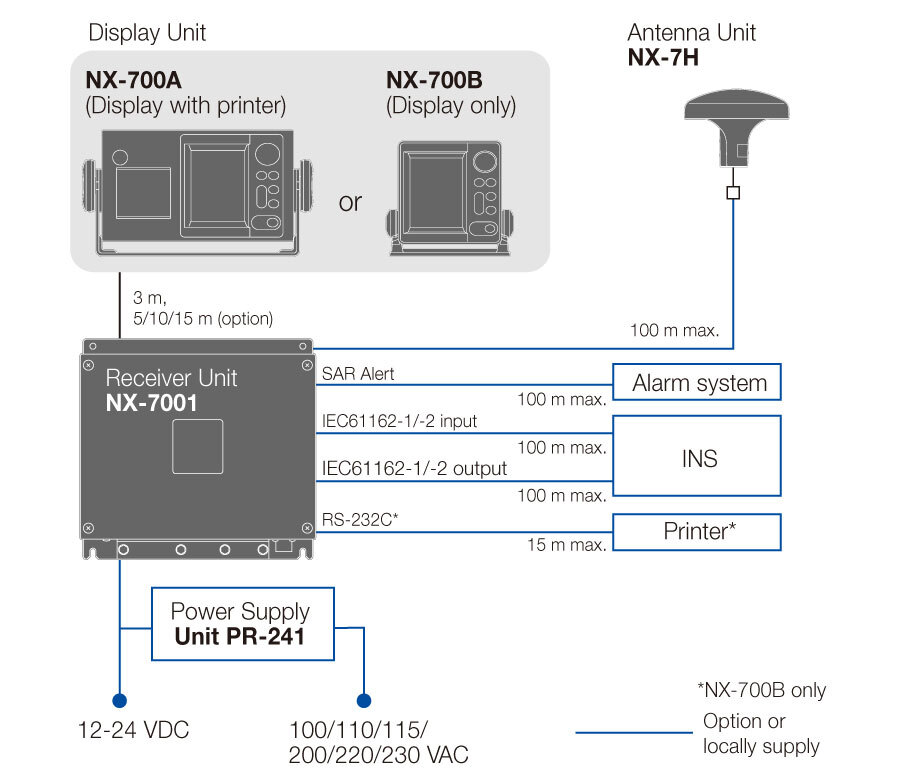

Interconnection Diagram
Downloads
| Name | Last update |
|---|---|
| Jun 2, 2025 | |
| Apr 12, 2024 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
