- Navtex
Model
NX-900
- NEW
NAVTEX Receiver contributing to safe navigation.
The Furuno NX-900 NAVTEX receiver automatically receives, displays, prints (via an optional printer) and sends data to navigation equipment such as ECDIS, the maritime safety information(MSI) composed of Navigational warning, Meteorological warning, and Search and Rescue(SAR) information, etc., broadcast from coastal stations in the MF and HF bands.
- Merchant Marine、Fishing Vessels、Workboats、Recreational Boats
Features
Compliant with IACS UR E27*.
- For IACS UR E27, click here.
Prevention function for important messages

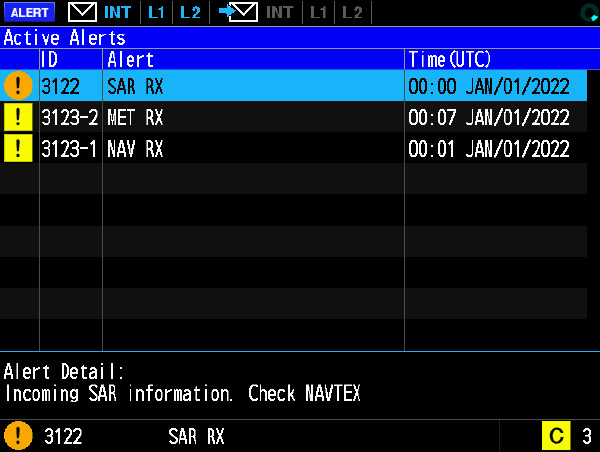

In the alert list, you can display alerts in order of priority at the time of confirmation.
If a SAR message (Search and Rescue information) is received:Regardless of the alarm setting, it will sound an alarm and immediately display the content after receiving it.

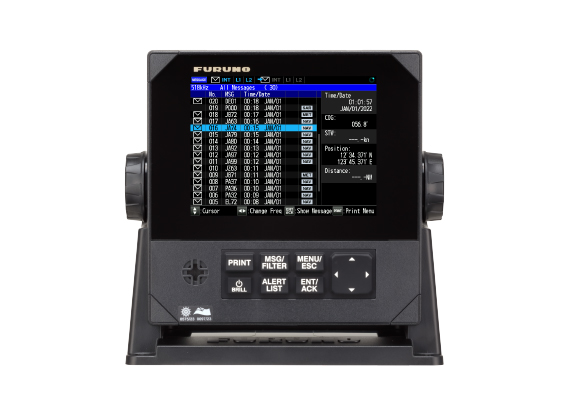

Display messages on a clear 5.7" color TFT LCD
The adoption of a 5.7-inch color LCD enhances visibility and operability with a wide viewing angle.
The casing design has also been completely revamped, so that it blends in harmoniously with other Furuno equipment.
Highly demanded self-test function for maintenance and inspection
Improved capabilities thanks to additional interfaces
Now features 2 IN/OUT serial ports as well as a LAN port.
Received messages can be stored in memory
200 message of average length 500 characters can be stored in nonvolatile memory.
Full compliance with IMO Resolutions and IEC Testing Standards
IMO Resolutions | A.694(17) |
IEC Testing Standards | 61097-6 Ed. 2.0 |
Screenshots

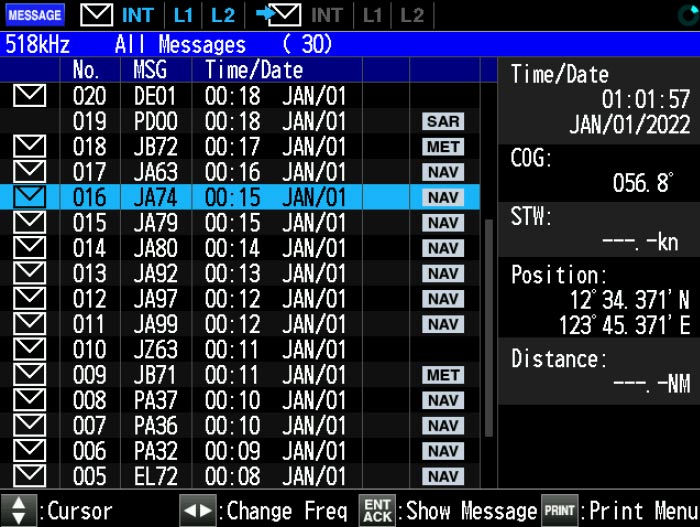

Message list

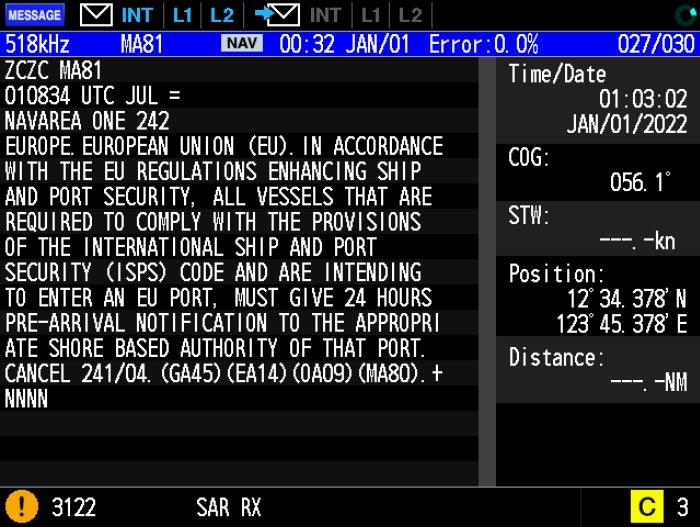

Details of the message
Specifications
General
518 kHz, 490 kHz, 4209.5 kHz
Receiving three frequencies simultaneously
F1B
-107 dBm input, error rate: 4% or less
5.7-inch color TFT LCD
640 × 480 dots (VGA)
500 characters with 200 messages x 3 channels
Navigational warning, Meteorological warning, Search and rescue information, Printer error
Main unit, Junction box, Printer IP20
Antenna unit IP56
Power supply voltage: 12-24 VDC, Current consumption: 0.7-0.35 A(main unit only)
Main unit: 1.2 kg 2.6 lb, Antenna unit: 0.48 kg 1.0 lb
Interface
2ports, IEC61162-1 Ed. 5, 4800 bps
1port, Ethernet, 100base-TX
Auto MDI/MDIX, IEC61162-450 Ed.2
1port for printer
1port for alert
Equipment List
Standard
NX-900
NX-9HE
Option
IF-900
PP-900
TP058-30CL
OP08-22
PR-241
CP20-01111

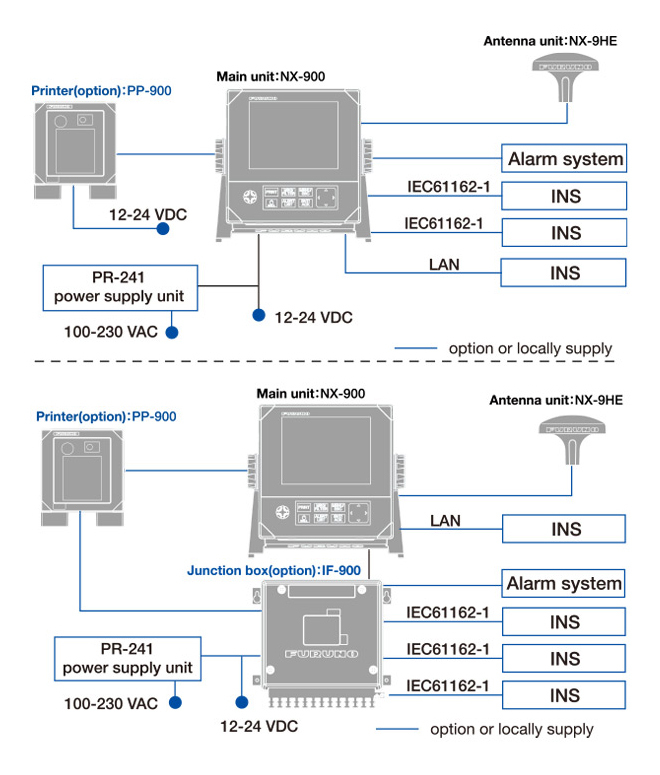

Interconnection Diagram
Downloads
| Name | Last update |
|---|---|
| Jan 26, 2026 | |
| Feb 9, 2024 | |
| Nov 5, 2024 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
