AUTOPILOT

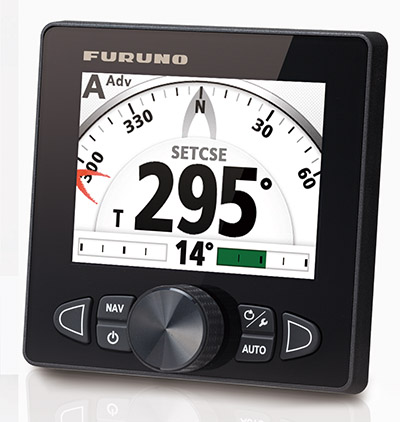

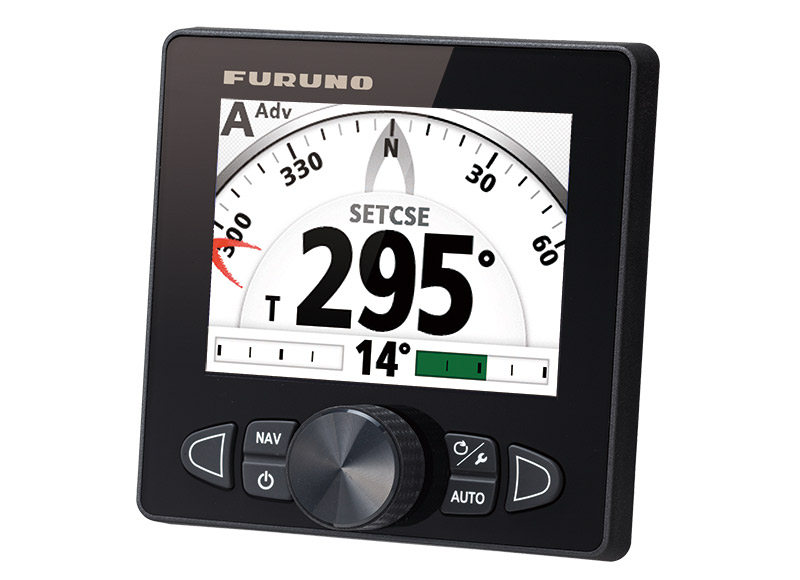

Model NAVpilot-711C

Kick back, relax and let NAVpilot steer you to the destination!

FURUNO's NAVpilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course keeping capability, dynamically adjusting essential parameters for navigation i.e., vessel speed, trim, draught, tide and wind effects, dead band, weather, etc. These parameters are stored in the system memory and continuously optimized.

Recreational Boats

Downloads

Features
Specifications
Equipment List
Interconnection Diagram
Downloads
Contact

Features

Perfect for inboard or outboard power boats and sail boats

Yamaha Helm Master™, Yanmar, and Seaster VCS compatible

The NAVpilot series have the capability to work with Yamaha Helm Master™, Yanmar 8LV engine systems and Seastar Optimus360 Joystick system.

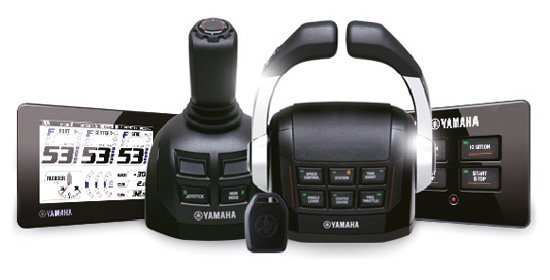

Yamaha Helm Master™ system*¹

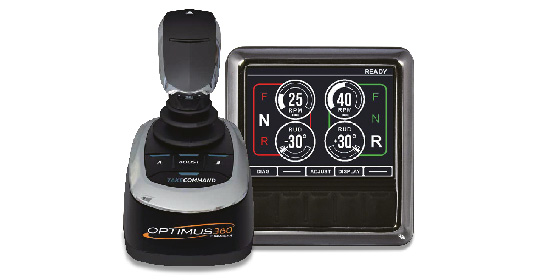

Seastar Optimus360 Joystick system*²

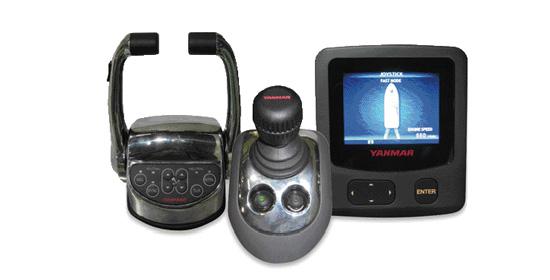

Yanmar VC10 System*²
(compatible with Yanmar 8VL and JC10)

Requires the optional IF-700IPS for the NAVpilot-300/711C
Requires the optional IF-NMEA2000 for the NAVpilot-300/711C

SABIKI mode for NAVpilot-711C

With the brand SABIKI mode your NAVpilot-711C has just become even more capable than before. And the best thing, there is no need to install additional hardware or sensors. Just perform the automated software upgrade and the SABIKI mode will be added to your NAVpilot-711C.

SABIKI™ mode is only available on vessels with outboard engines.

With the SABIKI mode turned on, the direction can be kept just
by adjusting the throttle.

In order to keep the same direction it is not sufficient to just
reverse the engine and move astern.
The steering has to be constantly adjusted to keep direction.

NAVpilot-711C software version 1.02 and Processor unit FAP-7002 software version 1.20 required for SABIKI mode.

SABIKI mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering.Moving astern at a slow pace the SABIKI mode is uniquely trailored for sabiki fishing, jigging and bottom fishing. Sabiki fishing requires a bit of technique and no matter if you just started or have considerable experience, the SABIKI mode will help you catch the bait fish needed for the big catch.

Furuno Fantum Feedback - allows for no physical rudder feedback unit for a streamlined installation and precise course control

Furuno's "Fantum Feedback" NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control. With Fantum Feedback, NAVpilot outboard installations no longer require use of physical rudder feedback unit.

Fantum Feedback is a menu-selectable feature available in the NAVpilot-711C software. This software was developed and extensively tested on a wide variety of outboard vessels with hydraulic steering and reversing pump control. Fantum Feedback achieves precise course control, from slow trolling speeds to high-speed cruising, utilizing a newly developed gain process, rather than traditional rudder angle based control.

Simplified activation set-up by on-screen wizard

Optional revolutionary SAFE HELM and POWER ASSIST brings unrivaled steering control and comfort at the helm*

SAFE HELM
The SAFE HELM temporarily switches the NAVpilot to manual steering for a specified time interval, taking it out of an automatic steering mode (AUTO, NAV, etc.) After the time interval has elapsed, SAFE HELM is deactivated and the previous automatic steering mode is restored.

POWER ASSIST
The POWER ASSIST is a unique helm-activated assisted steering feature that can augment and possibly replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.

Required Options - HRP11 or HRP17 Pump and FPS8 Power Steering

Utilizes a self-learning and adaptive software algorithm

From the first dock-side setup through the last voyage you made, NAVpilot continues to learn your vessel's steering characteristics. This allows dynamic adjustments to the boat's steering for vessel speed, trim, draft, tide and wind effects, weather, etc. These characteristics are stored in the processor's memory where they are continuously optimized to make the NAVpilot more versatile.

Selectable "Economy" and "Precision" Navigation Modes combine adaptive technology providing fuel and power savings of up to 2.5% or more.*

Based on Furuno testing and "Scenarios for a Clean Energy Future 2000” - U.S. Department of Energy (www.ornl.gov/sci/eere/cef)

"Precision" provides tighter course keeping, within 0.01 NM of the set course

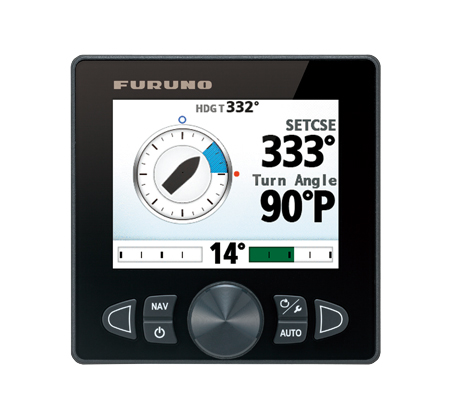

Bright & Clear Display

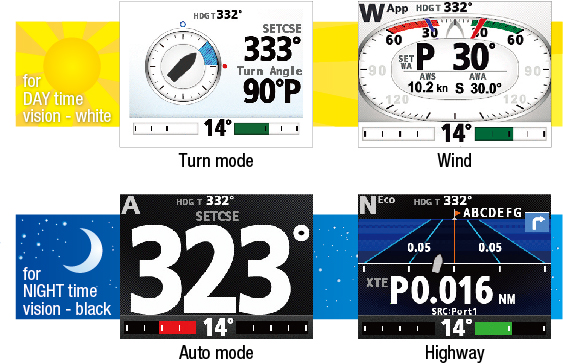

Various display modes are available, allowing you to customize the data to suit your own preferences with either digital or analog graphics.

The NAVpilot-711C features a color day/night graphic display, giving you much better sunlight viewability during the day, while not affecting your night vision when the sun goes down.

Simple one-touch mode selection enables flexible steering and course control

Furuno's NAVpilot-711C is designed to match the NavNet TZtouch3, NavNet TZtouch2, FI-70 Instrument and other navigation equipment.

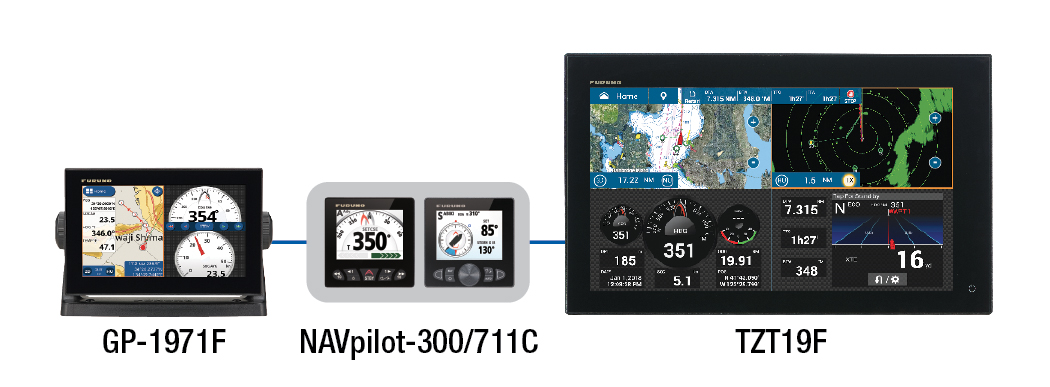

Autopilot control available from NavNet TZtouch3/TZtouch2/GP-1871F/GP-1971F.

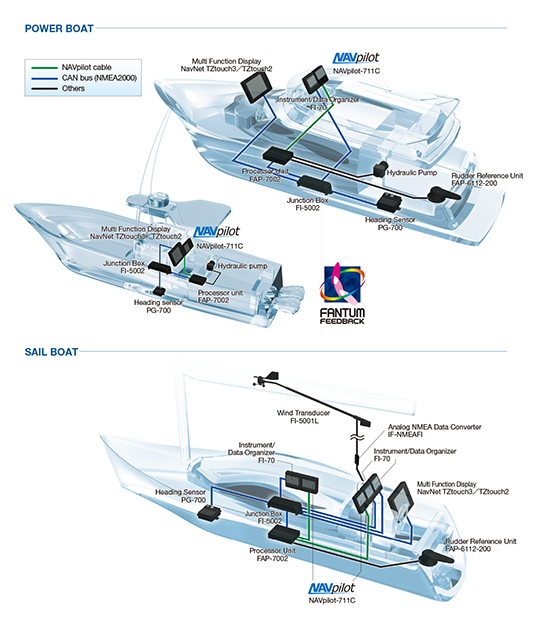

The “Plug and Play” CAN bus interface allows for easy installation and exceptional interface ability. The diagrams below show typical installations for power and sail boats.

Defferent mode variations

Auto mode

NAVpilot consistently maintains the desired heading, but the vessel may drift off course due to the effects of tide and wind.

Advanced auto mode

NAVpilot consistently maintains the desired heading while compensating for the effects of tide and wind.

NAV mode / Route tracking

NAVpilot steers the vessel towards the current waypoint while compensating for the effects of tide and wind.

When connected to a GPS Navigator, NAVpilot steers the vessel to follow a series of waypoints in succession.
Upon arriving at each waypoint or destination, audible and visual alerts are activated.

Wind mode*

NAVpilot consistently maintains the desired heading toward true or apparent wind direction while compensating for the effects of tide and wind.

This mode is available for sailing craft only. Wind data input is required.

FishHunter

The NAVpilot will activate the FishHunter to perform square, zigzag, circle, orbit, spiral or figure eight maneuvers around the specified target at a user selected distance. This feature can also be used for Man Overboard (MOB).

Specifications

Control Unit

Display Unit

4.1" Color LCD

Effective Display Area

82.6 (W) x 61.9 (H) mm

Pixel Number

320 x 240

Backlight

8 steps

Processor Unit

Steering Modes

STBY, Auto, Dodge, Turn, Remote, Advanced auto*, Navigation*, Wind*, Fish Hunter™*

* external data required

Alarm

Heading deviation, Cross-track error*, Ship's speed*, Depth*, Water temperature*, Wind*, Watch, Log trip*

* external data required

Sea Condition Adjustment

AUTO/MANUAL-CALM/MODERATE/ROUGH

Rudder Angle Settings

10 - 45 deg

Interface

Ports

CAN bus (NMEA2000): 1, NMEA0183: 2

Input (NMEA)

AAM, APB, BOD, BWC, BWR, DBT, DPT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWV, ROT, RMB, RMC, THS, TLL, VHW, VTG, VWR, VWT, XTE, ZDA

Input (CAN bus)

059392/904, 060928, 061184, 126208/720/992/996, 127250/251/258/488/489, 128259/267, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/577/818/821/827/880

Output (NMEA)

DBT, DPT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWV, RMB, RMC, ROT, RSA, VHW, VTG, VWR, VWT, ZDA

Output (CAN bus)

059392/904, 060928, 061184, 126208/464/720/992/996, 127237/245/250/251/258, 128259/267, 129025/026/029/033/283/284/285/827, 130306/310/311/312/822/823
