AUTOPILOT

Model NAVpilot-1000

NEW

HCS (Heading Control System) type-approved Autopilot

"The NAVpilot-1000 is a HCS (Heading Control System) type-approved Autopilot that can be connected to an analog steering system or solenoid steering system, which are often used for relatively large vessels.
The NAVpilot-1000 has both IMO and Non-IMO modes depending on steering types or operation requirements and covers various types of vessels."

Merchant Marine

Downloads

Features
Specifications
Equipment List

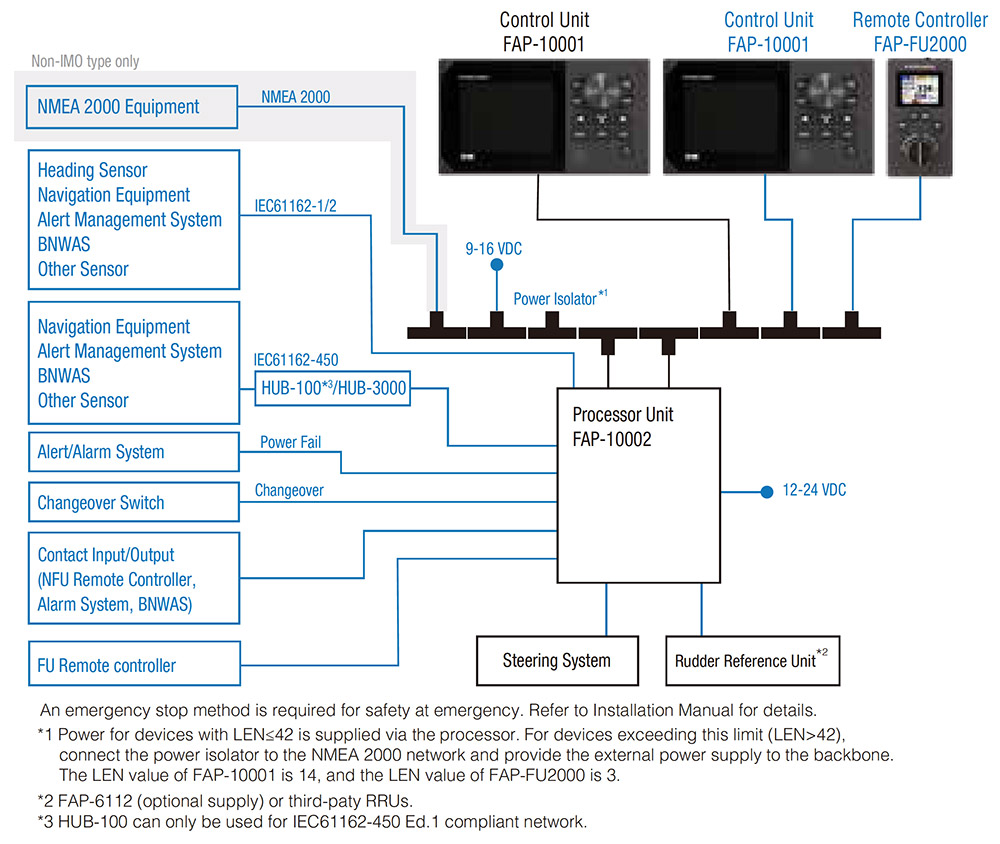

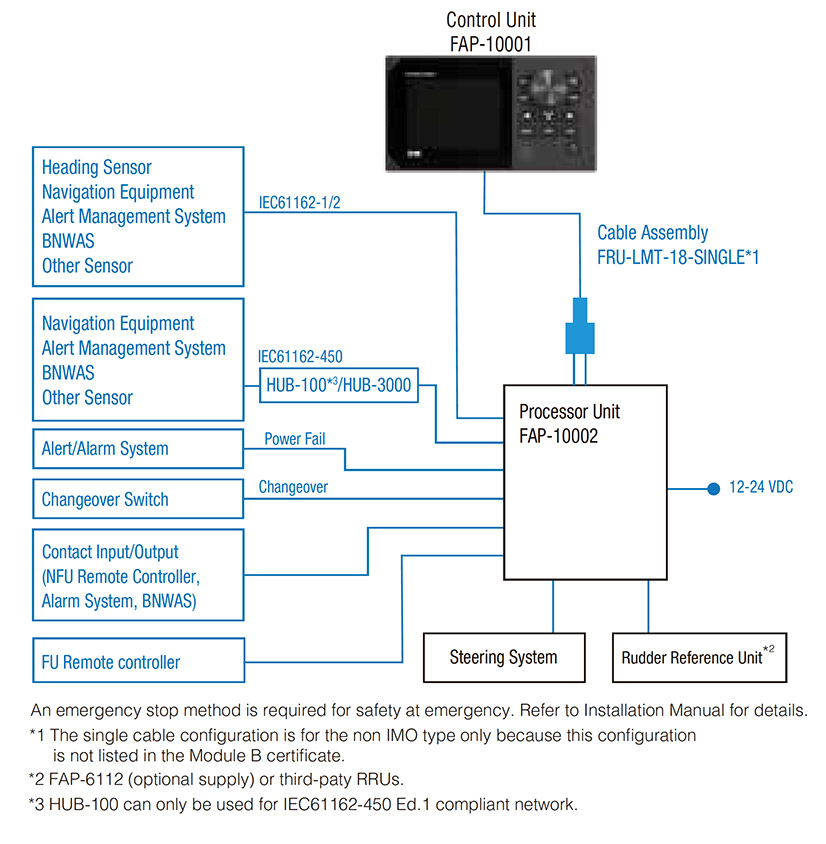

Interconnection Diagram
Downloads
Contact

Features

NAVpilot-1000 is compatible with a variety of vessel types

Supported Propulsion Type

Inboard
Stern drive
Water jet
Azimuth Drive

Single rudder and single rudder drive with multi-rudders (single control) are supported.
Independently controlled/moved multiple rudder drives are not supported.
Outboard, sailboat, azimuth drive (independent control) are not supported.

Supported Steering Interface

Analog rudder drive (Voltage/Current)
Solenoid (or relay*)

A relay must be used when connecting to a rudder system that uses dry-contact signals.

Steering Straight with AUTO Mode

The NAVpilot-1000 takes the helm with an advanced steering algorithm that is designed for larger vessels. Specially designed features, like TURN Mode, ensure that you make smooth turns with confidence.

The NAVpilot-1000 is designed for use on 100 m or smaller vessels.

Work Profiles

When vessels are operated on a daily basis, sea conditions are different depending on weather or locations. In addition, preference on how-to-steer is also different depending on operators. The NAVpilot-1000 can save a total of six (6) patterns of Work Profiles. Parameters set in Auto Tuning or manual adjustment can be assigned to each profile. Simply select one of the suitable profiles for the day, location or operator.

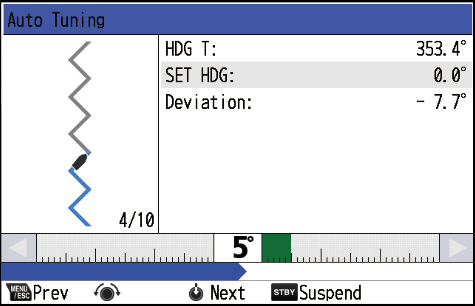

Auto Tuning

Before navigating with the NAVpilot-1000, Auto Tuning helps to adjust control parameters. While Auto Tuning, the vessel will run in zig-zag towards the preset heading and automatically adjust rudder gain, counter rudder, and rate of turn to match with vessel characteristics.

HCS Type-Approved

NAVpilot-1000 received the Type Approval certification for the Heading Control System (HCS) and Heading control system for high speed craft. The Type Approval certifies that the product meets specific safety, quality, and reliability standards required for the international marine industry.

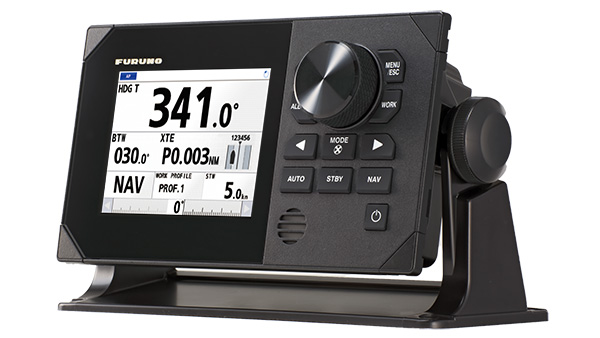

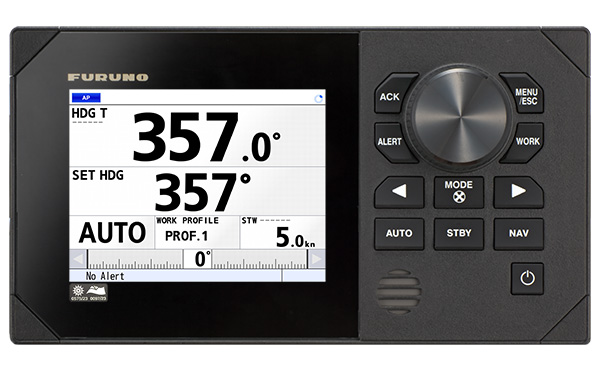

Easy to Read and Robust Controls

The NAVpilot-1000 comes with a 5.7” color control unit. Large, high-contrast characters are easy to read on the color LCD.
The robust rotary knob and buttons are comfortable to rotate and press even in rough sea conditions.

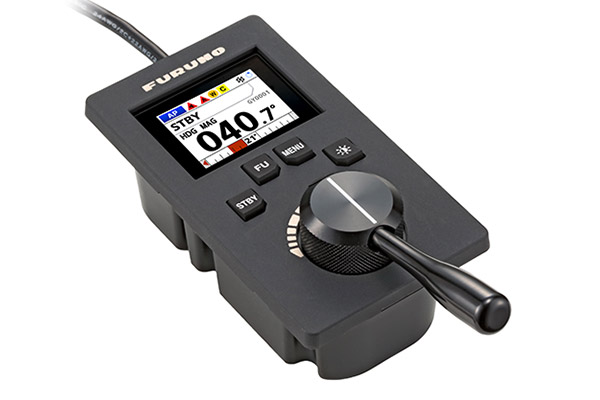

Remote Controller with IMO Module B type-approved configuration (Option)

The FAP-FU2000 is a Follow-Up type remote controller for the NAVpilot-1000.
It features a robust housing and lever designed to withstand frequent course adjustments and comes standard with two types: a short lever for upper side mounting, and a long lever for lower-side mounting.
By connecting it to the same backbone as the NAVpilot-1000 control unit, the remote controller receives power and enables autopilot operation.
With IPX6 waterproof protection, it is also suitable for outdoor installation on the wings.

Easily Follow Routes with NAV Mode*

The NAVpilot-1000 helps steer vessels on a monitored or activated route with NAV mode.

Non-IMO mode only

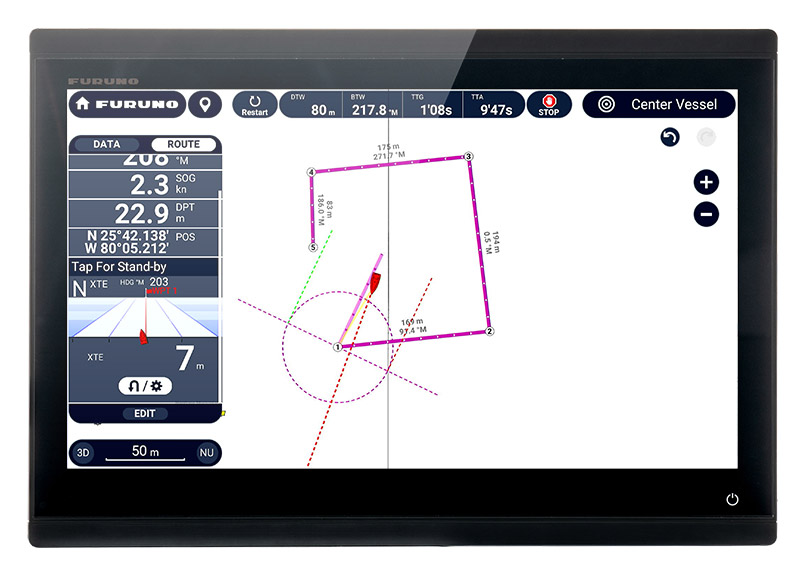

Interconnect with MFD*¹

*Photo: NavNet TZtouchXL TZT16X

The NAVpilot-1000 can be connected to FURUNO’s NavNet TZtouch series MFDs*² via NMEA 2000. AUTO and NAV modes can be activated from the MFD screen, as well as adjusting the set course while navigating.

Non-IMO mode only
TZT10X/13X/16X/22X/24X/BBX: All software versions

TZT9F/12F/16F/19F: Software version 3.56 or later
TZT2BB: Software varion 9.56 or later

Specifications

Control Unit

Display Unit

5.7” Color LCD

Effective Display Area

115.2 (W) x 86.4 (H) mm

Pixel Number

VGA (640 x 480)

Backlight

720 cd/m2

Visible Distance

0.62 m nominal

Max. Number of Units in a Network

6 units total of FAP-10001 and FAP-FU2000

Processor Unit

Steering Modes

STBY, AUTO, Advanced AUTO, NAV*¹(Standard/Precision), FU-RC*², NFU-RC*¹ *², FU-KEY*², NFU-KEY*², DISENGAGED (FU/NFU: Follow-Up/Non-Follow-UP, RC/KEY: remote/keyboard control)
*1: Non-IMO mode only, *2: Available only when the RRU is installed.

Rudder Gain

Auto / Manual

Counter Rudder

Auto / Manual

Trim Gain

Auto / Manual

Alarm

Heading monitor, Watch, Off heading

Rate of Turn

0.1-10 deg/s

Rudder Angle Settings

±45 deg

Rudder Control (Analog)

Voltage: 0 to 5 V (min.), -10 to +10 V (max.) (5 mA max.)
Current: 4 to 20 mA (load resistance 500 ohm max.)

Solenoid Control for Rudder On/Off

Isolation: Galvanic/non-galvanic isolation
Connection: Common negative
Load range: 3 A max.

Clutch / Bypass Drive for Rudder

Isolation: Galvanic/non-galvanic isolation
Connection: Common negative
Load range: 3 A max.

Interface

Ports

Serial: 4 ports, I/O, IEC61162-1 Ed.3 to 5, NMEA 0183
Ver1.5/2.0, 4800/38400 bps
LAN: 1 port, Ethernet 100Base-TX, IEEE802.3 data link, IGMPv2 acceptable
NMEA 2000: 1 port, for control unit
Universal Output: 6 ports (dry contact), alarm/status: 100 mA max.
Universal Input: 4 ports (dry contact)
Power Failure: 1 port, 12-24 V: 100 mA max.
Changeover Switch: 1 port (input)
USB: 1 port, USB 2.0, for maintenance

Environment

Ambient Temperature

-15°C to +55°C (storage: -30°C to -70°C)

Relative Humidity

93% or less at +40°C

Waterproofing

Processor Unit: IP22
Control Unit: IP22
REMOTE CONTROLLER: IPX6(Front), IPX5(Rear)

Others

Power Supply

Processor Unit: 12-24 VDC (10.8-31.2 V): 4.0-2.0 A
(Control Unit: 3 units)

Size

Processor Unit: 397.８ (H) x 440 (W) x 100 (D) mm
Control Unit: (DECK MOUNT) 164 (H) x 277 (W) x 112 (D) mm , (FLUSH MOUNT) 144 (H) x 262 (W) x 80 (D) mm
Remote Controller: 144 (H) x 80 (W) x 66 (D) mm

Weight

Processor Unit:6.0 kg
Control Unit: (DECK MOUNT) 1.2 kg , (FLUSH MOUNT) 0.95 kg
Remote Controller: 0.77 kg
