• Multi-Purpose Display

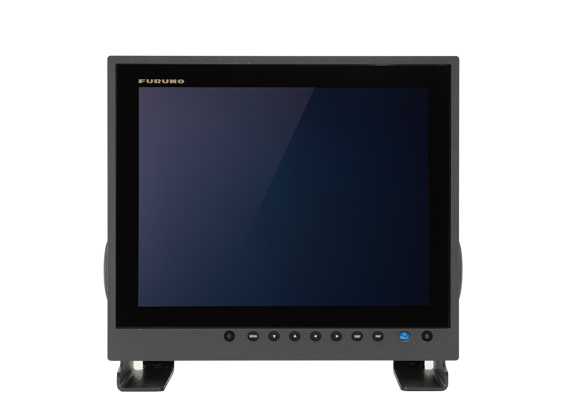

15" MARINE DISPLAY

Model MU-152

Marine Display simply functional, and yet robust.
Why not using FURUNO marine grade monitors in your helm!

The FURUNO MU-152 is a multi-purpose marine LCD that features the unmatched quality and reliability that you have learned to depend on.

  • Merchant Marine、Fishing Vessels、Workboats

Features

Crystal clear 15" marine grade monitor for use as main or remote display

Resolution: 1024 x 768 XGA

Built-in scaler allows accepting up to SXGA (1280 x 1024) resolution

Automatic dimmer sensor adjusts the display brightness as light conditions change

1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL interfaces available

Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location

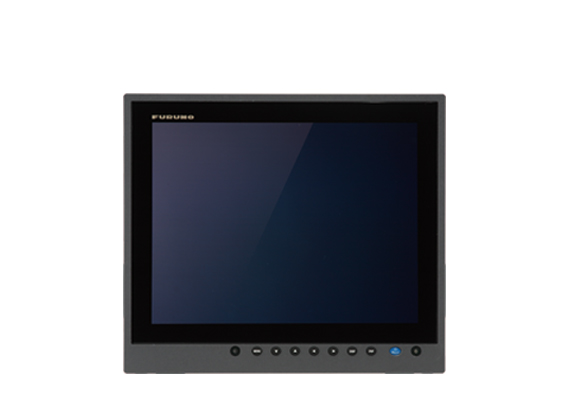

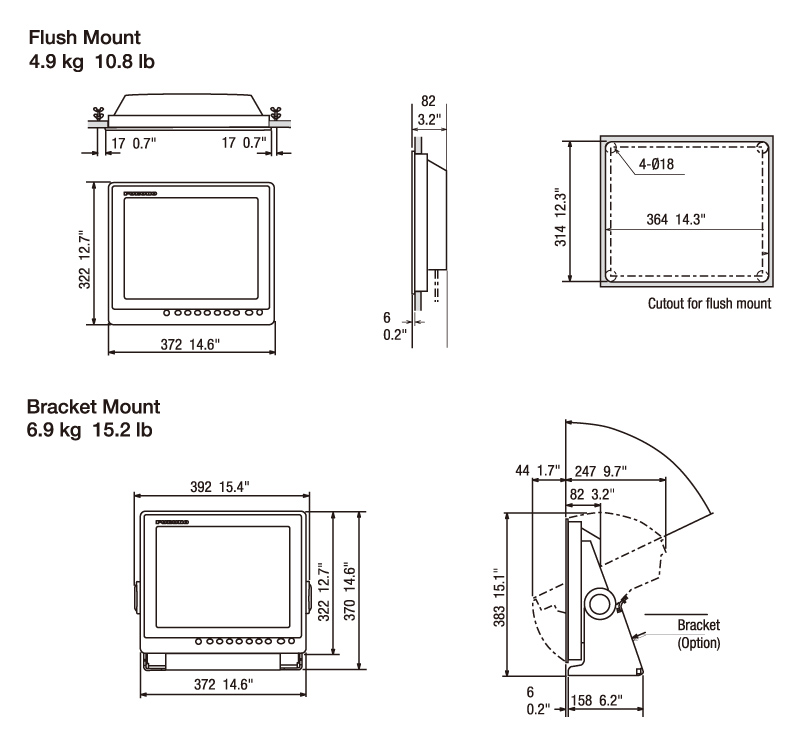

Table top or Flush Mount

Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.

Automatic signal recognition and scaling for easy setup and installation

Specifications

General

Display Unit

15" COLOR LCD

Screen Resolution

1024 x 768 (XGA)

Contrast

900:1

Viewing Angle (Vertical)

up/down　80°or more

Viewing Angle (Horizontal)

left/right　80°or more

Screen Brightness

400 cd/㎡

Interface

Analog RGB (D-SUB/15 pins): 1 port
DVI-D: 2 ports
Composite Video (NTSC/PAL): 3 port

Temperature

−15 ℃ 〜 +55 ℃

Waterproofing

IP56 (front panel)
IP22 (rear panel)

Power Supply

12-24 VDC, 1.9−0.9 A

Weight

Flush mount：4.9 kg
Bracket mount：6.9 kg

Equipment List

Standard

DISPLAY UNIT MU-152

1 UNIT

FLUSH MOUNT KIT (for fixing at rear)

1 UNIT

INSTALLATION MATERIALS AND SPARE PARTS

Option

CABLE ASSEMBLY (ANALOG RGB)

5 M
10 M

DVI-D CABLE ASSEMBLY

DVI-D/D SINGLELINK (5 M)
DVI-D/D S-LINK (10 M)

BRACKET ASSEMBLY (WITH KNOBS)

OP26-35

HOOD ASSEMBLY

OP26-3

FLUSH MOUNT KIT

OP26-36

Downloads

MU Series Brochure

MU Series Brochure
(Last update: Oct 1, 2024)

Name Last update
Nov 5, 2025

Distributors of Marine Equipment

Contact a local distributor for further details.

Locate a Distributor
Advanced Search

Multi-Purpose Display Product List

15"/19" MARINE DISPLAY

Model

MU-152HD/192HD
15" MARINE DISPLAY

Model

MU-152

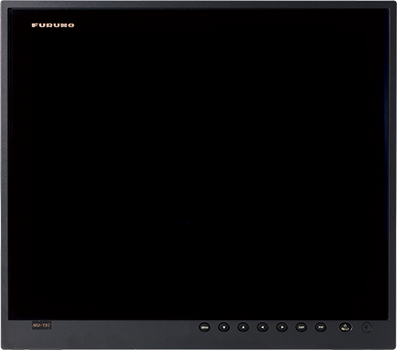

19" MARINE DISPLAY

Model

MU-192

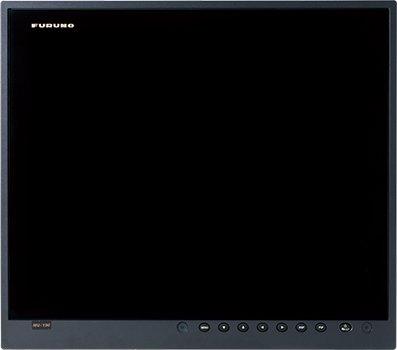

19" MARINE DISPLAY

Model

MU-190

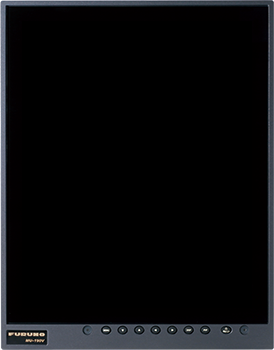

19" VERTICAL MARINE DISPLAY

Model

MU-190V

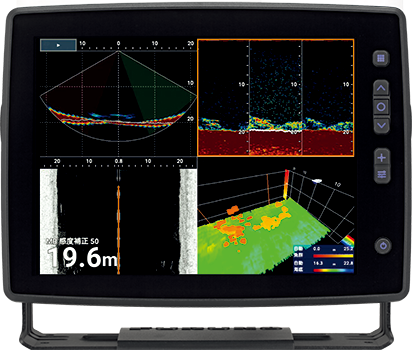

FLEX Function Display

Model

SFD-1010/1012

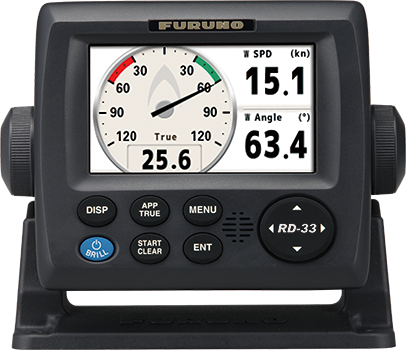

4.3" REMOTE DISPLAY
