- Multi-Purpose Display
Model MU-190
How about using FURUNO marine grade monitors in your helm!
The FURUNO MU-190 is a multi-purpose display that features the unmatched Furuno quality and reliability that you have learned to depend on. This 19" color monitor features a wide range of interface capabilities that will accommodate virtually all of your marine display needs.
- Fishing Vessels、Workboats、Recreational Boats
Features
Crystal clear 19" marine grade monitor for use as main or remote display
Resolution: 1280 x 1024 SXGA
Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location

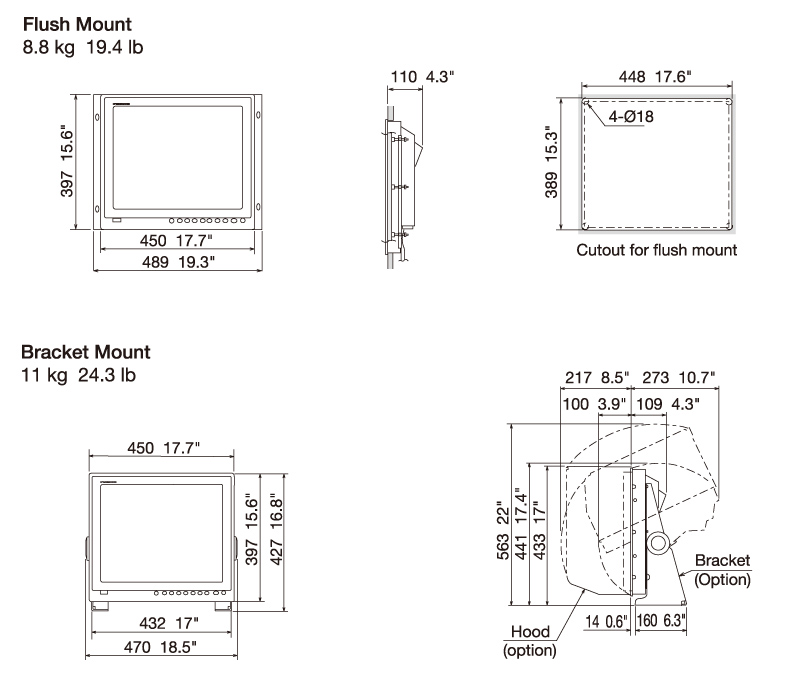

Table top/Ceiling or Flush Mount
Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.
Automatic signal recognition and scaling for easy setup and installation
Specifications
General
19" COLOR LCD
1280 x 1024 (SXGA)
* Resolution from VGA to SXGA are accepted
900：1
(Vertical) up/down 80°or more
(Horizontal) left/right 80°or more
450 cd/㎡
Analog RGB (D-SUB/15 pins): 1 port
DVI-D: 2 ports
Composite Video (NTSC/PAL): 1 port
−15 ℃ to +55 ℃
IP22
100-230 VAC、0.5−0.4 A
Flush mount：8.8 kg
Bracket mount：11 kg
Equipment List
Standard
1 UNIT
1 PC
1 SET
Option
FOR STANDARD CONSOLE/SLIM CONSOLE/OP26-5
5 M
10 M
DVI-D/D SINGLELINK (5 M)
DVI-D/D S-LINK (10 M)
FOR REAR/2 UNITS/3 UNITS
OP26-5
OP26-6
Downloads
| Name | Last update |
|---|---|
| Nov 5, 2025 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
