- Multi-Purpose Display
Model MU-192
Why not using FURUNO marine grade monitors in your helm！
The MU-192 is a 19" IMO-compliant color LCD monitor with 400 cd/m² brightness, SXGA (1280 x 1024) resolution, 100/230 V power supply, and is designed for radar and ECDIS applications (optional bracket available).
- Fishing Vessels、Workboats、Recreational Boats
Features
A High-Performance Multi-Purpose Marine Display
The Furuno MU-192 is a versatile, high-quality marine LCD display designed to meet the demanding needs of maritime professionals. Built with Furuno’s renowned reliability and precision, this display delivers exceptional performance across a wide range of marine applications. Whether used for navigation, monitoring, or system integration, the MU-192 provides outstanding clarity, durability, and ease of use, making it a trusted choice for vessels of all sizes.
A nice addition for a neat and beautiful console
For space-saving installation and additional security, flush mount installation is available for all the MU-Display series. The display unit can be fixed from either front or rear with the flush mount kit.
Compact and lightweight
The MU-Display series is slim in depth, light weight, and is so compact that it fits right into virtually any console.
Its space-saving design makes optimum use of your dashboard.
Specifications
General
19" COLOR LCD
1280 x 1024 (SXGA)
* Resolution from VGA to SXGA are accepted
1000 : 1
85° or more (up/down, left/right)
400 cd/㎡
Analog RGB (D-SUB/15 pins) : 1 port
DVI-D : 2 ports
Composite Video (NTSC/PAL) : 1 port
−15 ℃ to +55 ℃
IP22
AC100-230 V, 0.4 - 0.3 A
Flush mount : 8.0 kg
Bracket mount : 10.4 kg
Equipment List
Standard
1 UNIT
1 PC
1 SET
FOR STANDARD CONSOLE/SLIM CONSOLE/OP26-5
Option
5 M
10 M
DVI-D/D SINGLELINK (5 M)
DVI-D/D S-LINK (10 M)

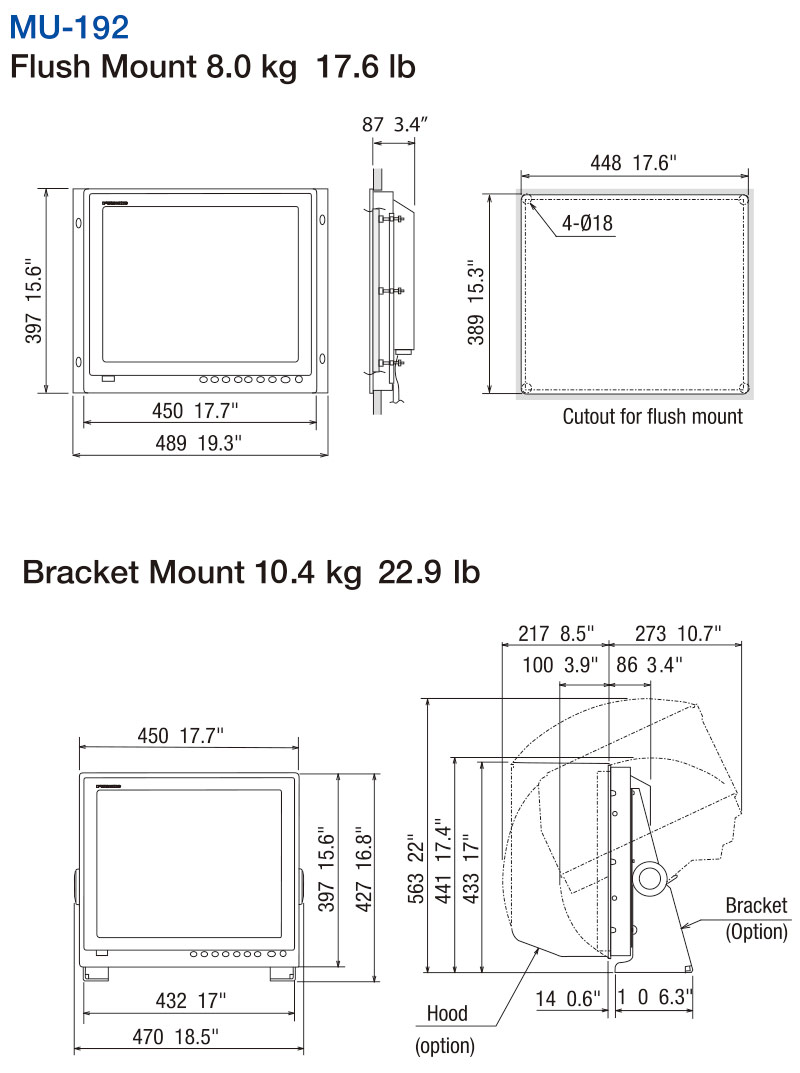

Drawing
Downloads
| Name | Last update |
|---|---|
| Nov 5, 2025 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
