- Multi-Purpose Display
Model MU-190V

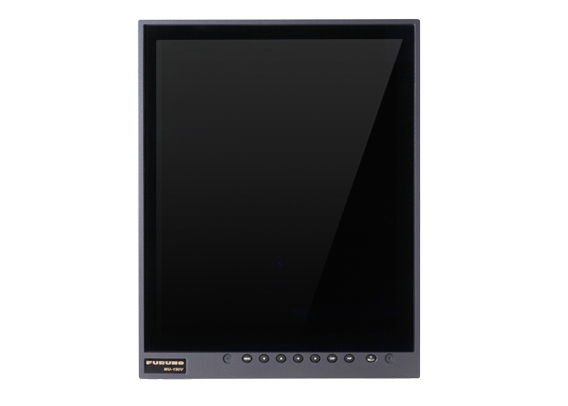

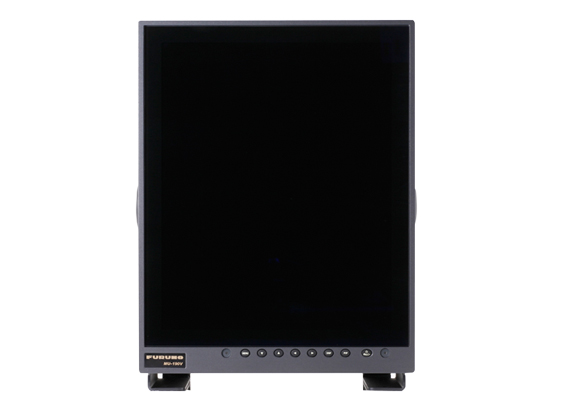

The Furuno MU-190V is a 19", portrait-oriented marine display with anti-reflective glass designed to reduce glare. The bright colors and wide viewing angles help make the MU-190V ideal for all lighting conditions and a fog-free operation on the open flybridge.
- Fishing Vessels、Workboats、Recreational Boats
Features
A High-Performance Multi-Purpose Marine Display
The Furuno MU-190V uses a powerful LED backlight that offers high quality image with extremely low power consumption. The compact display will fit into any console, and a flush mount installation kit comes with the MU-190V display.
Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location
Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.
Specifications
General
19" COLOR LCD (Vertical type)
1024 x 1280 (SXGA)
*Resolution from VGA to SXGA are accepted
900 : 1
160° (up/down, left/right 80° or more)
500 cd/㎡
Analog RGB (D-SUB/15 pins) : 1 port
DVI-D : 2 ports
Composite Video (NTSC/PAL) : 1 port
−15 ℃ to +55 ℃
IP22
12−24 VDC, 5.0−2.5 A
Flush mount : 8.0 kg
Bracket mount : 11.0 kg

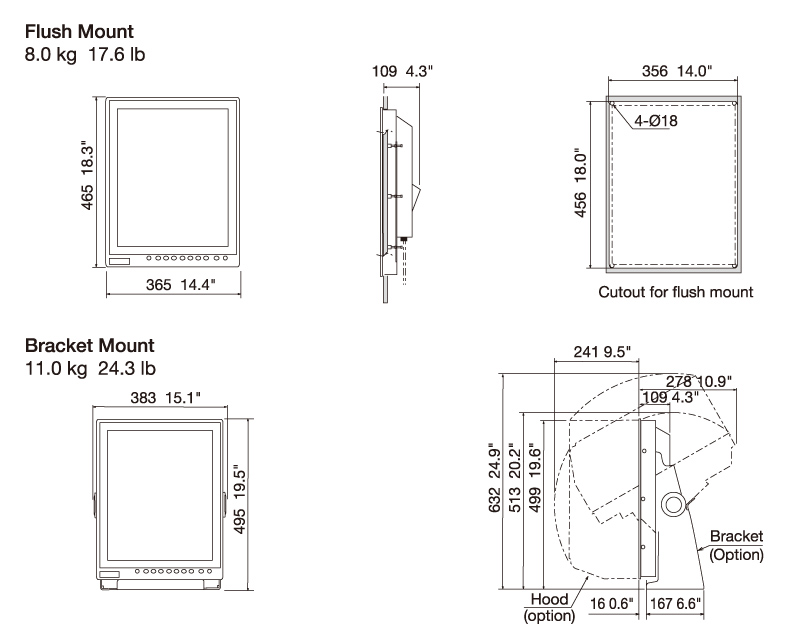

Drawing
Downloads
| Name | Last update |
|---|---|
| Aug 1, 2022 |
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
