Fish Finder

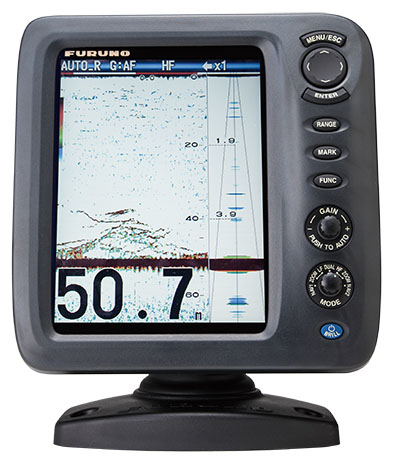

8.4" COLOR LCD FISH FINDER Model FCV-588

For Recreational Boats For Fishing Vessels

High resolution fish echoes with RezBoost™ technology!

FCV-628 uses revolutionary new RezBoost™ technology, providing an incredible boost in resolution and target separation, utilizing a compact narrowband transducer.

Bottom Discrimination ACCU-FISH™ RezBoost™ Auto Tuning (Sensitivity)

Related Contents

Features

  • Dual-frequency fish finder equipped with revolutionary new RezBoost™ signal processing technology

    Improved clarity and resolution that was previously impossible with conventional narrowband transducers has been made possible thanks to the new RezBoost™ technology.

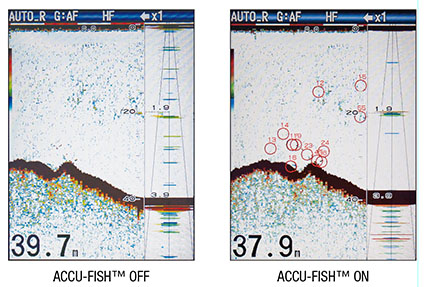

  • ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology

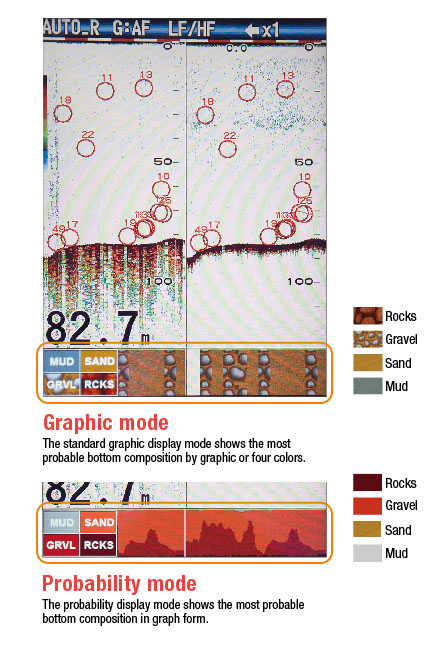

  • Bottom Discrimination - Analyze bottom structure

    Provides an at-a-glance recognition of bottom composition with four types of graphical displays
    (Rocks/Sand/Gravel/Mud) when connected to a supported thru-hull or transom mount transducer.
  • White Line feature - Discriminate fish lying near the bottom

    The top edge of the bottom echo is displayed in white to clearly show bottom structures. This feature helps to discriminate between weeds and bottom fish distincly.

  • Configurable Alarm function (depth, fish echoes, etc.)

  • Share and display information on a chart plotter*

    FURUNO's TLL (Target Lat/Lon) output allows you to interface the FCV-588 with your FURUNO chart plotter so that you can mark fishing grounds with various information (L/L, Depth, Water Temp, Fish size and Bottom type).
    * Requires a chart plotter.
  • Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range)

Specifications

DISPLAY

Display unit8.4" TFT color LCD
Pixel numberVGA 480 x 640

FISH FINDER

Frequency50 and 200 kHz
Transducer600 W/1 kW*

*FCV-588 can be connected to 1 kW transducers, when interfaced with Matching Box MB-1100.
Range Scale2-1200 m
Pulselength & PRR0.04 ms-3 ms, Max 3,000 pulse/min
Display ModeSingle frequency (50 or 200 kHz), Dual-frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom Discrimination, ACCU-FISH™, RezBoost™
ACCU-FISH™
Bottom Discrimination

OTHERS

WaterproofingIP56
Power Supply12-24 VDC: 1.2-0.6 A
Size270 (H) x 233 (W) x 158 (D)
WeightBracket Mount: 2.3 kg
Flush Mount: 1.6 kg

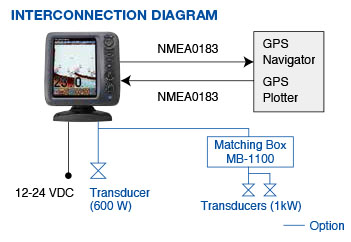

Interconnection Diagram

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
