- Fish Finder

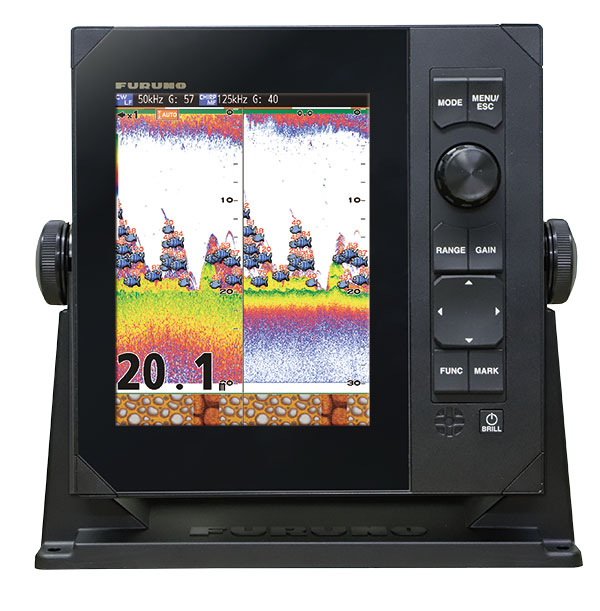

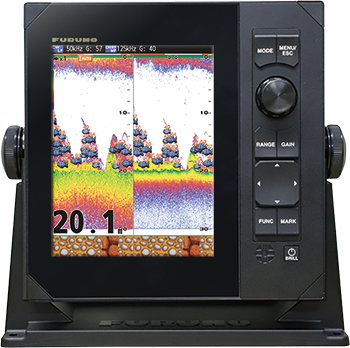

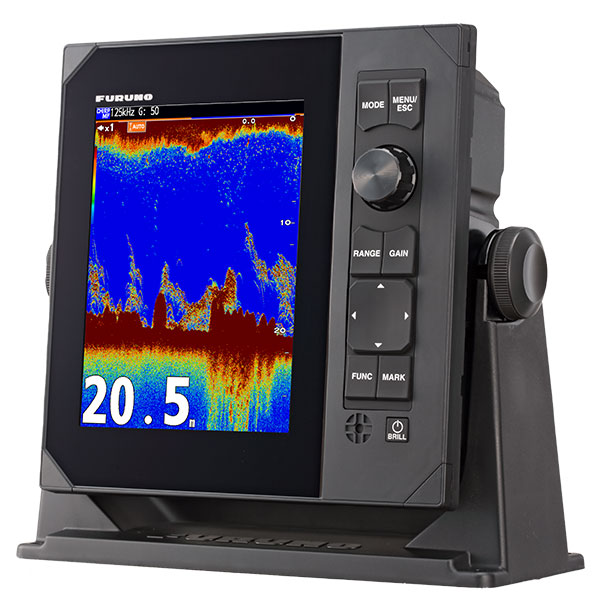

8.4" COLOR LCD FISH FINDER
Model FCV-800
Boost your catch with TruEcho CHIRP™, Furuno's revolutionary broadband, combining multi-frequency features utilizing multiple transducers!
The FCV-800 combines the power of TruEcho CHIRP™ with a host of revolutionary identification technologies to clearly distinguish fish from other structures, such as the seabed or reefs. Additionally, it allows you to use TruEcho CHIRP™ and CW technologies, such as bottom discrimination and ACCU-FISH™, together for added capabilities.
- Fishing Vessels、Recreational Boats
Features
TruEcho CHIRP™
Traditional CW (Continuous Wave) Fish Finders transmit a signal composed of a single frequency, while CHIRP Fish Finders transmit a linear frequencymodulated signal - a wave with a frequency that increases over time. The FCV-600 and FCV-800 can utilize a broadband transducer to transmit across a spectrum of frequencies, resulting in better target resolution. With Furuno’s TruEcho CHIRP™, you’ll see greater detail and target separation for baitfish, game fish, and structure.

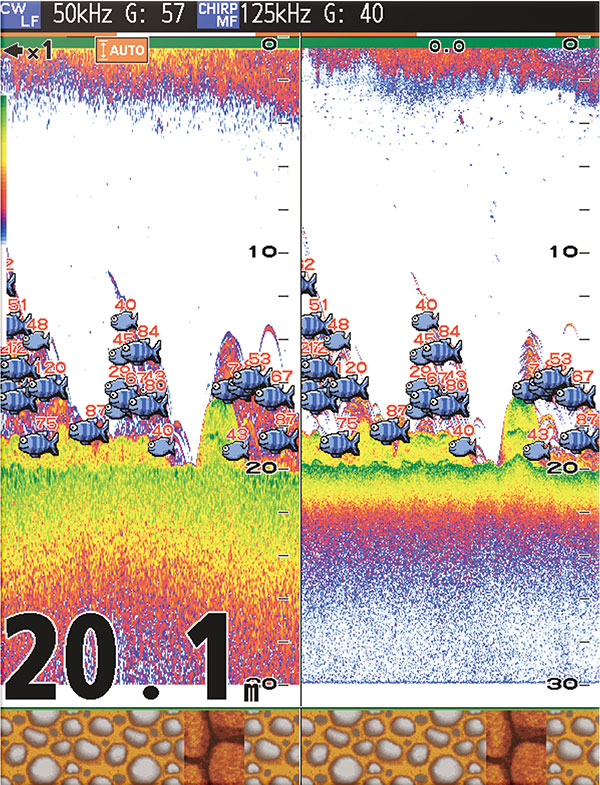

COMBINE CW & TruEcho CHIRP™ FOR ADDED CAPABILITIES

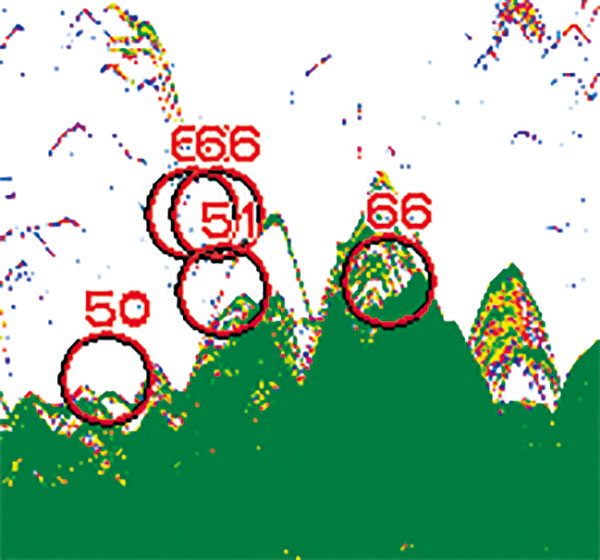

By combining CHIRP and traditional CW transducers*1, you’ll see crisp CHIRP echoes on the screen while the ACCU-FISH™ and Bottom Discrimination functions from your CW transducer work in the background, overlaying important information on your CHIRP returns. You will be able to see fish targets, fish size assessment, fish depth, and bottom composition.*2 Up to three frequencies can be saved as preset selections.
- FCV-800 Single Frequency CHIRP only
- MF or HF CHIRP

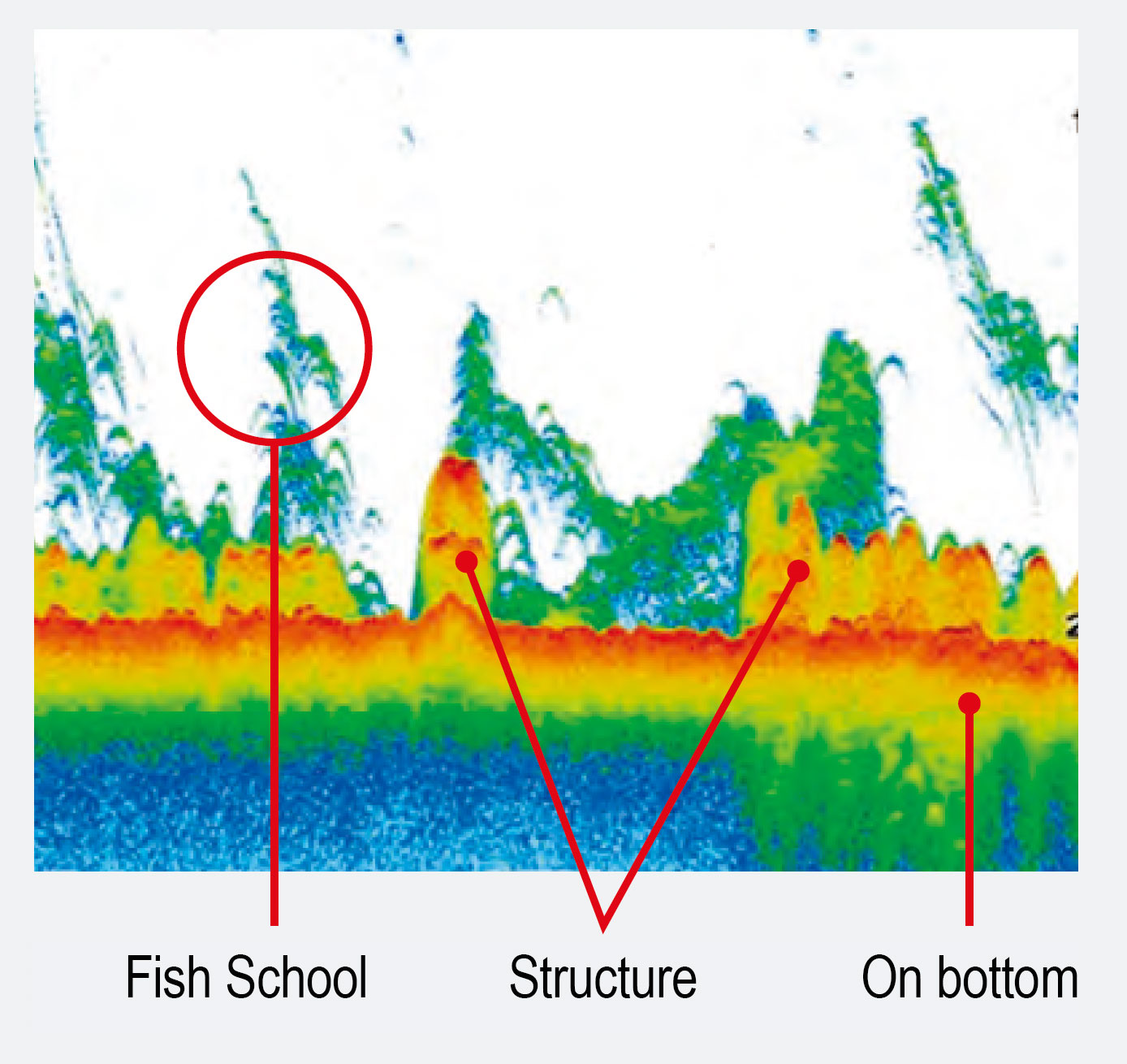

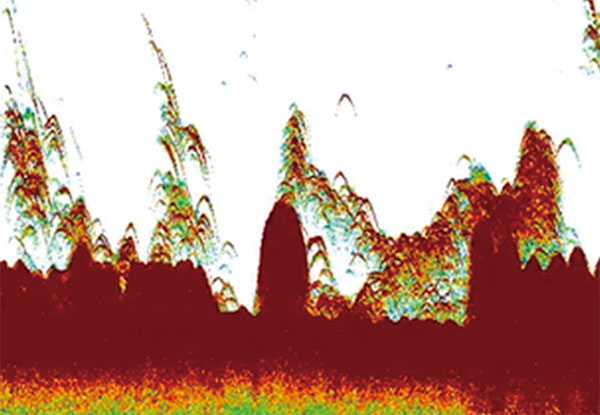

COLOR EXPANSION
With Color Range Expansion, the range of identifiable echoes is expanded so you can intuitively identify bottom fish from the seabed. Reefs, structure, and fish near the seabed are shown in slightly separated colors, making it easy to tell structure from fish at a glance.

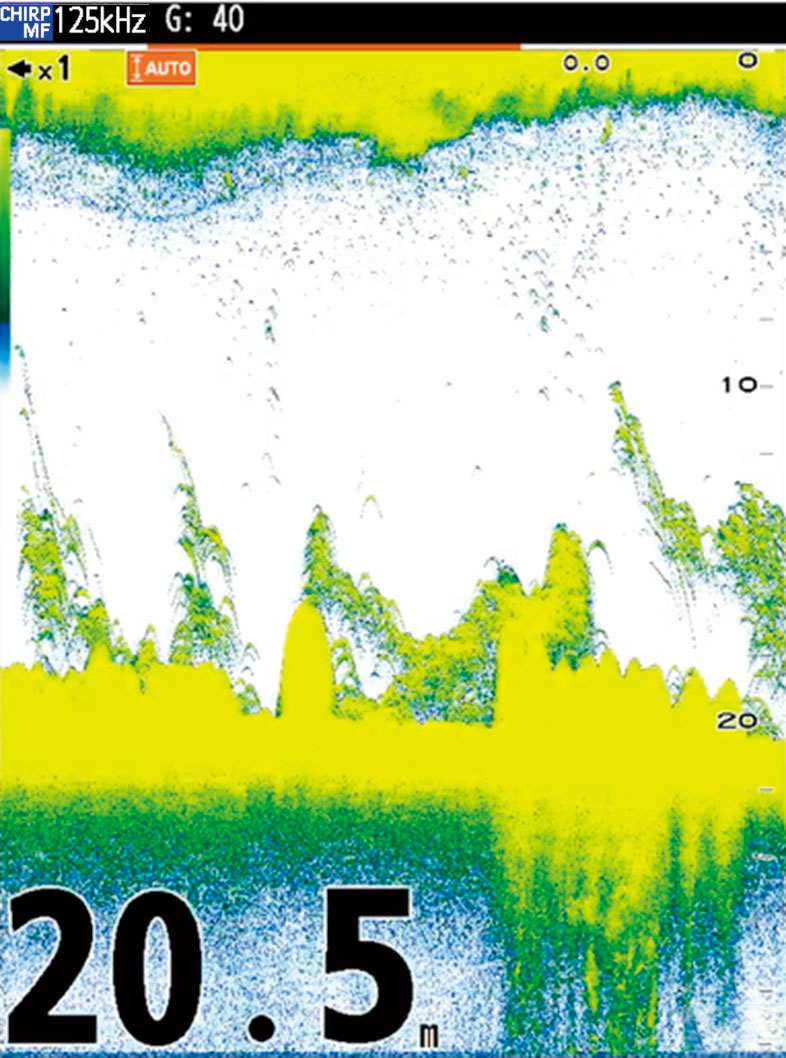

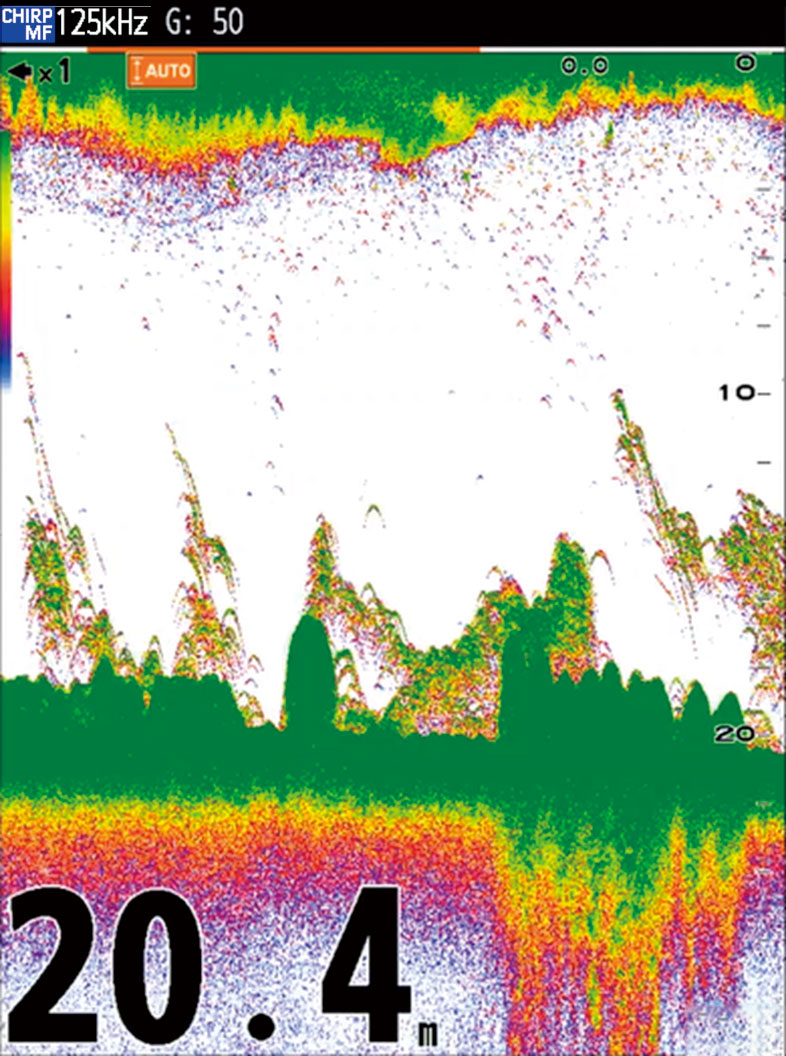

NEW Colors
Sunlight and Yellow color schemes offer enhanced visibility under bright sunlight conditions.
WIRELESS CONNECTIVITY
A second display can be installed to show the echoes and nav data from the FCV-600 and FCV-800 via wireless network, so you can monitor the underwater situation from the stern or bow while fishing.

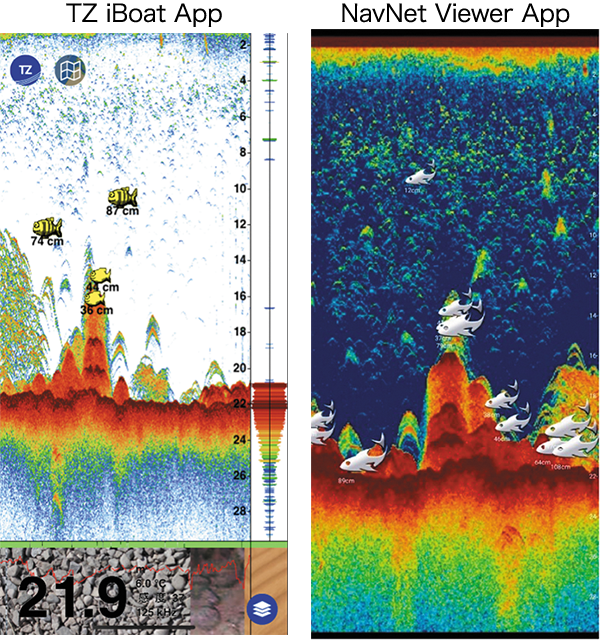

Remote Display by Apps
The FCV-600/800 has a built-in Wireless LAN that allows you to display fish finder echoes on a smart phone or tablet device. The fish finder echoes can be viewed and operated by Android™ or iOS/iPadOS devices, even from a distance inboard. The compatible applications are listed in the table below.
- When utilizing the TZ iBoat app and NavNet Viewer app, be sure to use FCV-600/800 software version V2.05 or later.

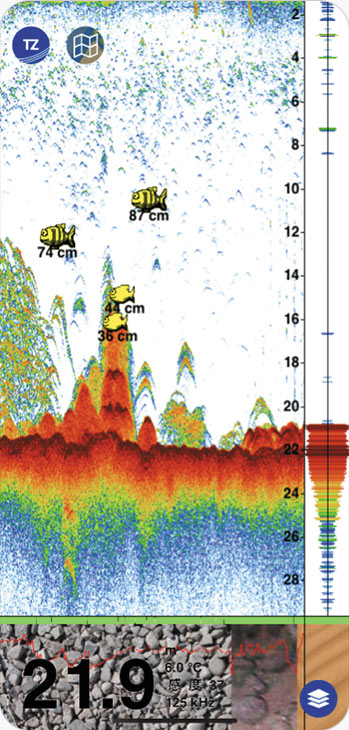

TZ iBoat

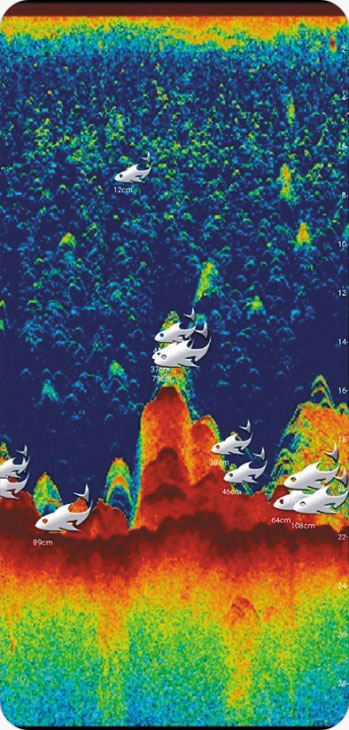

| NavNet
| |
|---|---|---|
Compatible OS | iOS/iPadOS | Android™* |
Supported OS Version | 14.2 or later | 4.0.3 or later |
App Version | 3.0.9 or later | 1.0.12.8 or later |
Price | Download: Free of charge | Free of charge |
Download Apps |
|
|
App Download Manual | ||
- The available applications differ depending on the device OS. Also, the fish finder echoes displayed on each application are slightly different from those displayed on the FCV-600/800.

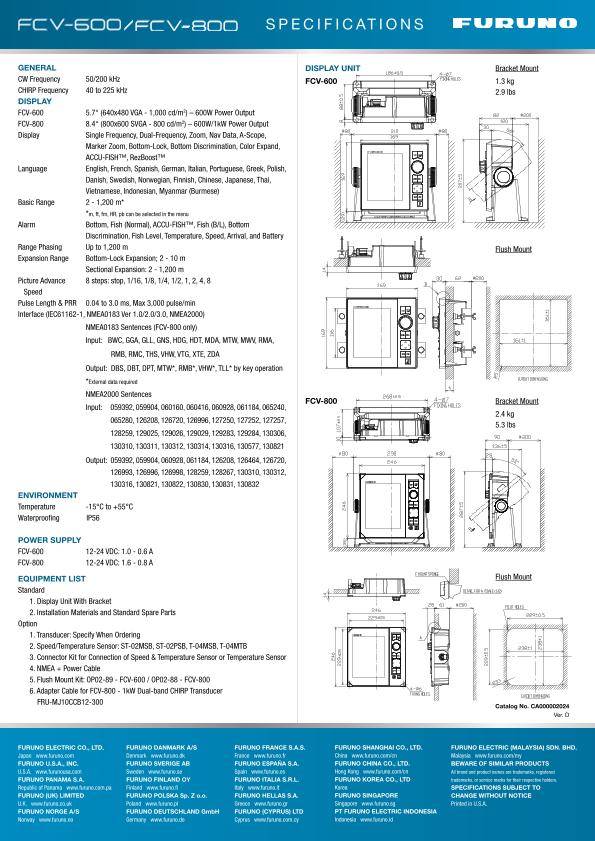

Specifications
Display
Display Unit
8.4" TFT color LCD
Pixel Number
SVGA 800 x 600
Fish Finder
Frequency
CW: 50 and 200 kHz
CHIRP: 40 to 225 kHz
Transducer
300 W / 600 W / 1 kW
Range Scale
2 - 1200 m
Pulselength & PRR
0.04 to 3.0 ms, Max 3,000 pulse/min
Display Modes
Single Frequency, Dual-Frequency, Zoom, Nav Data, A-Scope, Marker Zoom, Bottom-Lock, Bottom Discrimination, Color Expand, ACCU-FISH™, RezBoost™
ACCU-FISH™
◯
Bottom Discrimination
◯
OTHERS
Waterproofing
IP56
Power Supply
12-24 VDC: 1.6 - 0.8 A
Size
290 (W) x 281 (H) x 136 (D) mm
Weight
2.4 kg (w/Bracket Mount)
Equipment List
Standard
Display Unit With Bracket
1 UNIT
Installation Materials and Standard Spare Parts
1 SET
Option
CW TRANSDUCER (600 W)
520-5PSD, 520-5MSD, 520-PLD, 525-5PWD, 525STID-PWD, 525STID-MSD, 525T-PWD, 525T-BSD, 525T-LTD/12, 525T-LTD/20, SS60-SLTD/12, SS60-SLTD/20
CW TRANSDUCER (1 kW)
50B-6, 50B-6B, 50/200-1T, 200B-5S, 526TID-HDD
CHIRP TRANSDUCER (Single Frequency: 300 W)
B75L, B150M, P95M, SS75L, TM150M
CHIRP TRANSDUCER (Single Frequency: 600 W)
B75H, B75HW, B75M, B785M, P75M, SS75H, SS75M,TM165HW
CHIRP TRANSDUCER (Single Frequency: 1 kW)
B175L, B175M, TM185M, B285M, B175H, B175HW, TM185HW, B285HW
CHIRP TRANSDUCER (Dual Frequency: 300 W/600 W)
B765LH, B765LM
CHIRP TRANSDUCER (Dual Frequency: 1 kW)
B265LH, TM265LH, CM265LH, B265LM, TM265LM, CM2265LM, B275LHW , TM275LHW, CM275LHW
SPEED/TEMPERATURE SENSOR
ST-02MSB, ST-02PSB(USA), T-04MSB, T-04MTB
Connector Kit for Connection of Speed & Temperature Sensor or Temperature Sensor
NMEA + Power Cable
FLUSH MOUNT KIT
OP02-88 - FCV-800
Adapter Cable for FCV-800
FRU-MJ10CCB12-300 for dual CHIRP transducer

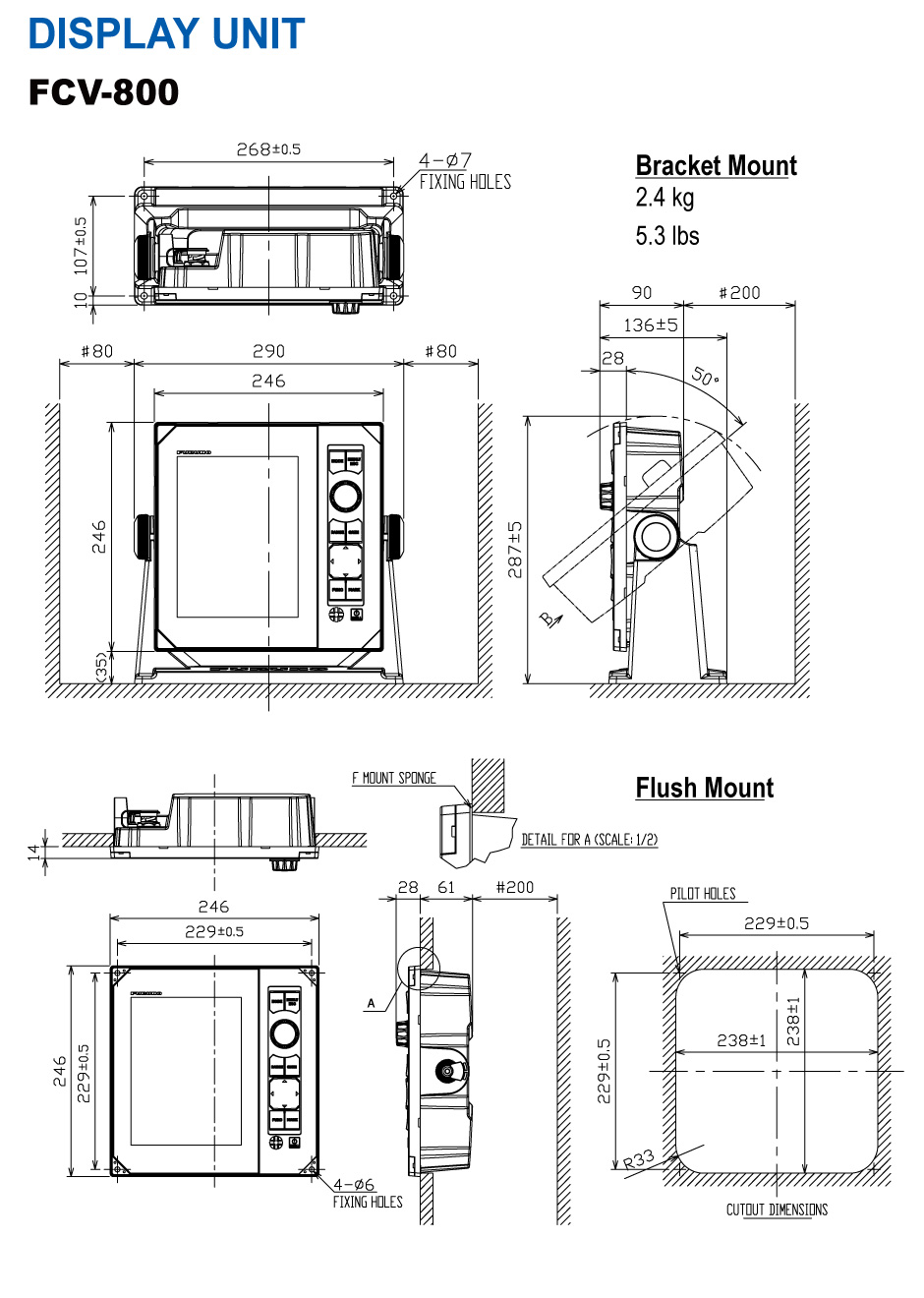

Drawing
Downloads
| Name | Last update |
|---|---|
| Jan 20, 2026 | |
| Apr 13, 2026 | |
| Mar 18, 2024 | |
| Mar 18, 2024 | |
| Apr 18, 2024 |
| Name | Remarks |
|---|---|
|
|
Distributors of Marine Equipment
Contact a local distributor for further details.
- Specifications subject to change without notice.
Fish Finder Product List

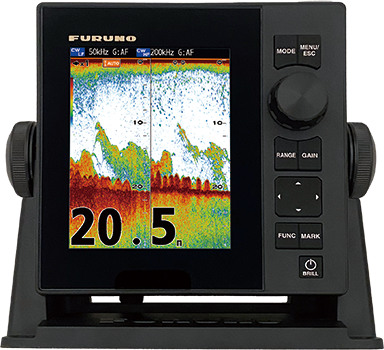

5.7" COLOR LCD FISH FINDER
Model
FCV-689

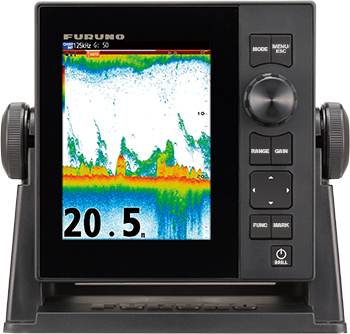

5.7" COLOR LCD FISH FINDER
Model
FCV-600
8.4" COLOR LCD FISH FINDER
Model
FCV-800

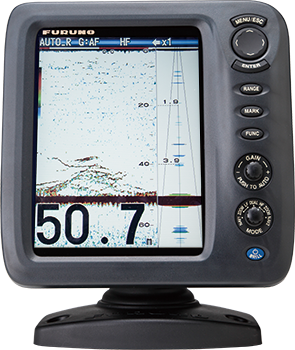

8.4" COLOR LCD FISH FINDER
Model
FCV-588

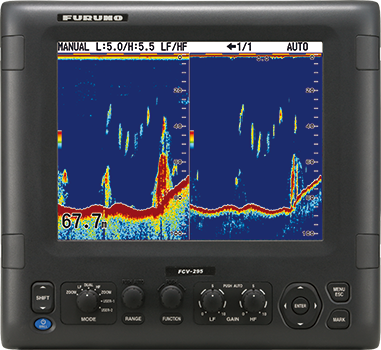

10.4" COLOR LCD SOUNDER
Model
FCV-295
12.1" COLOR LCD SOUNDER
Model

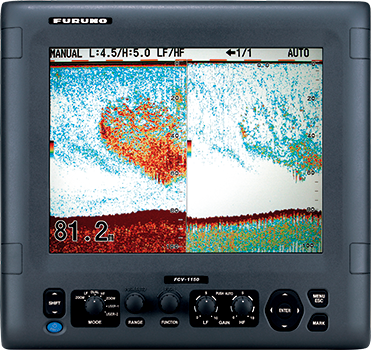

FCV-1150
FISH FINDER
Model
FCV-1900
HI-RES TruEcho CHIRP FISH FINDER
Model
FCV-1900B

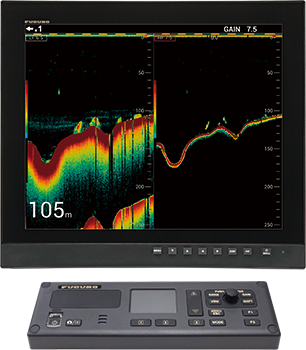

TruEcho CHIRP WITH UNIQUE FISH SIZE INDICATOR
Model

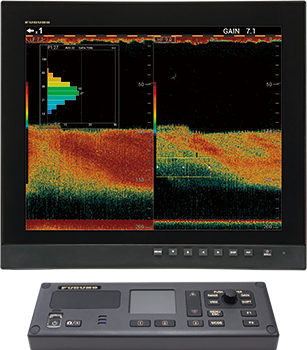

FCV-1900G
TruEcho CHIRP WITH FISH SIZE INDICATOR
Model
FCV-2100-MARK-2
STABILIZED FISH SIZE INDICATOR
Model

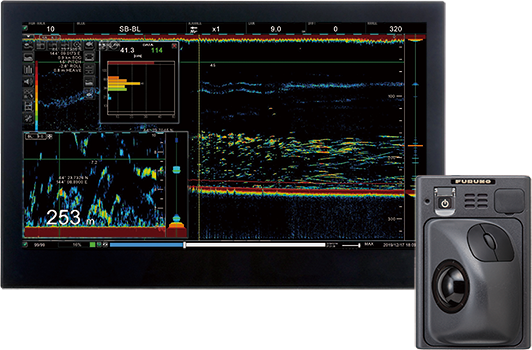

FCV-38
FISH SPECIES AND BIOMASS SOUNDER
Model
FSS-3BB
NETWORK FISH FINDER
Model

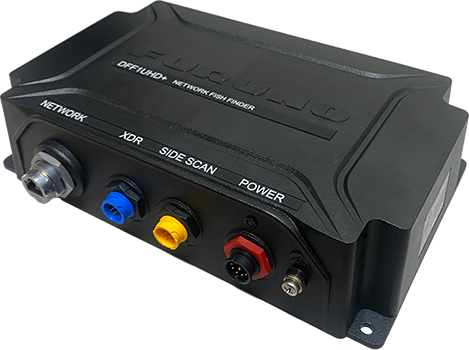

DFF1UHD+
BLACK BOX NETWORK SOUNDER
Model

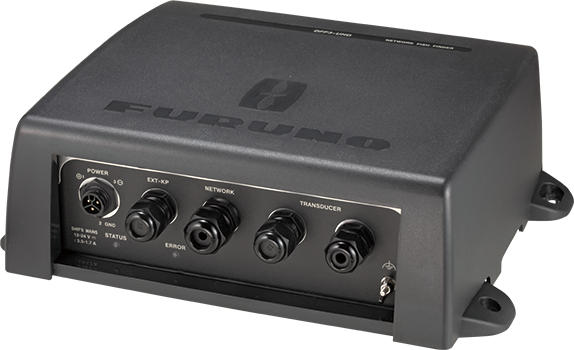

DFF3-UHDThere are no products that meet the conditions.
