HI-RES TruEcho CHIRP FISH FINDER

Model FCV-1900B

High resolution echoes from shallow to deep waters

FCV-1900B Hi-Res TruEcho CHIRP Fish Finder allows you to see echoes that would otherwise not have been visible.

Fishing Vessels

Downloads

Features
Screenshots
Specifications
Equipment List

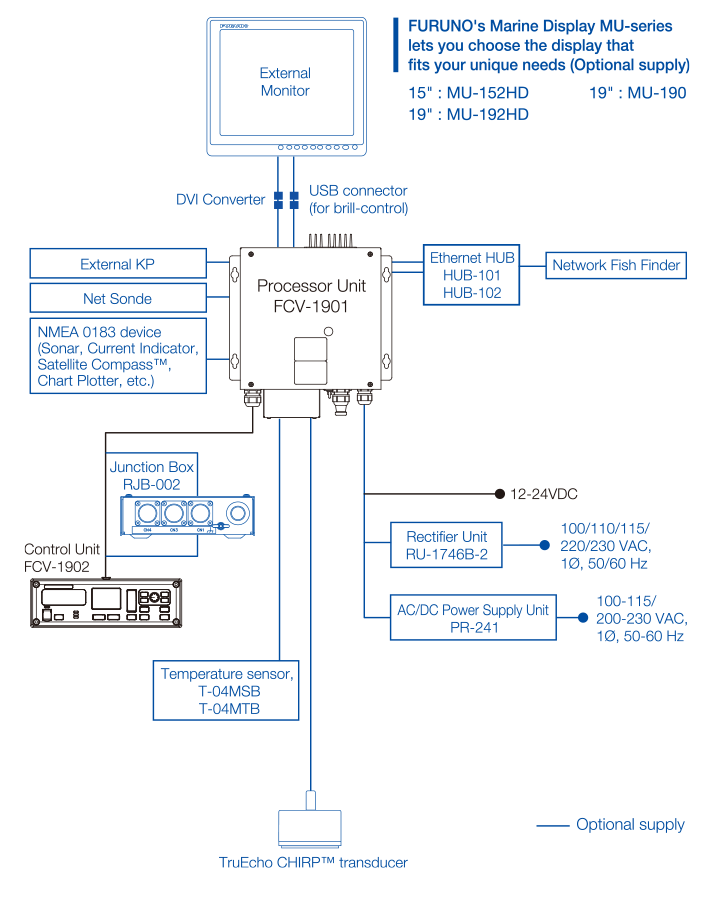

Interconnection Diagram
Downloads
Contact

Features

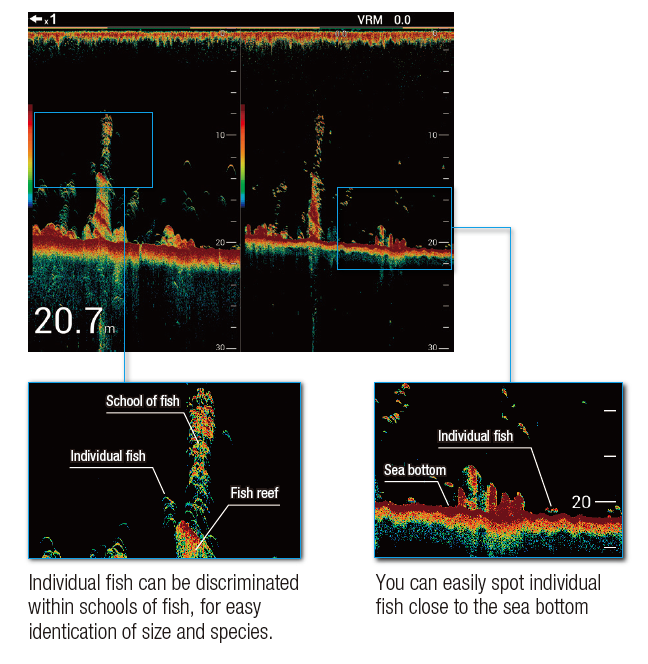

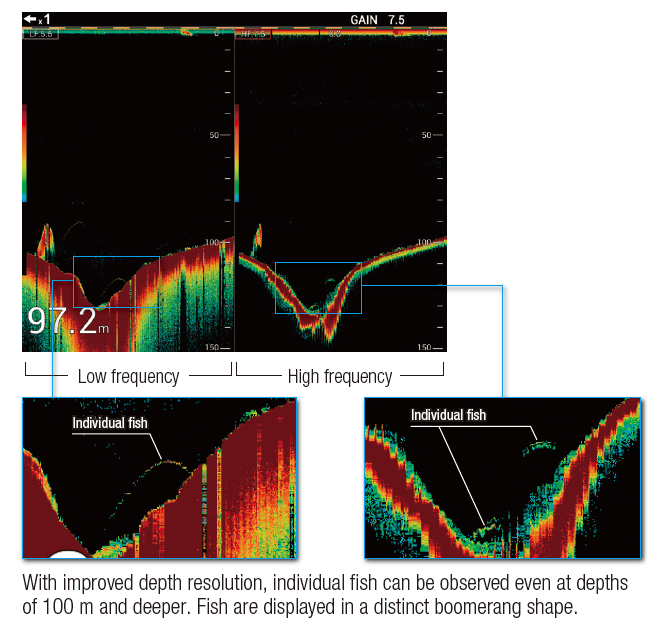

High resolution echoes from shallow to deep waters made possible with TruEcho CHIRP™ technology

FCV-1900B Hi-Res TruEcho CHIRP Fish Finder allows for incredible performance when it comes to detecting fish close to the seabed as well as discriminating individual fish in densely packed schools of fish.

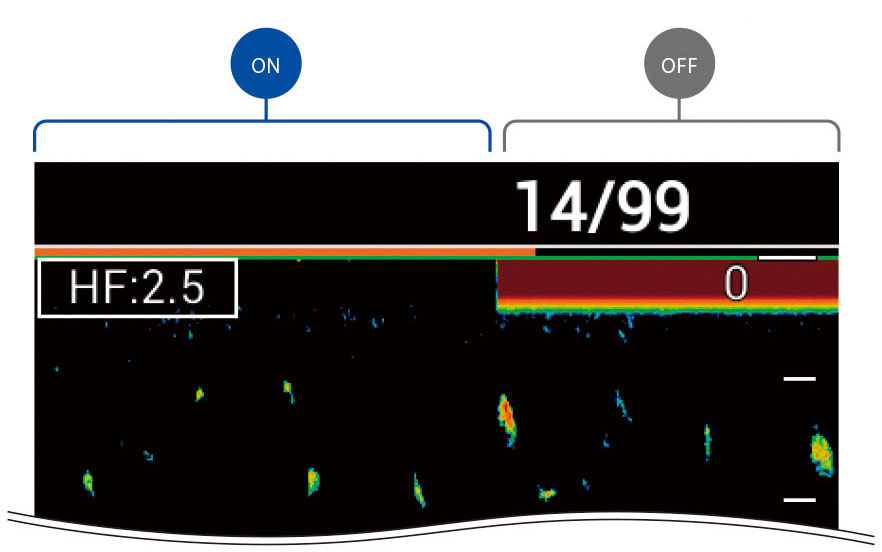

Zero Line Rejection

Observe clear echoes from just 3 meters below your vessel with Zero Line Rejection, allowing you to better analyze the water column from near to far.

FURUNO Free Synthesizer transceiver for adjustable operating frequency

Retrofitting is made easy. With FFS technology, you can easily replace an FCV-1200L processor unit while utilizing the same transducer for convenient installation.

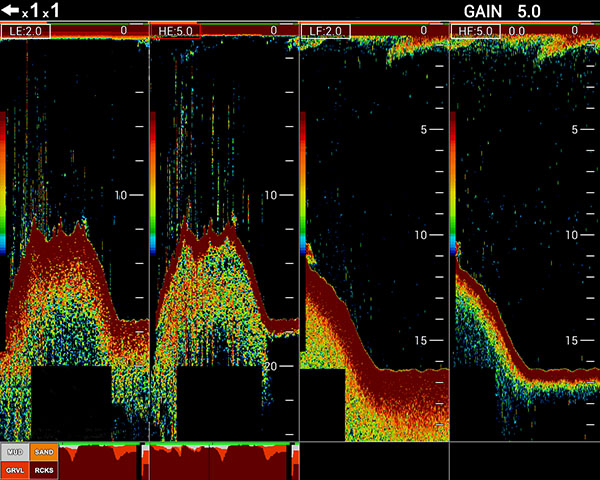

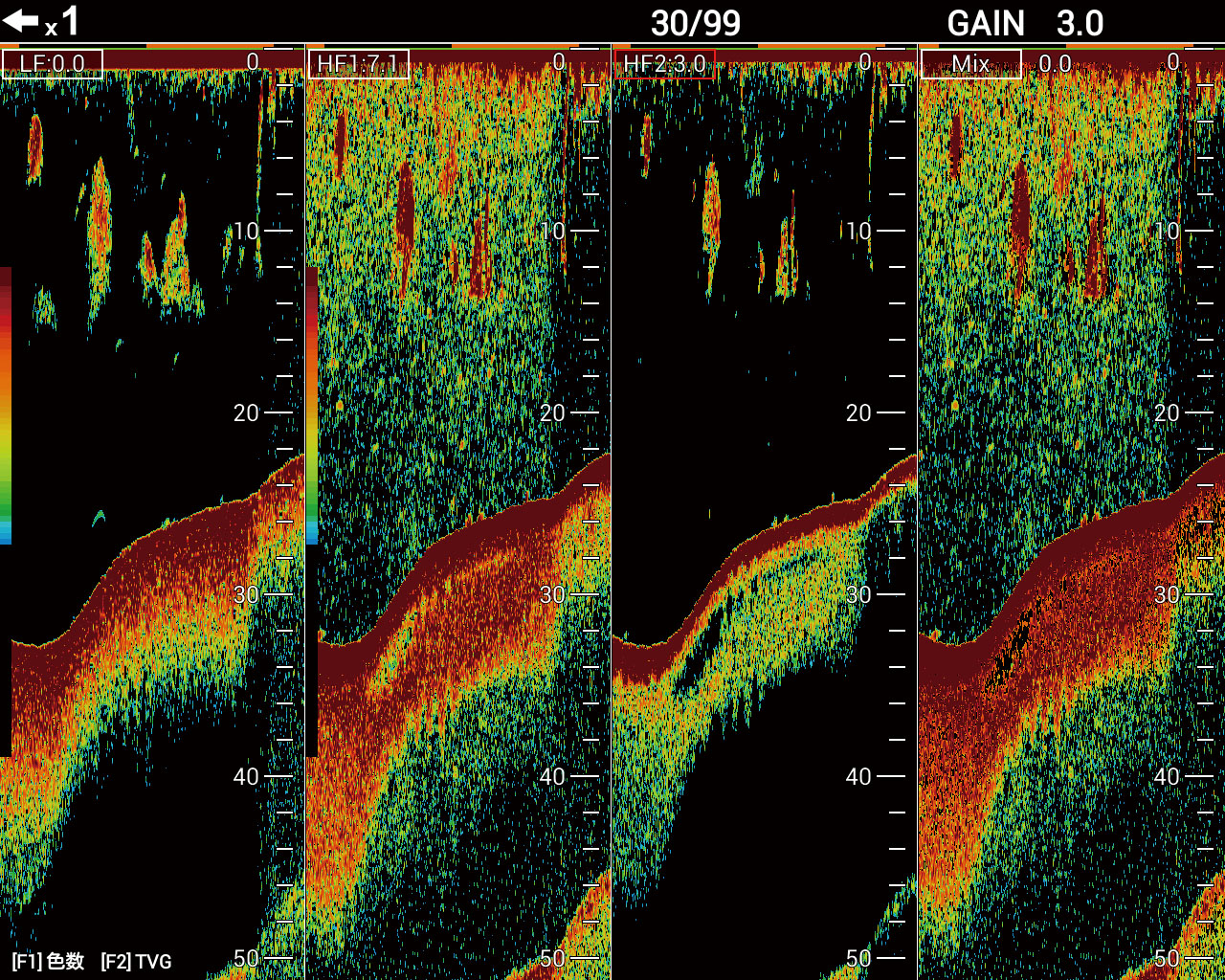

Display up to four different frequencies

Display up to four different frequencies together in a compact and easy way by connecting a required network fish finder. Since there is no need to install additional displays, this system is especially useful for small vessels.

Simultaneous gain setting for increased visibility

Display two different gain settings simultaneously for increased visibility in changing water conditions and when changing vessel speed.

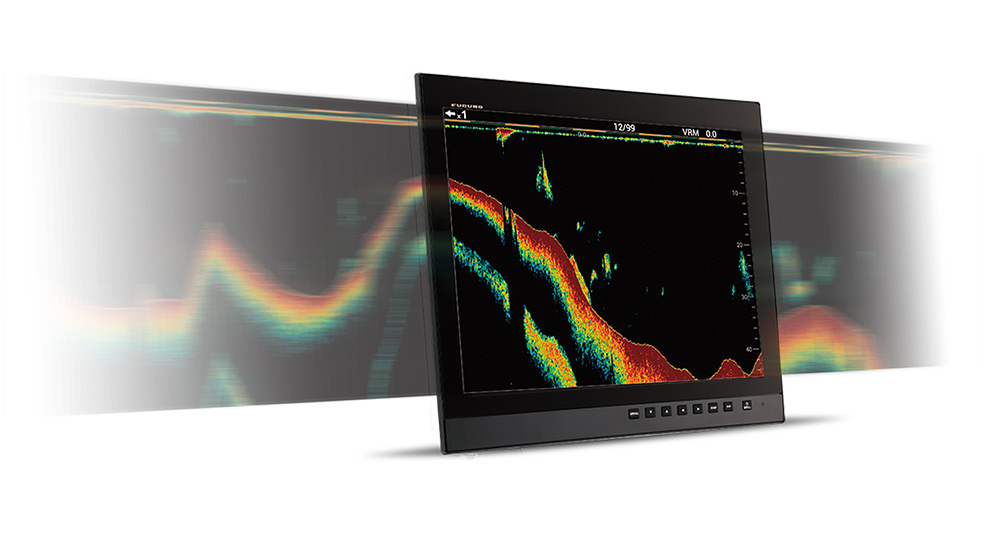

Scroll back function

With the press of a button you can activate the scroll back function to instantly review past echoes. Up to two previous screens can be viewed.

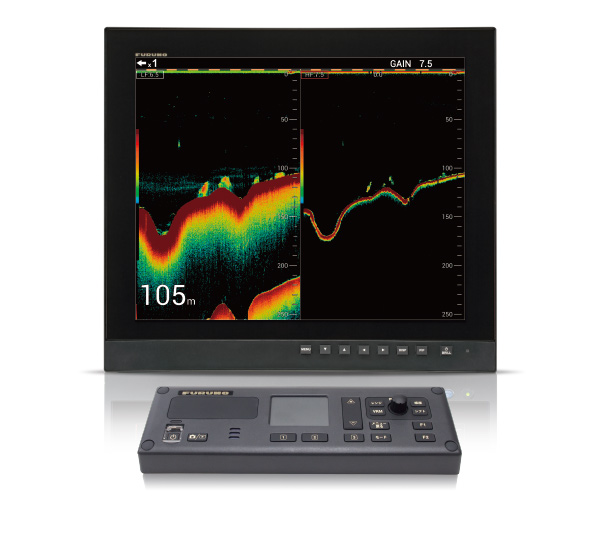

Improved control unit for simple and intuitive operation

The control unit features a water resistant touch pad that works even when wearing rubber gloves. You can use the touch pad for setting up VRM and TLL in an instant.

Upgrade to FCV-1900G with Unique Fish Size Indicator

By purchasing and installing a software license you can upgrade your FCV-1900B Hi-Res TruEcho CHIRP Fish Finder to a FCV-1900G TruEcho CHIRP with Unique Fish Size Indicator*. For further details, please contact your local FURUNO national distributor.

TruEcho CHIRP™ compatible transducer required.

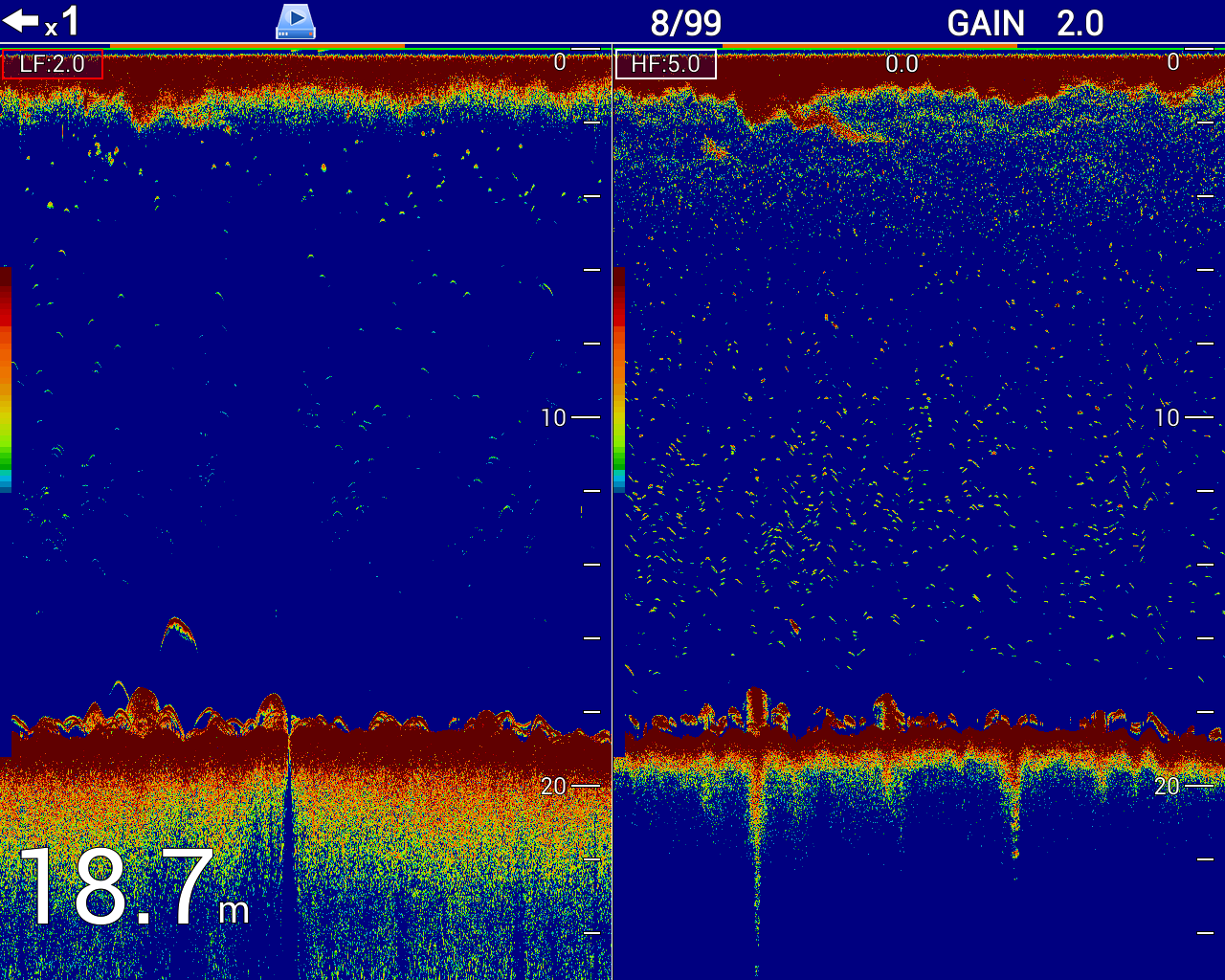

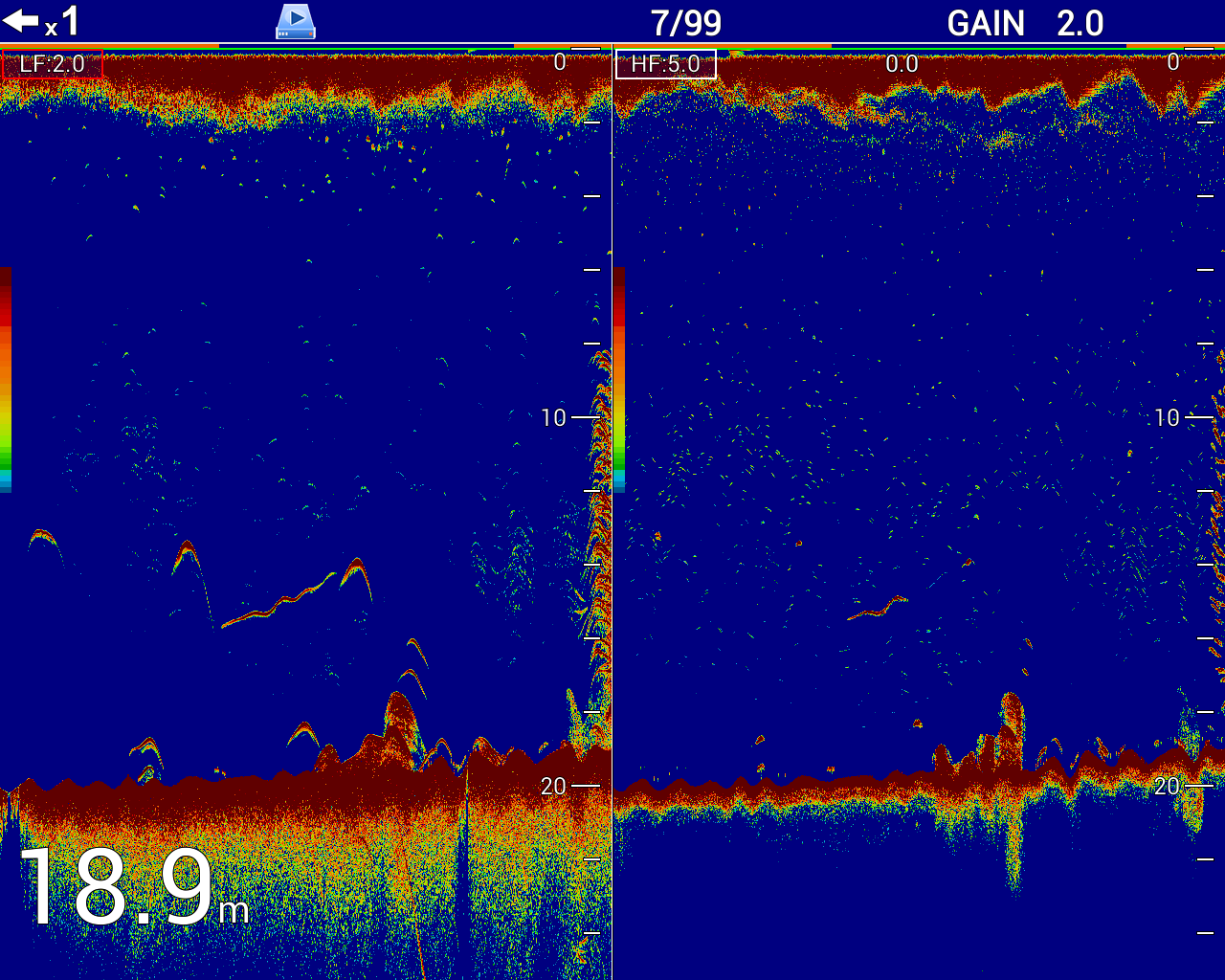

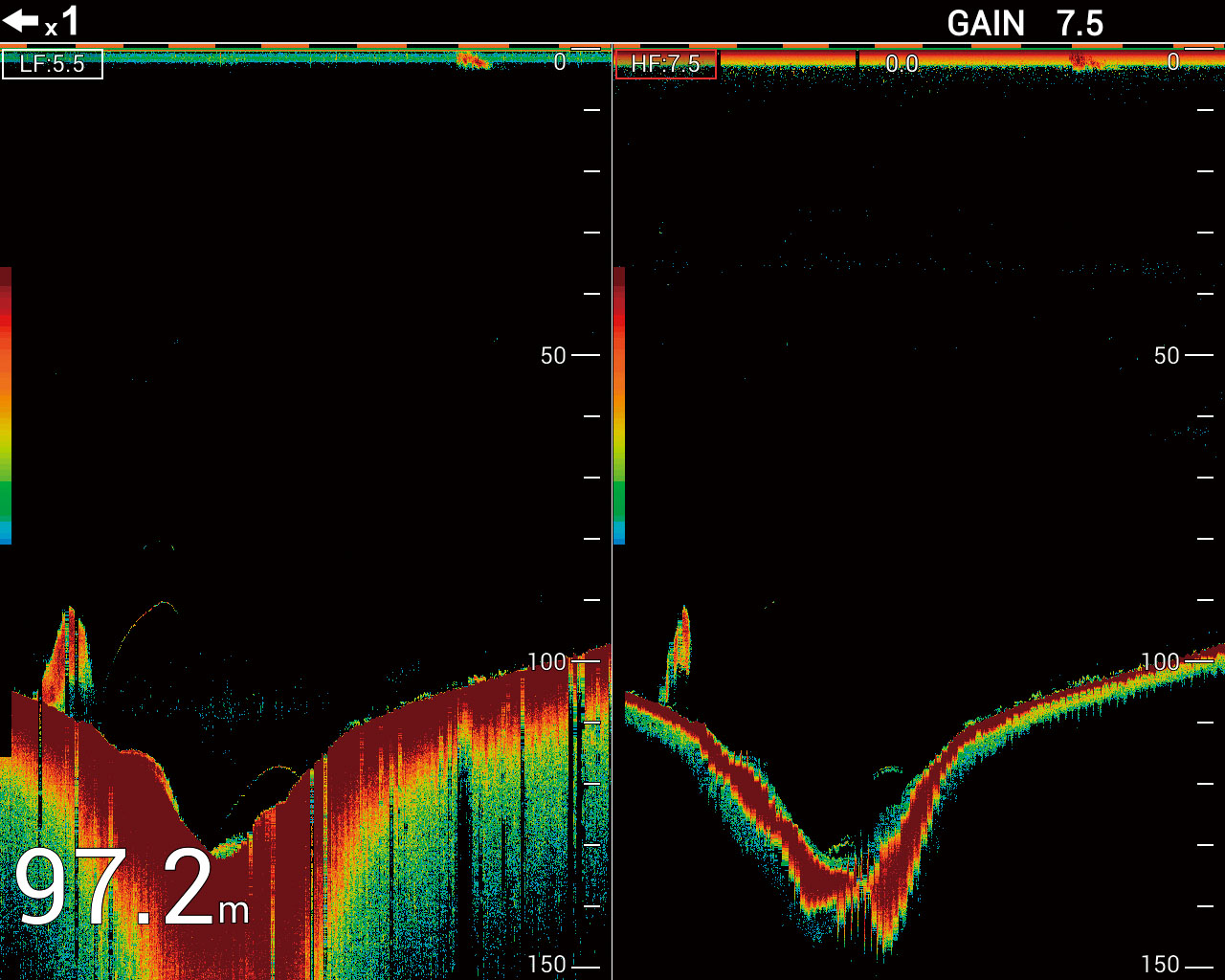

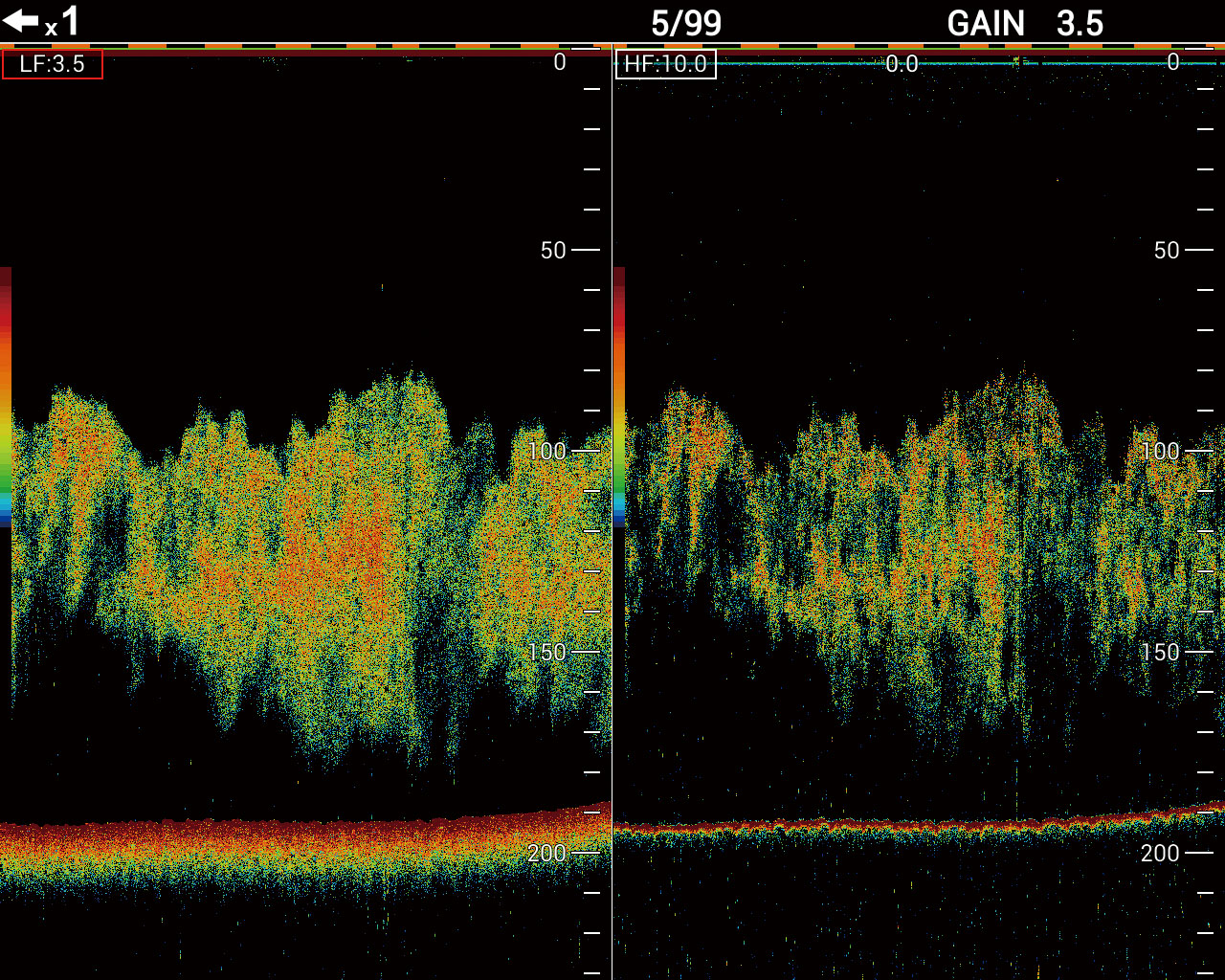

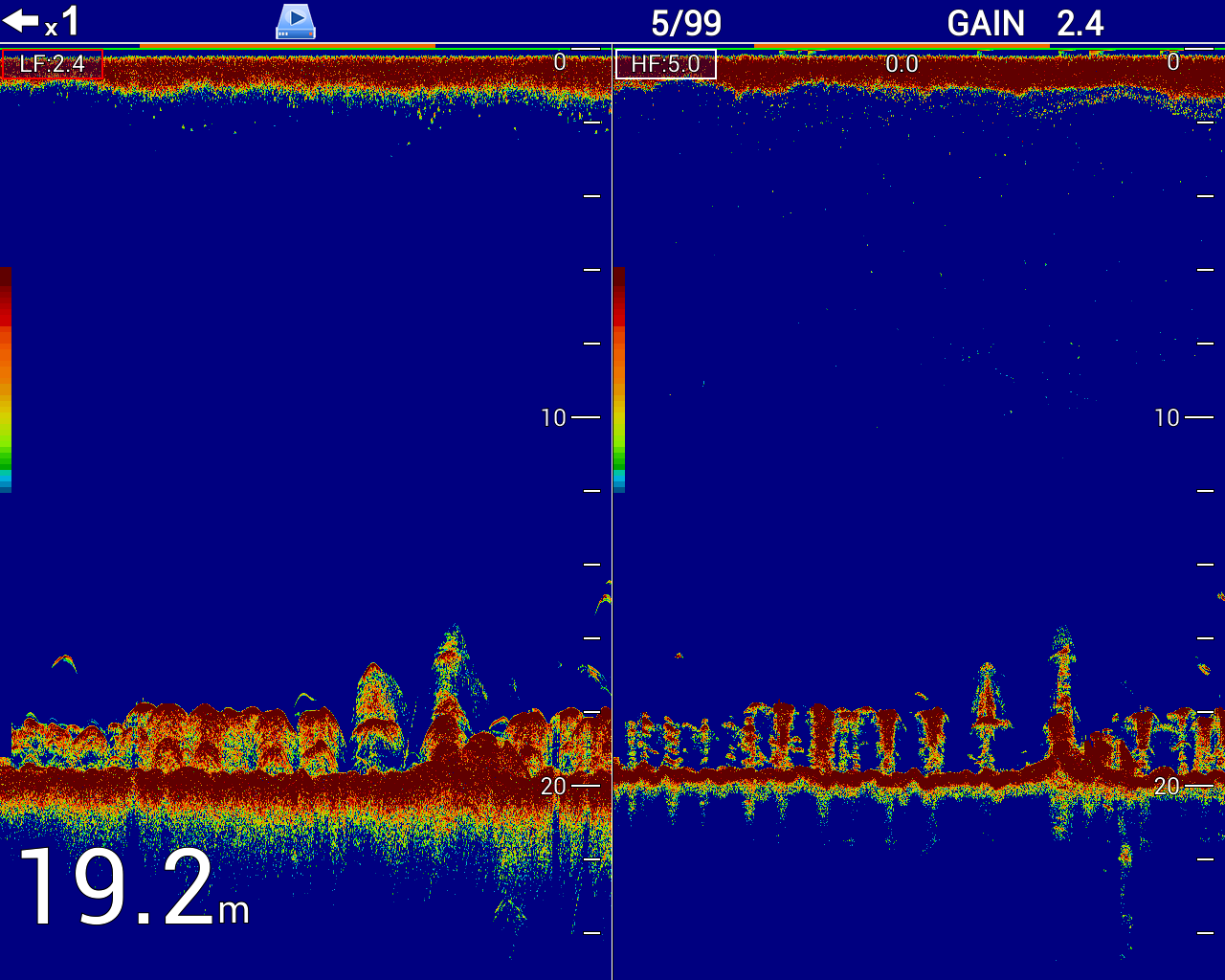

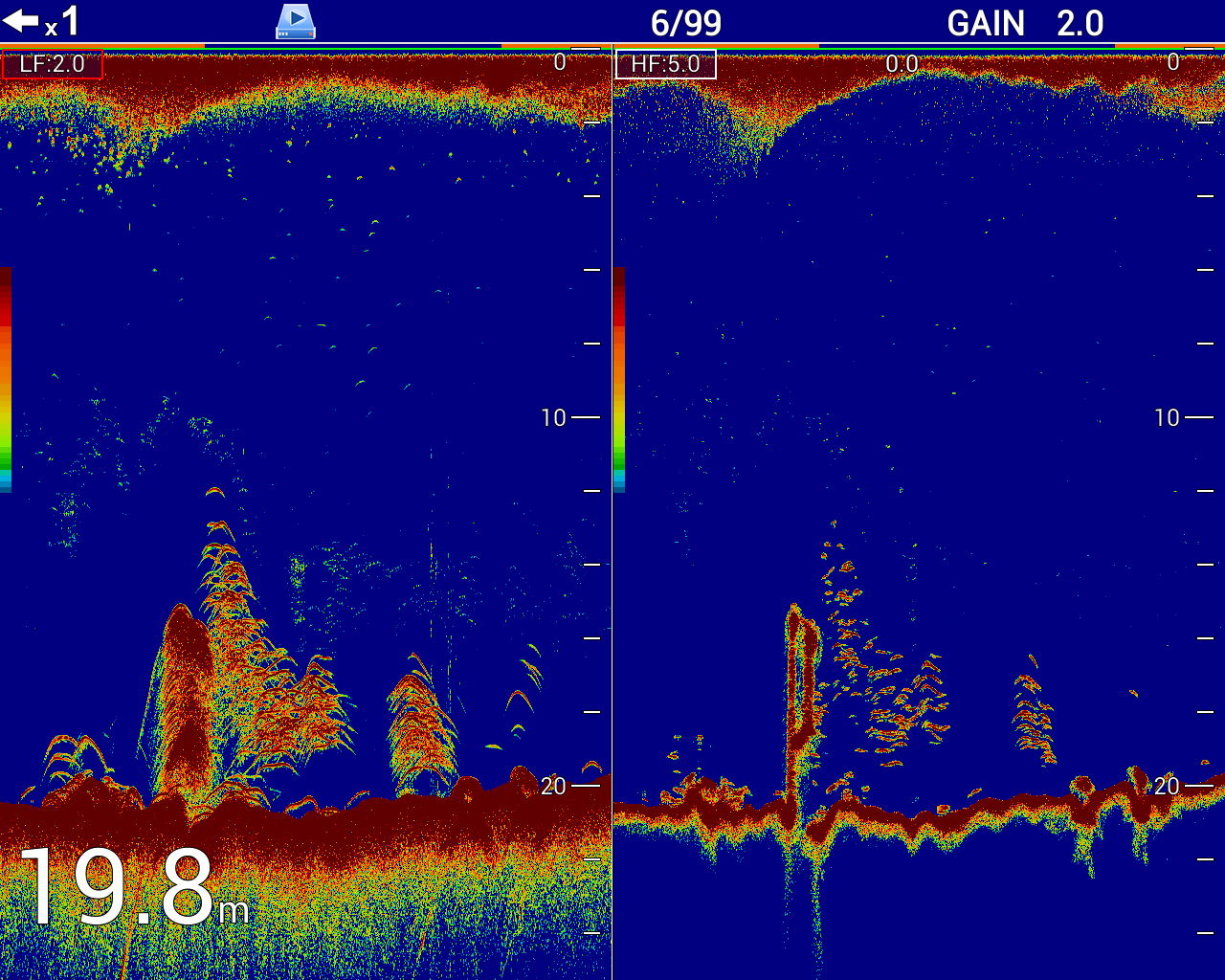

Screenshots

Specifications

Display

Pixel Number

Landscape XGA (1024 x 768)
Landscape SXGA (1280 x 1024)
Landscape FHD (1920 x 1080)
Portrait SXGA (1024 x 1280)

Fish Finder

Frequency

15 kHz to 200 kHz, Free Syntheziser

Transducer

1, 2 or 3 kW

Range Scale

Depth range : 5 to 3000 m
Expansion range : 2 to 200 m

Pulselength & PRR

10 to 2700 pulses/min (5 to 3000 m range, normal mode)

Display Modes

Single mode (high/low frequency), Dual-frequency, Zoom, User 1/2
User 1/2 available to use mixture, multi-gain, telesounder and external sounder display

Range Shift

2000 m max.

ACCU-FISH™

2 m depth or more, specified transducer required

Bottom Discrimination

Range : 5 to 100 m, Speed : 10 kn or less, BBDS1 required
