• Fish Finder

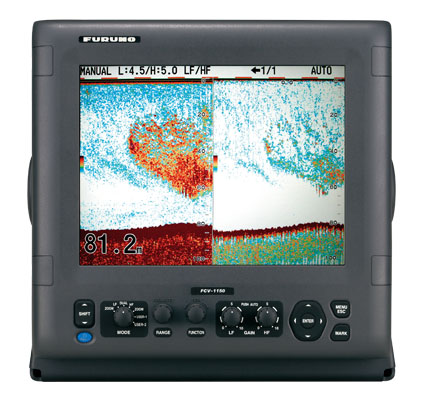

12.1" COLOR LCD SOUNDER

Model FCV-1150

High performance 12.1 LCD digital fish finder delivers super clear view of fish targets!

The FCV-1150 is a color digital sounder designed for a variety of professional fishing operations. It’s high-brightness color LCD with AR coated glass filter provides superior, glare-free viewing even in direct sunlight.

  • Fishing Vessels、Workboats、Recreational Boats

Features

12.1 LCD with AR coated glass filter and anti-polarized sunglass filter

Post-processing gain control applies changes to gain setting to all existing returns on the display

White Edge bottom discrimination

Available Heaving Compensation provides stable echo presentation even in rough seas

FURUNO Digital Filter delivers crystal clear target presentation

Furuno Free Synthesizer (FFS) allows for adjustable operating frequency

Screenshots

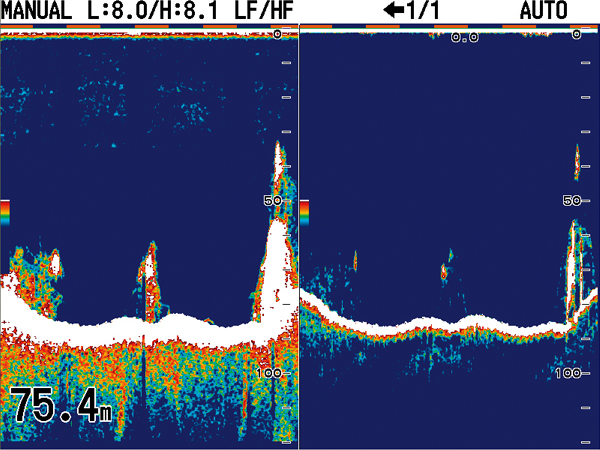

WHITELINE

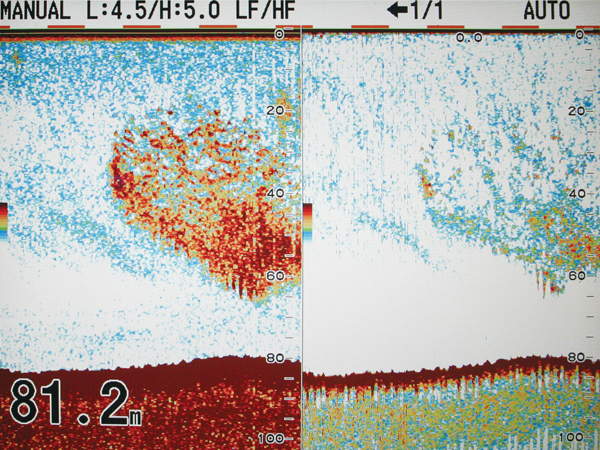

DUAL

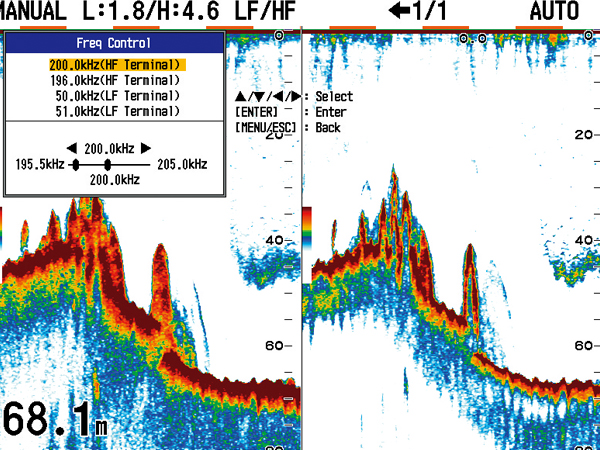

OPERATING FREQUEN ADJUSTMENT

Specifications

Display

Display Unit

12.1" TFT color LCD

Pixel Number

800 × 600

Fish Finder

Frequency

The synthesized transreceiver works with dual frequencies in 28 to 200 kHz

Transducer

1, 2 or 3 kW

Range Scale

5-3000 m

Pulselength & PRR

20-3000 pulse/min

Display Modes

Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

OTHERS

Waterproofing

IP55 (When flush mounted)

Power Supply

12-24 VDC: 3.3-1.7 A
100/110/220/230 VAC,
optional rectifier required

Size

345 (H) x 356 (W) x 199 (D)

Weight

Bracket Mount: 8.2 kg
Flush Mount: 6.8 kg

Equipment List

Standard

DISPLAY UNIT FCV-1150-E

1 UNIT

STANDARD SPARE PARTS, INSTALLATION MATERIALS,
ACCESSORIES AND MANUALS

1 SET

Option

1 KW TRANSDUCER

200B-5S (10 M)
28F-8
50B-6 (10 M)
50B-6B (15 M)
50B-9B
88B-8

2 KW TRANSDUCER

200B-8
200B-8B
28BL-6HR
28F-18
38BL-9HR
50B-12
50BL-12
50BL-12HR
82B-35R
88B-10

3 KW TRANSDUCER

28BL-12HR
28F-24H
38BL-15HR
50BL-24H
50BL-24HR
50F-24H
68F-30H

5 KW
TRANSDUCER

200B-12H
88F-126H

DUAL FREQUENCY TRANSDUCER
50/200-1T (RUBBER)

1 KW

2P TWISTED PAIR CABLE

5M、10M、15M

SIGNAL CABLE ASSEMBLY

5M

ADAPTOR CABLE ASSY
THRU-HULL PIPE

NO.4
NO.5
NO.6 (2 holes)
NO.7 (2 holes)
NO.11 (2 holes)

RECTIFIER (CHINA)

PR-62
(100 VAC/220 VAC)

SPEED/TEMPERATURE SENSOR
ST-02MSB (USA)

10M

SPEED/TEMPERATURE SENSOR
ST-02PSB (USA)

10M

TEMPERATURE SENSOR
T-02MSB

10M

TEMPERATURE SENSOR
T-02MTB

10M

TEMPERATURE SENSOR
T-03MSB

10M

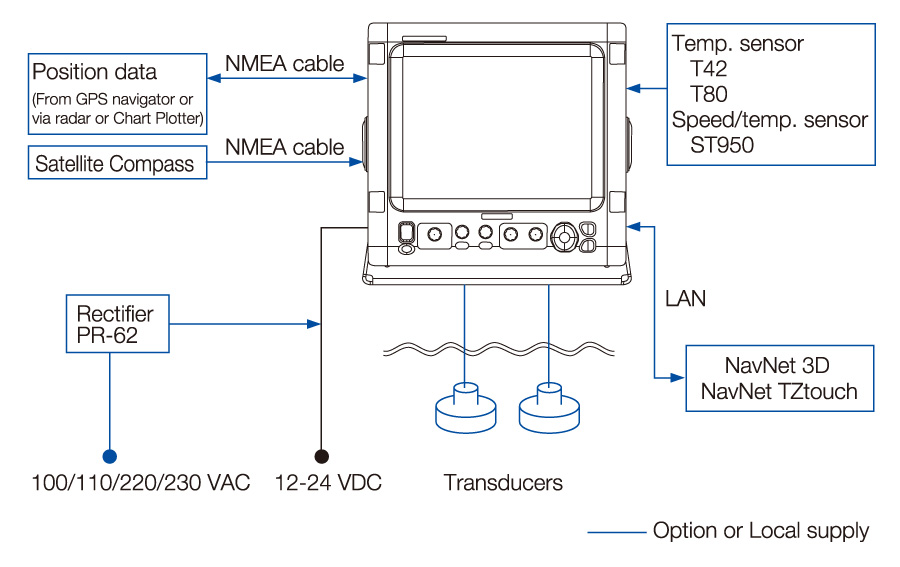

Interconnection Diagram
