• Fish Finder

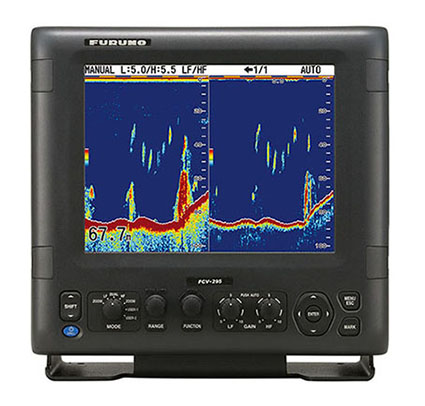

10.4" COLOR LCD SOUNDER

Model FCV-295

New digital fish finder delivers crystal clear image of fish targets and bottom structure

The FCV-295 is a color digital sounder designed for a variety of professional fishing operations. It features a bonded 10.4 LCD display providing superior viewing even in direct sunlight. You can display echoes in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo.

  • Fishing Vessels、Workboats、Recreational Boats

Features

10.4"bonded color LCD provides clear view in any weather conditions

Post-processing gain control applies to all existing returns on the display

White Edge function trace the bottom contour with a thin white line

FURUNO Digital Filter delivers crystal clear target presentation

FURUNO Free Synthesizer transceiver allows adjustable operating frequency

Screenshots

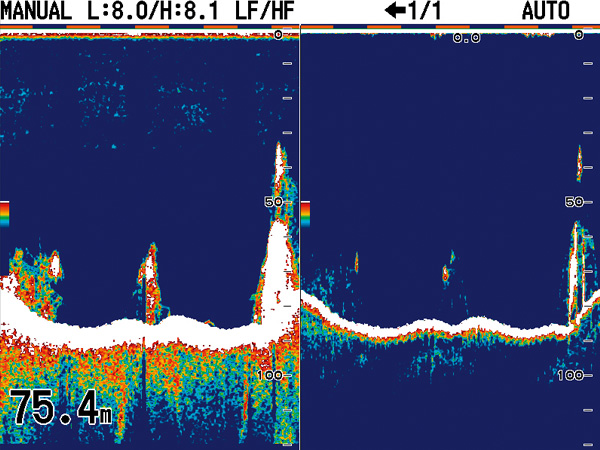

WHITELINE

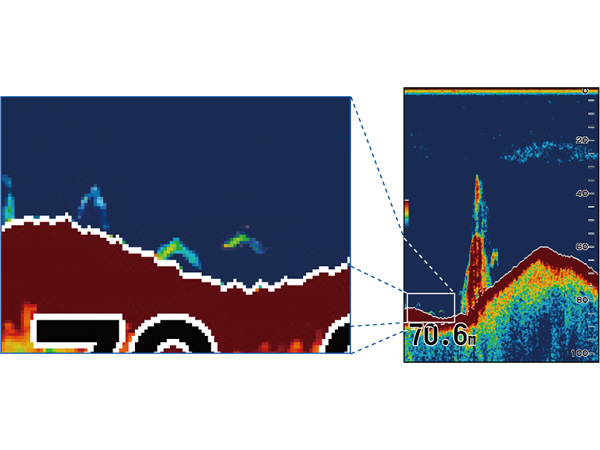

WHITELINE ZOOM

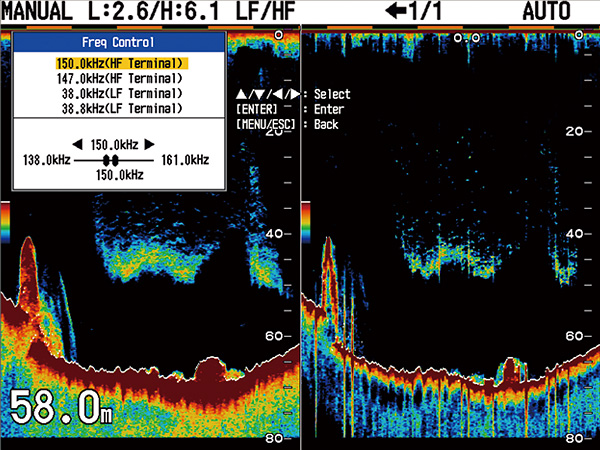

OPERATING FREQUEN ADJUSTMENT

Specifications

Display

Display Unit

10.4" TFT color LCD

Pixel Number

640 x 480

Fish Finder

Frequency

The synthesized transreceiver works with dual frequencies in 28 to 200 kHz

Transducer

1, 2 or 3 kW

Range Scale

5-3000 m

Pulselength & PRR

20-3000 pulse/min

Display Modes

Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

OTHERS

Waterproofing

IP55 (When flush mounted)

Power Supply

12-24 VDC: 2.6-1.3 A
100/110/220/230 VAC, optional rectifier required

Size

306 (H) x 323 (W) x 185 (D)

Weight

7.0 kg

Equipment List

Standard

DISPLAY UNIT FCV-295-E

1 UNIT

STANDARD SPARE PARTS, INSTALLATION MATERIALS,
ACCESSORIES AND MANUALS

1 SET

Option

1 KW TRANSDUCER

200B-5S (10 M)
28F-8
50B-6 (10 M)
50B-6B (15 M)
50B-9B
88B-8

2 KW TRANSDUCER

200B-8
200B-8B
28BL-6HR
28F-18
38BL-9HR
50B-12
50BL-12
50BL-12HR
82B-35R
88B-10

3 KW TRANSDUCER

28BL-12HR
28F-24H
38BL-15HR
50BL-24H
50BL-24HR
50F-24H
68F-30H

5 KW
TRANSDUCER

200B-12H
88F-126H

DUAL FREQUENCY TRANSDUCER
50/200-1T (RUBBER)

1 KW

2P TWISTED PAIR CABLE

5M、10M、15M

SIGNAL CABLE ASSEMBLY

5M

ADAPTOR CABLE ASSY
THRU-HULL PIPE

NO.4
NO.5
NO.6 (2 holes)
NO.7 (2 holes)
NO.11 (2 holes)

RECTIFIER (CHINA)

PR-62
(100 VAC/220 VAC)

SPEED/TEMPERATURE SENSOR
ST-02MSB (USA)

10M

SPEED/TEMPERATURE SENSOR
ST-02PSB (USA)

10M

TEMPERATURE SENSOR
T-02MSB

10M

TEMPERATURE SENSOR
T-02MTB

10M

TEMPERATURE SENSOR
T-03MSB

10M

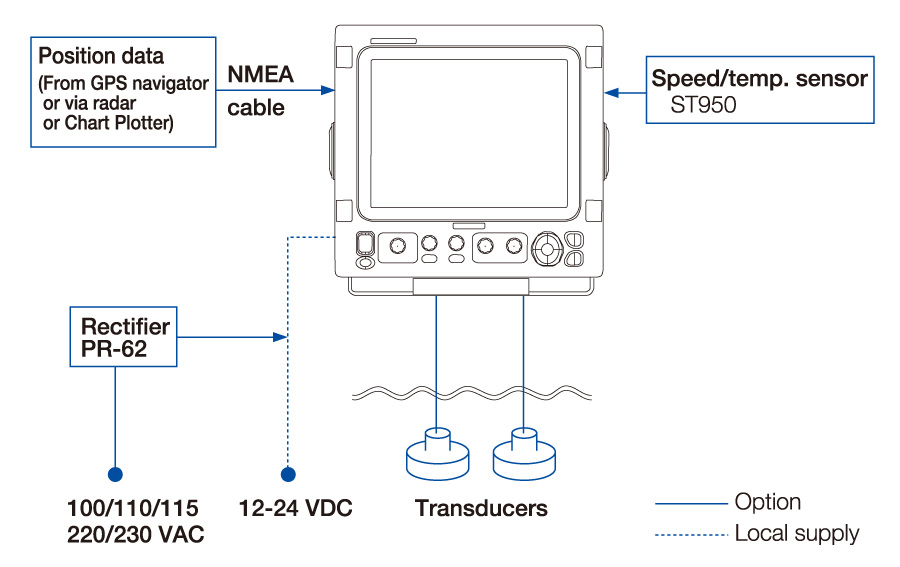

Interconnection Diagram

Downloads

FCV-295 Brochure

FCV-295 Brochure
(Last update: Mar 23, 2023)

GENERAL CATALOG 2025 (For Recreational Boats)

GENERAL CATALOG 2025 (For Recreational Boats)
(Last update: Apr 9, 2025)

Name Last update
Jul 22, 2024
Dec 15, 2020
