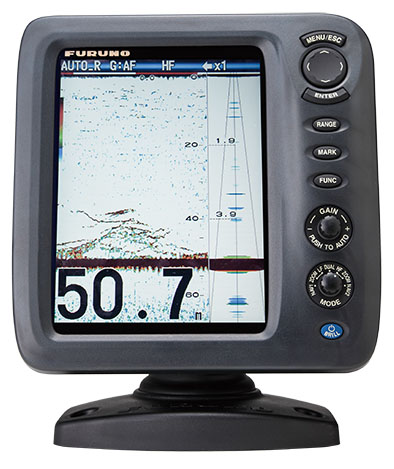

Model FCV-588

High resolution fish echoes with RezBoost™ technology!

FCV-588 uses revolutionary new RezBoost™ technology, providing an incredible boost in resolution and target separation, utilizing a compact narrowband transducer.

Fishing Vessels、Recreational Boats

Downloads

Features
Specifications

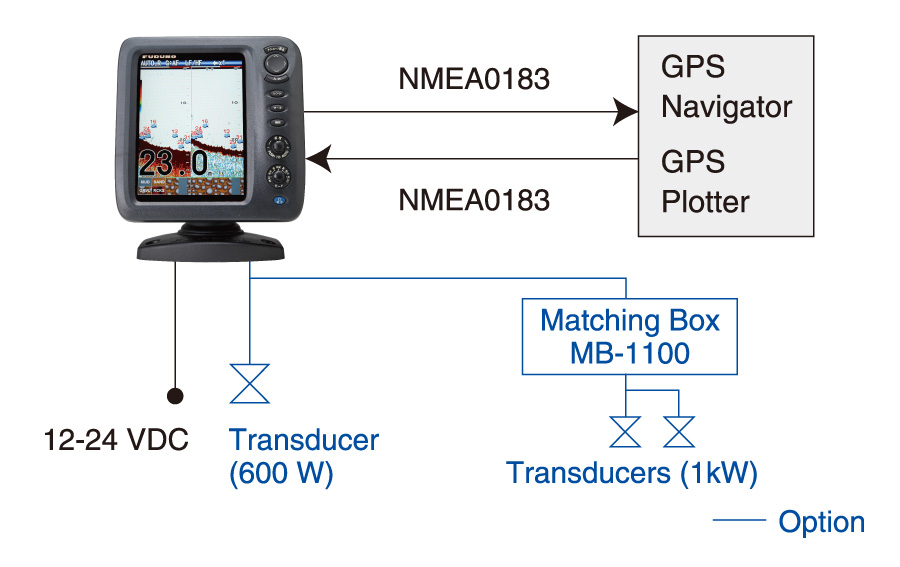

Interconnection Diagram
Downloads
Contact

Features

Dual-frequency fish finder equipped with revolutionary new RezBoost™ signal processing technology

Improved clarity and resolution that was previously impossible with conventional narrowband transducers has been made possible thanks to the new RezBoost™ technology.

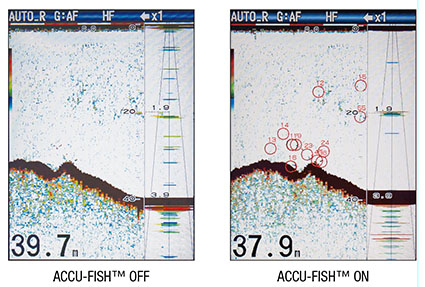

ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology

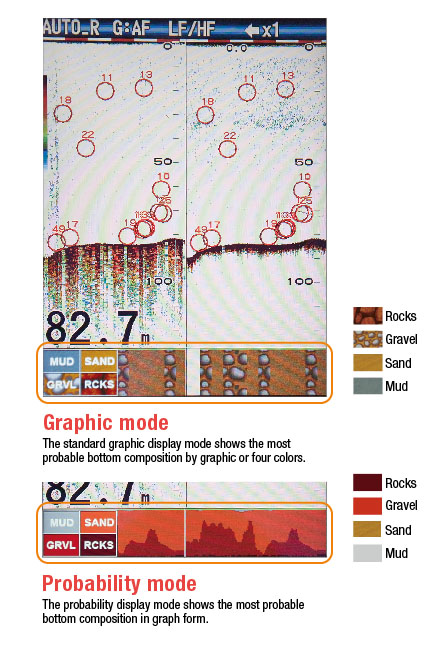

Bottom Discrimination - Analyze bottom structure

Provides an at-a-glance recognition of bottom composition with four types of graphical displays
(Rocks/Sand/Gravel/Mud) when connected to a supported thru-hull or transom mount transducer.

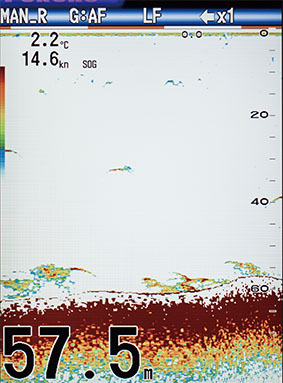

White Line feature - Discriminate fish lying near the bottom

The top edge of the bottom echo is displayed in white to clearly show bottom structures. This feature helps to discriminate between weeds and bottom fish distincly.

Configurable Alarm function (depth, fish echoes, etc.)

Share and display information on a chart plotter*

FURUNO's TLL (Target Lat/Lon) output allows you to interface the FCV-588 with your FURUNO chart plotter so that you can mark fishing grounds with various information (L/L, Depth, Water Temp, Fish size and Bottom type).

Requires a chart plotter.

Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range)

Specifications

Display

Display Unit

8.4" TFT color LCD

Pixel Number

VGA 480 x 640

Fish Finder

Frequency

50 and 200 kHz

Transducer

600 W/1 kW*

*FCV-588 can be connected to 1 kW transducers, when interfaced with Matching Box MB-1100.

Range Scale

2-1200 m

Pulselength & PRR

0.04 ms-3 ms, Max 3,000 pulse/min

Display Modes

Single frequency (50 or 200 kHz), Dual-frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom Discrimination, ACCU-FISH™, RezBoost™

ACCU-FISH™

◯

Bottom Discrimination

◯
