The NXT chapter in Radar technology !

NXT radars are Solid-State Radars utilizing Doppler technology to ensure the safest navigation. The NXT series features Target Analyzer™, Fast Target Tracking™ and Auto Target Acquire function to offer optimal detection and sensitivity of hazardous objects. Combined with RezBoost™ technology, the NXT Radars have no equal in spotting and tracking targets moving around your vessel efficiently with a high resolution.

Video

Features

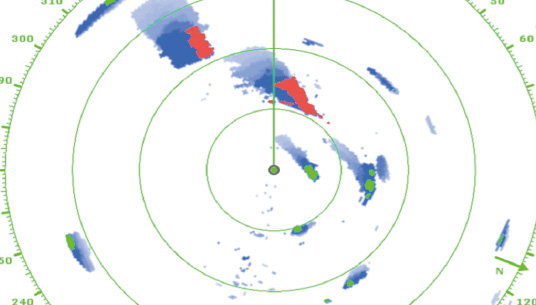

Target Analyzer™ function utilizing Doppler technology spots hazardous targets instantly!

The NXT series are the first Radars in the world to use FURUNO's exclusive Target Analyzer™ function. Targets that are approaching your vessel automatically change color to help you identify potentially dangerous targets. Green echoes are targets that stay stationary, or are moving away from you, while red echoes are hazardous targets that are moving towards your vessel. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ improves situational awareness and can increase safety by showing you which targets to look out for.

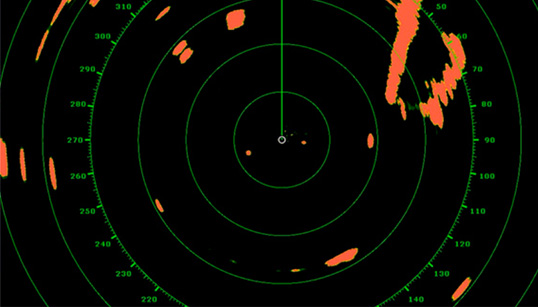

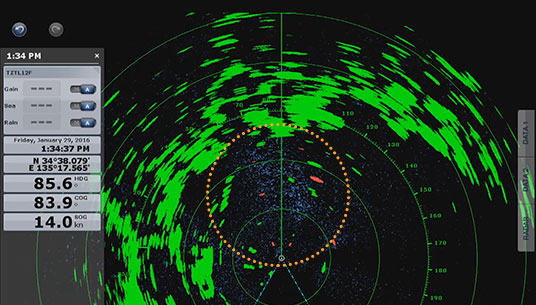

Target Analyzer™ ON

Two approaching targets are depicted clearly in RED when Target Analyzer™ is ON.

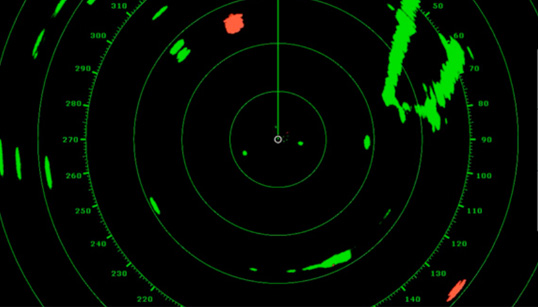

Target Analyzer™ OFF

Hazardous targets are displayed in bright red

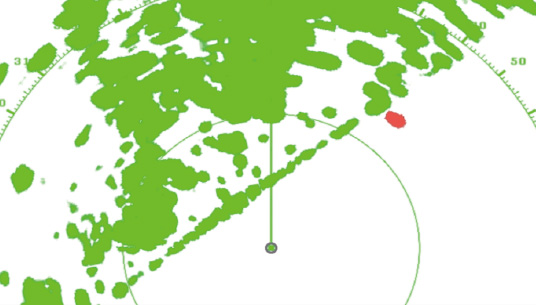

Target Analyzer™ clearly shows targets close to structures.

Rain mode

When the “Rain mode” is on, rain echoes are shown in blue. This mode is particularly useful as it has the capability to detect targets masked by rain clutters.

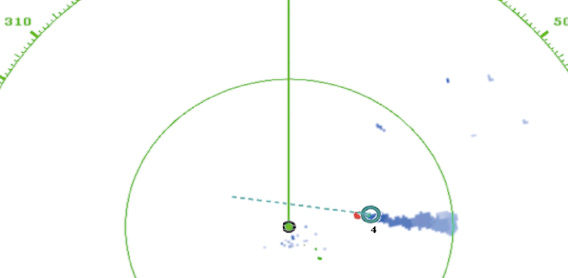

Fast Target Tracking™ and Auto Target Acquire function

With Fast Target Tracking™ activated, it only takes a few seconds for a vector to be displayed once the target is selected, manually or automatically with the Auto Target Acquire function.

When the Auto Target Acquire function is on, approaching targets within 3NM range from own ship, which are potentially hazardous, are automatically acquired by Doppler calculation and will trigger an alarm*.

Together, Up to 100 targets can be acquired simultaneously, increasing considerably the safety and simplifying estimation of other vessel’s course and speed.

TCPA setting required

Approaching vessel with target vector

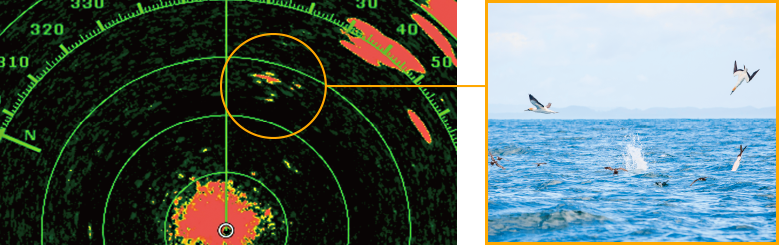

Bird Mode

Bird echoes(Left)　Actual scene(Right)

NXT Radars feature a new Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird mode adjusts the gain and sea settings automatically for optimal visibility.

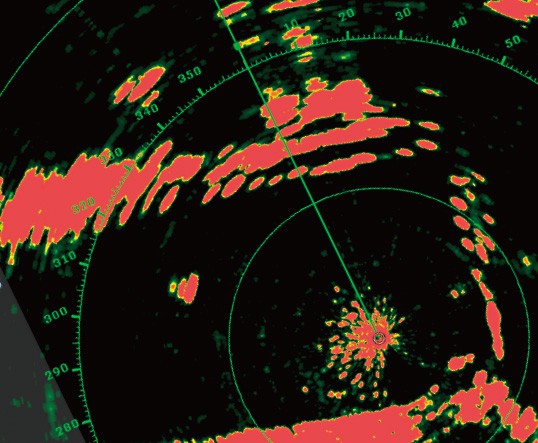

RezBoost™ beam sharpening

FURUNO's exclusive RezBoost™ technology has been incorporated into our Radar units for enhanced resolution and impressive performance. With RezBoost™ set to MAX, the sharpness offers an incredibly detailed image with more targets and less clutter.

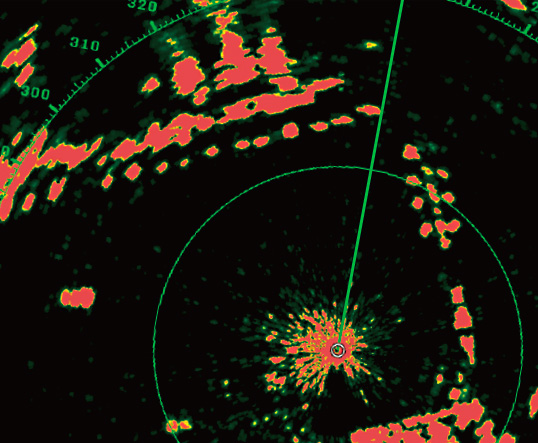

(the pictures show images captured by the DRS4D-NXT with Standard RezBoost™ and Max RezBoost™ )

RezBoost™ standard

RezBoost™ Enhanced, MAX setting

Solid-State pulse compression Doppler Radar

No preheating time, low energy consumption (no use of a magnetron)

Revolutionary Target Analyzer™ function instantly identifies hazardous targets

Fast Target Tracking™ and Auto Target Acquire function, up to 100 targets

RezBoost™ beam sharpening to increase the resolution

Effective Horizontal Beam*

Can reach a value equivalent to 0.7° with DRS6A-/12A-/25A-NXT (XN13A), 2.0° with DRS4D-NXT, and 2.6° with DRS2D-NXT, when using RezBoost™.

Bird Mode to find the best fishing grounds by tracking birds

Simple installation, no need to open the radome (DRS4D-NXT only), external PSU is not required

New smart-connector cable for retrofitting existing DRS cable installations (DRS2D-NXT and DRS4D-NXT only)

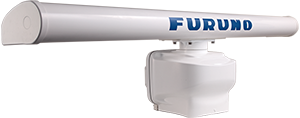

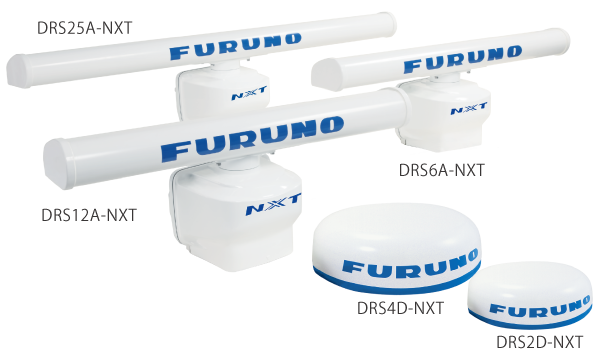

Specifications

	NEW DRS2D-NXT Non-CE Marking	DRS4D-NXT Non-CE Marking	DRS6A-NXT	DRS12A-NXT	DRS25A-NXT
ANTENNA
Type	ø488 mm Radome (19”)	ø610 mm Radome (24")	XN10A : 1036 mm Open (3'4) XN12A : 1255 mm Open (4') XN13A : 1795 mm Open (6')	XN12A : 1255 mm Open (4') XN13A : 1795 mm Open (6')
Horizontal Beam Width	5.2° typical (-3 dB) Adjustable between 2.6° and 5.2° (effective with RezBoost™ control)	3.9° typical (-3 dB) Adjustable between 2° and 3.9° (effective with RezBoost™ control)	XN10A : 2.3° XN12A : 1.9° XN13A : 1.35° (effective with RezBoost™ control)	XN12A : 1.9° XN13A : 1.35° (effective with RezBoost™ control)
Vertical Beam Width	25°		22°
Antenna Rotation Speed	24/36/48 rpm range coupled or 24 rpm fixed
RADAR FUNCTION
Tx Frequency	3 channel, auto/manual selectable CH.1 : 9380 MHz (P0N) , 9400 MHz (Q0N) CH.2 : 9400 MHz (P0N) , 9420 MHz (Q0N) CH.3 : 9420 MHz (P0N) , 9440 MHz (Q0N)
Output Power	25 W			100 W	200 W
Range Scale	0.0625 to 48 NM		0.0625 to 72 NM	0.0625 to 96 NM
Target Tracking (TT)	Auto or manual acquisition: 100 targets between 0.1 and 24 NM Past position: 5/10 pts on all activated targets Vector time: 1 to 60 min.
INTERFACE
Number of Ports	LAN: 1 port, Ethernet, 100Base-TX, RJ45
POWER SUPPLY
	12-24 VDC: 2.5-1.3 A		12/24 VDC: 9.5/5.0 A max.	24 VDC: 5.0 A max.	24 VDC: 5.6 A max.
ENVIRONMENT
Temperature	-25°C to +55°C
Waterproofing	IP26		IP56

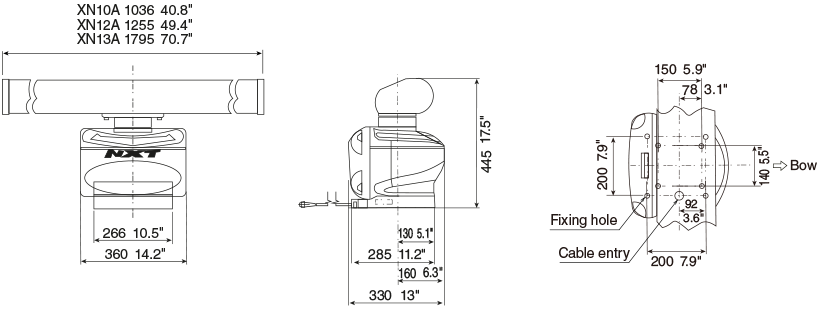

WEIGHT AND DIMENSION

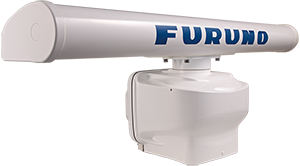

3.5 ft Open Array NXT Radar 22kg 48.5 lb
4 ft Open Array NXT Radar 25kg 55.1 lb
6 ft Open Array NXT Radar 27kg 59.5 lb

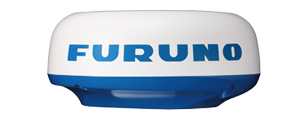

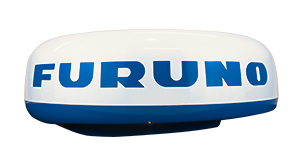

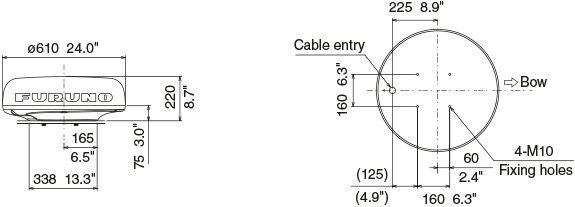

DRS4D-NXT
7.3 kg 16.1 lb

DRS2D-NXT
6.5 kg 14.3 lb

Main Functionalities

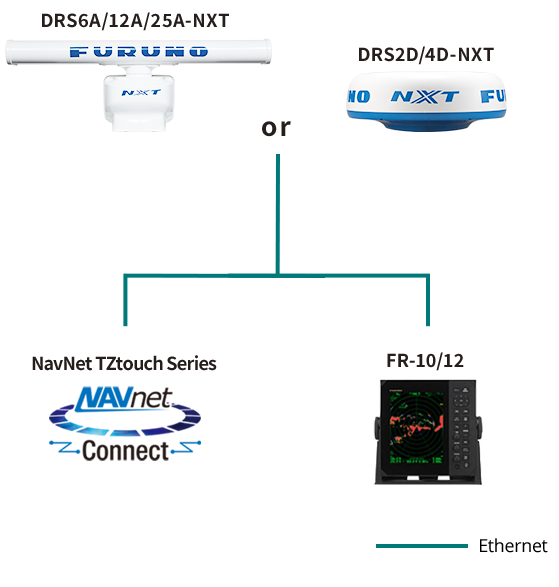

Compatible products	TZtouchXL Series	FR-10/12
Compatible products	DRS2D/4D/6A/12A/25A-NXT	DRS2D/4D/6A/12A/25A-NXT
Risk Visualizer™	Available	Available
Target Analyzer™	Available	Available
RezBoost™	Available	Available
Fast Target Tracking™*¹	Available	Available
True Echo Trail*²	Available	Available
Bird Mode	Available	Available
AIS Display	Available	Available
