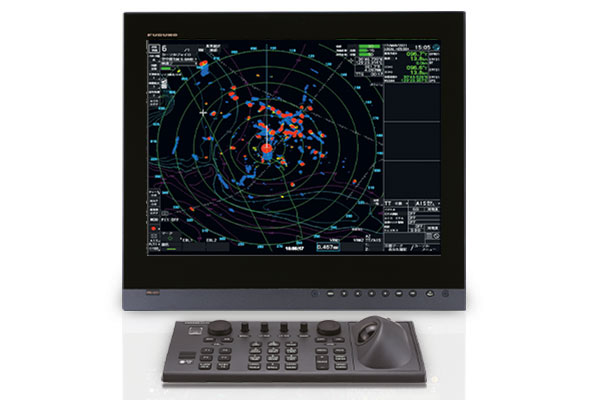

Model FAR-2268DS

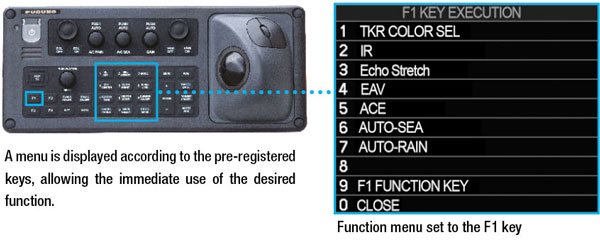

Each key can be assigned a single function or multiple functions. When [multiple functions] is selected, up to eight functions can be assigned to one key, which can be utilized by pressing the function key and then the numeric keypad. It is possible to assign up to 32 functions.

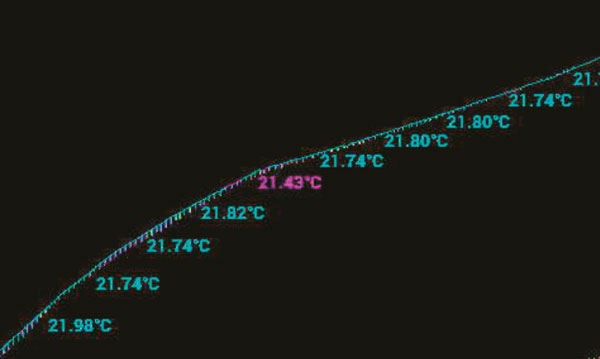

The water temperature is automatically displayed in the vessel track line, with the color changing according to water temperature. This allows the user to intuitively understand changes in water temperature and easily identify fishing grounds.

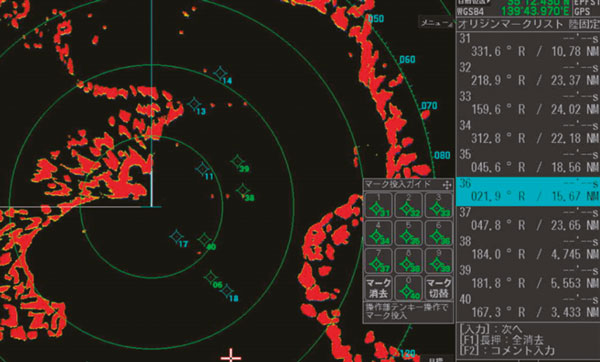

The number of origin marks that can be entered has been increased from 20 (previous model) to a maximum of 40. By displaying a list of origin marks, the distance and direction from the registered position to the cursor can be determined at a glance.

Additionnally, users can choose between “sea fixed” (blue) and “land fixed” (green), plus, land fixed origin marks are backed up even after the power is turned off.

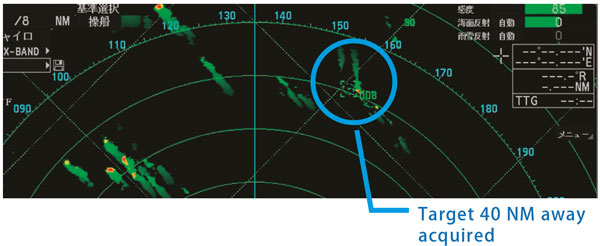

With Target Tracking (TT), the FAR-2268DS is capable of capturing targets within a range of 48 NM, whereas the previous model was limited to a distance of 32 NM. This allows users to keep a close eye on more distant targets.

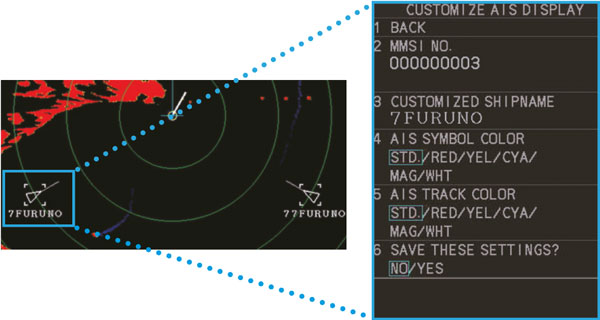

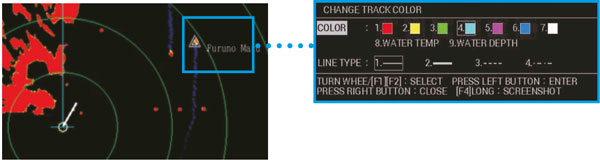

Users can register a color and a ship track color for each AIS target, so that you can identify other ships at a glance. (Maximum number of entries is 100).

Users can set the name, color, shape and track color of the acquired TT target. Custom TT settings can be pre-registered (up to 10) and these can be quickly assigned to targets.
