Marine Radar

Chart Radar

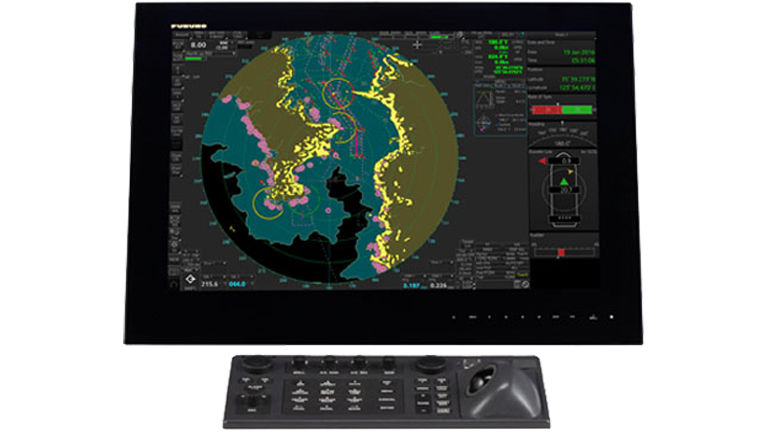

Model FAR-30x5 series

FURUNO FAR-30x5 Series Chart Radar offers reliable situational awareness and navigation safety through greatly enhanced target detection

Merchant Marine、Workboats

Downloads

Features
User Interface
Options
Software Version
Downloads
Contact

Features

Compliant with IACS UR E27*.

For IACS UR E27, click here.

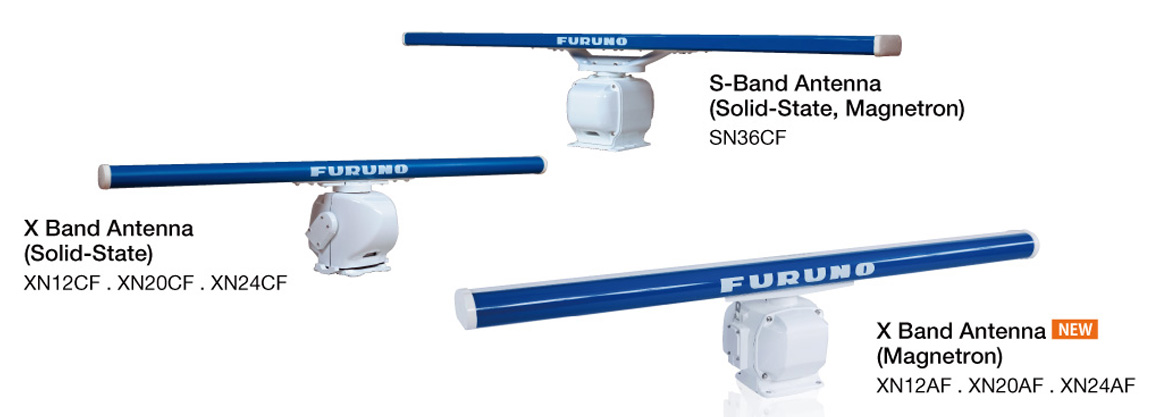

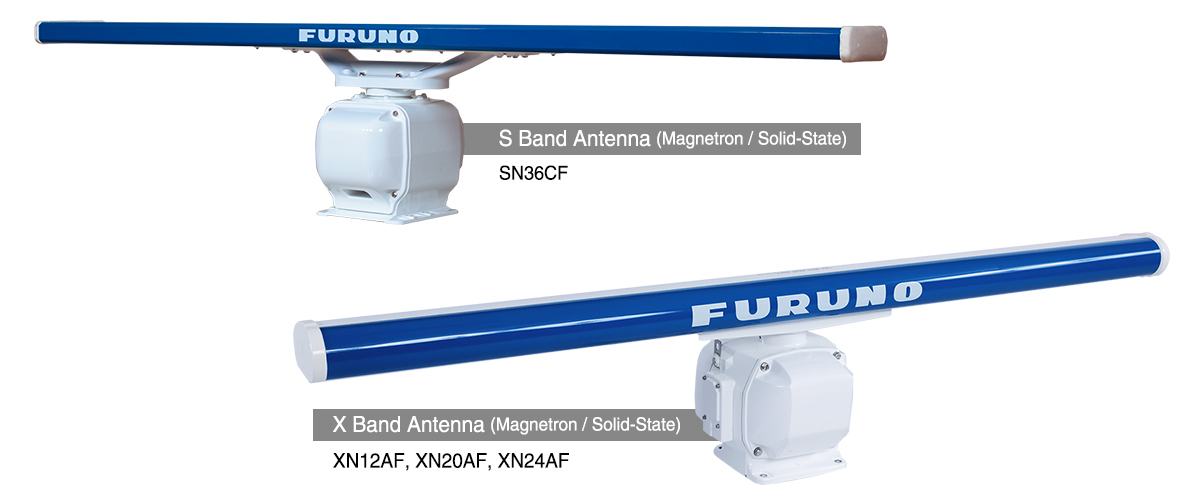

Newly developed antennas with enhanced high durability and reliability

Newly designed antenna scanners to suppress the aerodynamic drag and prevent a spike in temperature

Less maintenance required through use of the DC brushless motor

Ethernet network link between antenna unit and below deck processor unit

The analog signals are converted into the digital signals within the antenna unit and sent to the below deck processor unit via Ethernet network. This network technology eliminates loss of signal gain between antenna unit and processor unit that may be seen in conventional Radar system.

Optional LAN Signal Converter enables users to extend the cable between antenna unit and processor unit or to utilize the existing cables when retrofitting

Solid State Radar model - NXT - specializes in target detection and maintainability

Compared to the traditional Magnetron Radar, the Solid State Radar NXT Series provide highly reliable target detection while requiring low power.

Clear images

Furuno Solid State Radar technology generates clear echo images, which allows users to obtain a clear picture of the area around their vessel, including weaker echoes from small crafts.

Reducing the time and cost for maintenance

No need to replace the magnetron
Removal of the consumable parts thanks to a fan-less antenna (S-band only)

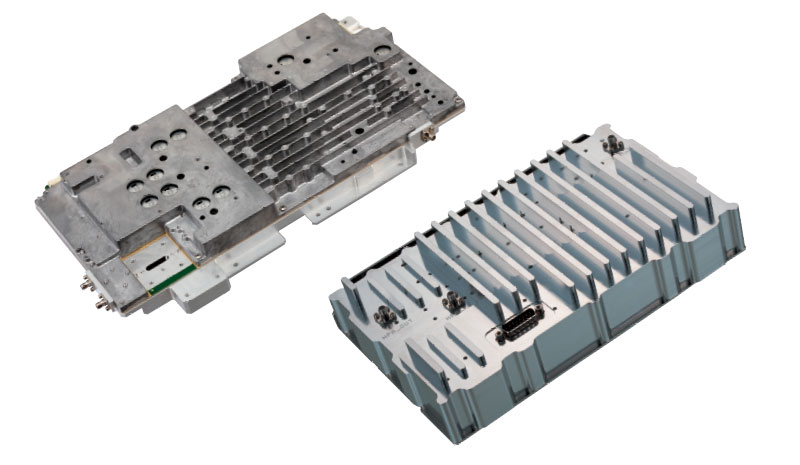

Power Amplifier Module of the Solid State transceiver
X-band (left) and S-band (right)

Various features for safer and more efficient navigation

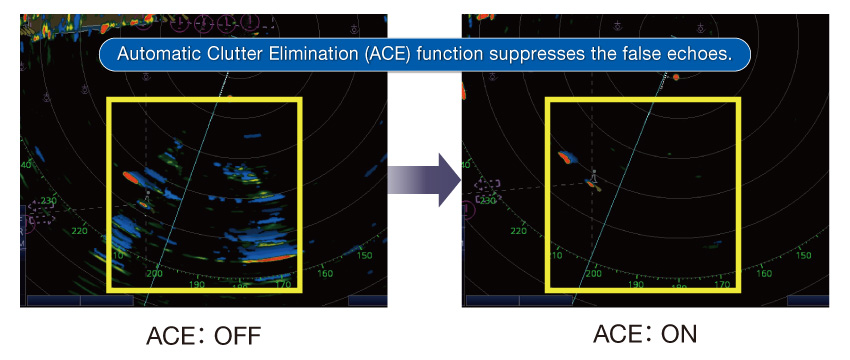

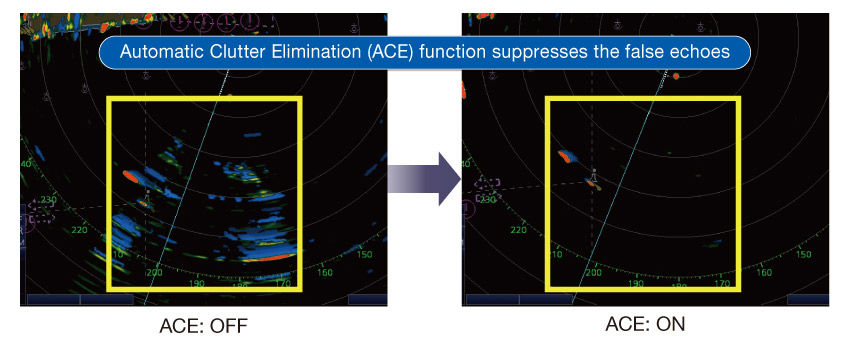

Automatic Clutter Elimination (ACE) function provides clear echoes

Users can quickly adjust the radar image with a single action. When Automatic Clutter Elimination (ACE) function is activated, the system automatically adjusts the clutter reduction filter and gain control according to the sea and weather conditions selected (Calm/Rough Sea/Hard Rain).

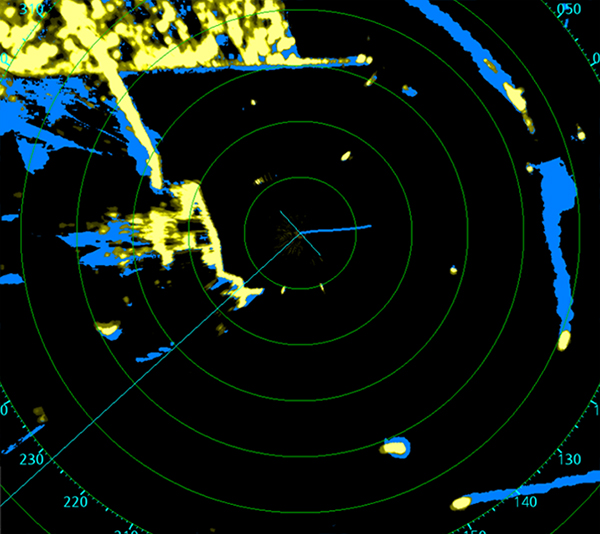

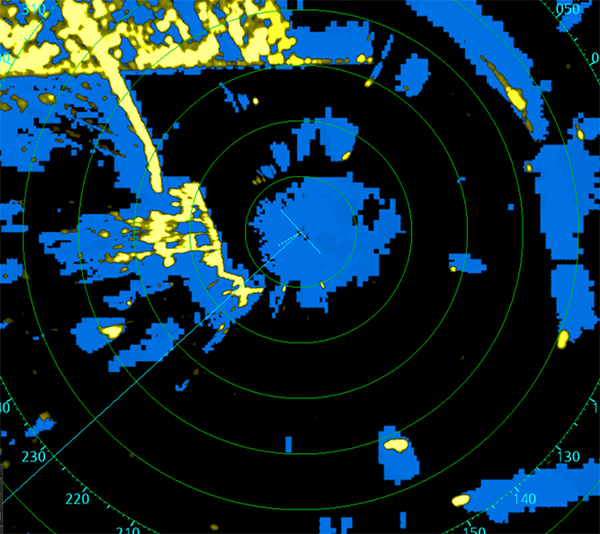

Our advanced echo averaging architecture is also incorporated into Automatic Clutter Elimination (ACE) function. Users can avoid complicated adjustment processes, resulting in clear echo images.

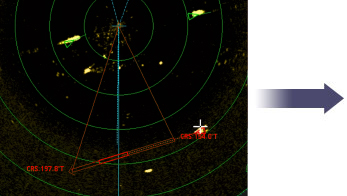

Improved Target Tracking (TT) function

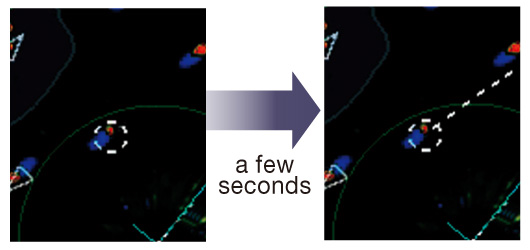

Target acquisition takes only a few seconds
Acquired target does not jump to adjacent target
Reliable and stable tracking of high-speed and rapidly maneuvering vessels

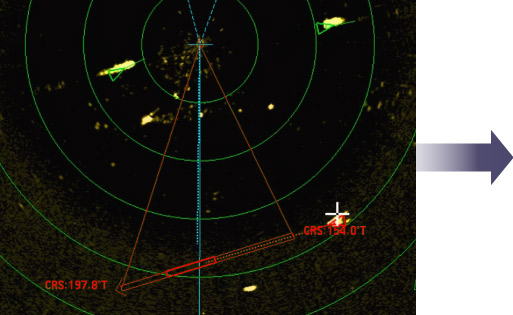

See potential collisions with Risk Visualizer™

Risk Visualizer™ assists operators in making avoidance decisions by visualizing the areas where there is a risk of collision if own ship keeps current speed and other ship(s) continue to navigate at their current speed and course.
Risk Visualizer™ makes it easier to identify the risk of approaching or colliding with other vessels in challenging environments—such as during nighttime navigation, low-visibility conditions, high-traffic areas, or when the operator is managing a high workload.

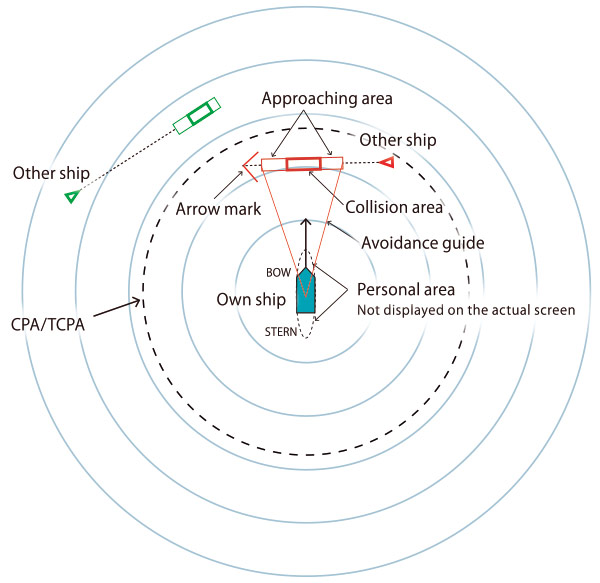

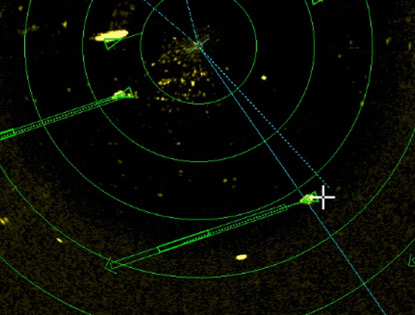

Risk Visualizer display image*

In the example image, by altering course so that your ship does not enter the approaching area, you can avoid the other ship by maintaining a distance equal to the personal area.

Maneuver your vessel to avoid the approaching/collision areas, you will be able to avoid other ships. If your ship's course is within an approaching area, there is a risk of coming close to othe ther ship, so the operators must steer with caution.

If target’s CPA and TCPA are less than the threshold, the approaching/collision area will flash in red and the CPA/TCPA alert occurs.
After acknowledging the alert, the flashing stops.

If a target’s speed or course is changed after your vessel changes its course, the risk of collision may increase. Maneuver your vessel accordingly to avoid collision.
When the vector mode is set to the ground stabilization or sea stabilization(true), the approaching/collision area is shown with a thick solid line in the same direction as the vector of the target that is on a collision course with own ship.
The color for the approaching/collision areas change according to the color of the target symbol.

Multifunction display (MFD) capability*

Furuno proposes workstations that combine flexibility and redundancy. Users may easily select ECDIS, Chart Radar, Conning display or Alert Management System at any multi-function display. Navigators will enjoy reduced workload and significant freedom to move about the bridge. All necessary information is available on a variety of displays and at locations that may be altered as required.

MFD capability can be implemented with a software upgrade (optional).

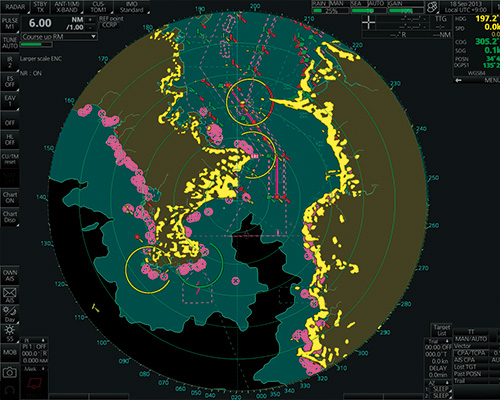

Radar (Chart ON)

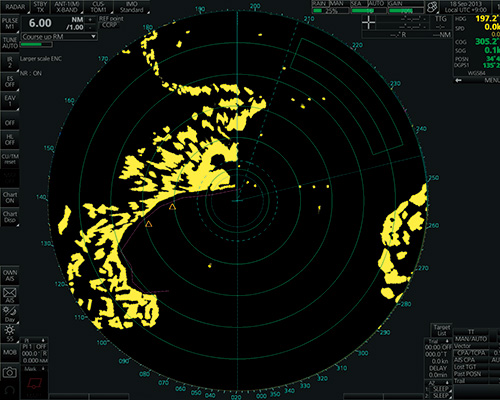

Radar (Chart OFF)

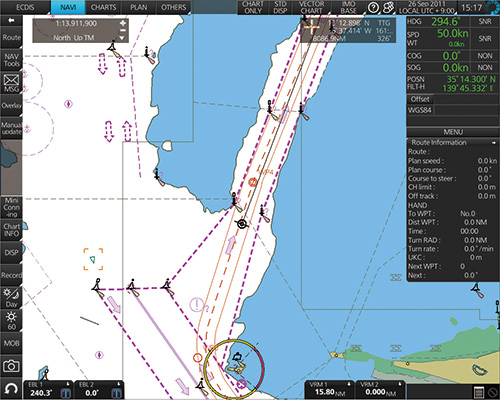

ECDIS

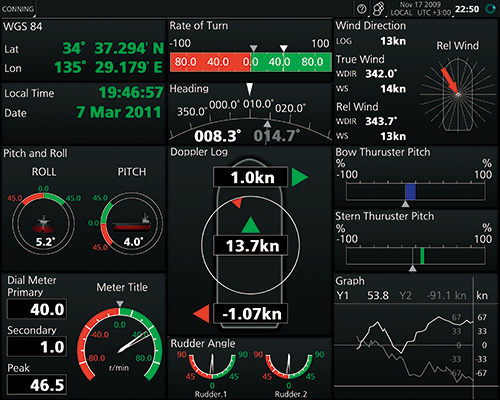

Conning Information Display

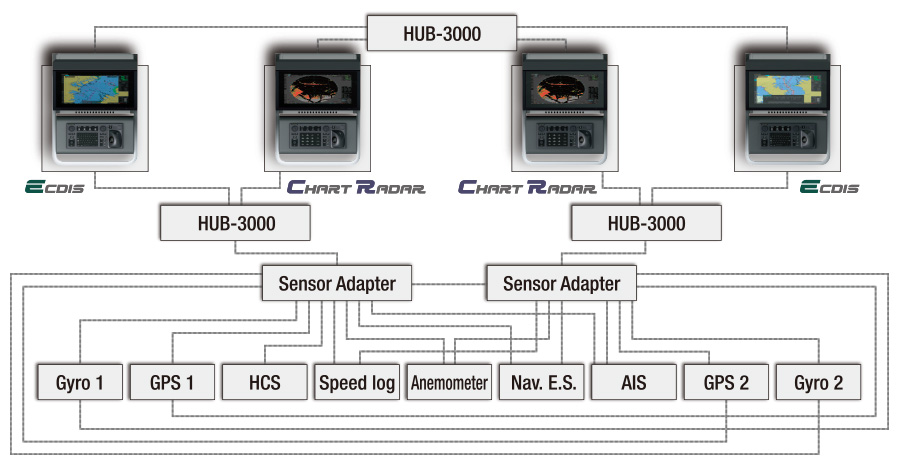

System Diagram Example

Common sensor adaptor makes installation and maintenance easy

Sensor Adapter (MC-3000S/3010A/3020D/3030D)

The Sensor Adapter acts as a central medium to gather all of the sensor data and collectively feed it to all FAR-30x5 Chart Radar and FMD-3200/3300 ECDIS in the network. Since the sensor adapter can be extended to interface with all the sensors within the network, individual cable connections in the sensor-to-Chart Radar/ECDIS interface can be greatly reduced.

Navigation sensors can be directly interfaced with the processor’s 8 serial I/0 ports.Sensor adapters are required under the following conditions:

The sensor data is to be shared amongst multiple networked Chart Radar and ECDIS systems,
The number of sensors interfaced is more than the number of the ports the processor has (8 serial I/O ports, 1 digital IN and 6 digital OUT), and/or
The networked sensors include analog sensors.

In order to integrate onboard sensors into the navigation network, the sensor adapter may be interfaced with the switching hub HUB-3000 from which distribution of the sensor data throughout the network is possible. Alternatively, multiple sensor adapters may be interfaced via Ethernet to integrate onboard sensors for use in the shipboard network.

Exceptionally intuitive user interface

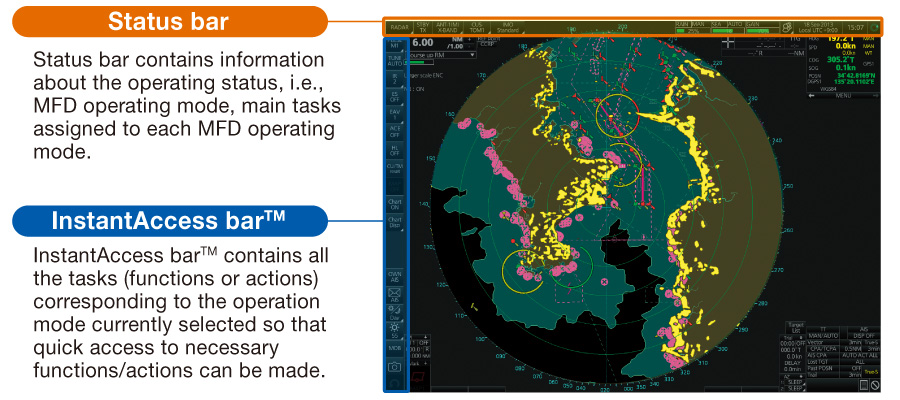

Unique & smart operation tool – “Status bar” and “InstantAccess bar™”

The user interface of the Radar utilizes carefully organized operational tools: The Status bar and The InstantAccess bar™.
These operational tools deliver straightforward, task-based operation by which the operator can quickly perform tasks without having to navigate an intricate menu tree.

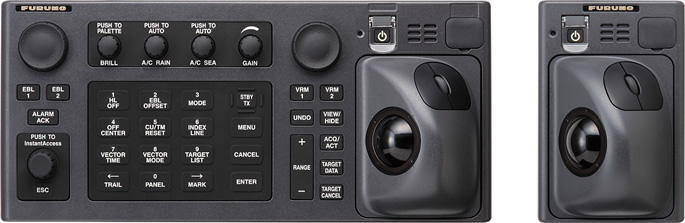

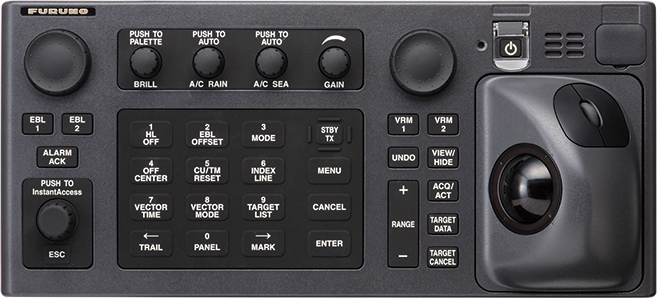

Stress-free operation with the well-designed control unit

Intuitive operation

All operations can be controlled with the trackball.

Contextual menu

The context menu contains all the available actions related to the selected icon or area, it provides quick access to tasks.

Options

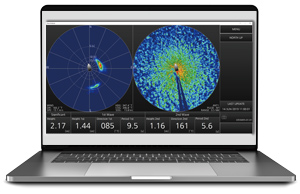

Wave Analyzer Software*

Wave Analyzer Software provides real-time measurement of wave height, direction and period by analyzing sea surface echoes received from the marine radar. The wave information ensures safety at sea, even at night.

Compatible with X-band and S-band radar (both magnetron and solid state)

For further details, click here.

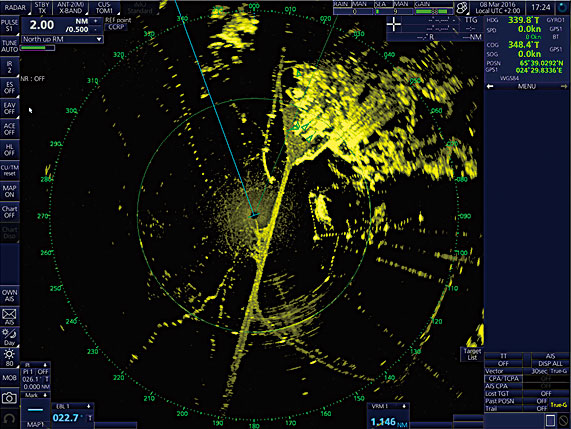

ICE mode*

ICE mode visualizes ice structures and find the best route through iced sea surface. Finding the optimum route to go through ice, the vessel consumes much less power and saves fuel and time.

Compatible with X-band radar (both magnetron and solid state)

Software Version

Product		FAR-30x5 (Magnetron)	FAR-30x5 (Solid State)
Software Version	SPU	0359281-01.xx	0359286-01.xx
	MAIN (EC-3000/3005)	0359266-05.xx*
IMO /IEC/ITU Standard		IMO A.278(VIII) IMO A.694(17) IMO MSC.36(63) IMO MSC.97(73) IMO MSC.191(79) IMO MSC.192(79) IMO MSC.302(87) IMO MSC.232(82)Appendix 6 IMO MSC.1/Circ.1349 IEC 60945 Ed. 4 IEC 61162-1 Ed. 5 IEC 61162-2 Ed. 1 IEC 61162-450 Ed. 2 IEC 61174 Ed. 4 IEC 62288 Ed. 3 IEC 62388 Ed. 2 IEC 62923-1/-2 ITU-R M.1177-4
Electronic Navigational Chart (ENC)		S-57 Ed. 3.1, S-57 Ed. 3.1.1, S-57 Maintenance Document (Cumulative) No. 8
ECDIS Presentation Library		S-52 PresLib Ed. 4.0
Chart Content and Display Aspects of ECDIS		S-52 Ed. 6.1
ENC Data Protection		S-63 Ed. 1.2.0
Compliance for IHO CDS		S-64 Ed. 3.0.1
Possibility for Updating		-

This software version is required only for the installation onboard vessels applicable to MED Implementing Regulation (EU) 2020/1170. Please consult with your local distributors, should you wish to upgrade the software.
