Model MODEL1815
Fully Automatic Gain for Simplified Use

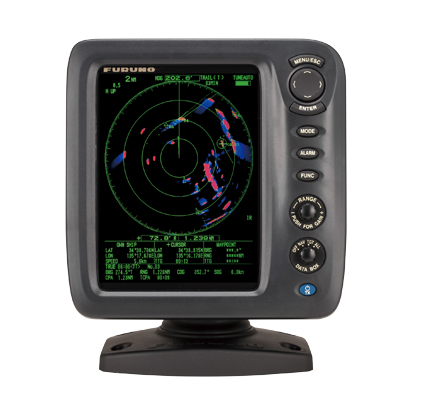

MODEL1815 is an 8.4” color LCD radar designed for pleasure craft and small fishing boats. The Radar has easy-to-use, intuitive controls, while maintaining the high performance you expect from FURUNO products. Even in poor visibility such as fog or storms, the radar produces detailed pictures of coastline and targets at short ranges by utilizing narrow pulses and dual IF bandwidths. The waterproof display makes it ideal for exposed installations, such as fly bridges.
MODEL1815 utilizes our Fast Target Tracking™, True Trail Mode and True View Mode technologies to ensure optimum performance in detecting and ranging targets of interest.
- Fishing Vessels、Recreational Boats
Features
Compact Radome antenna with 4 kW transmitter output power
Low power consumption of 38 W at the most
Easy installation and intuitive operation

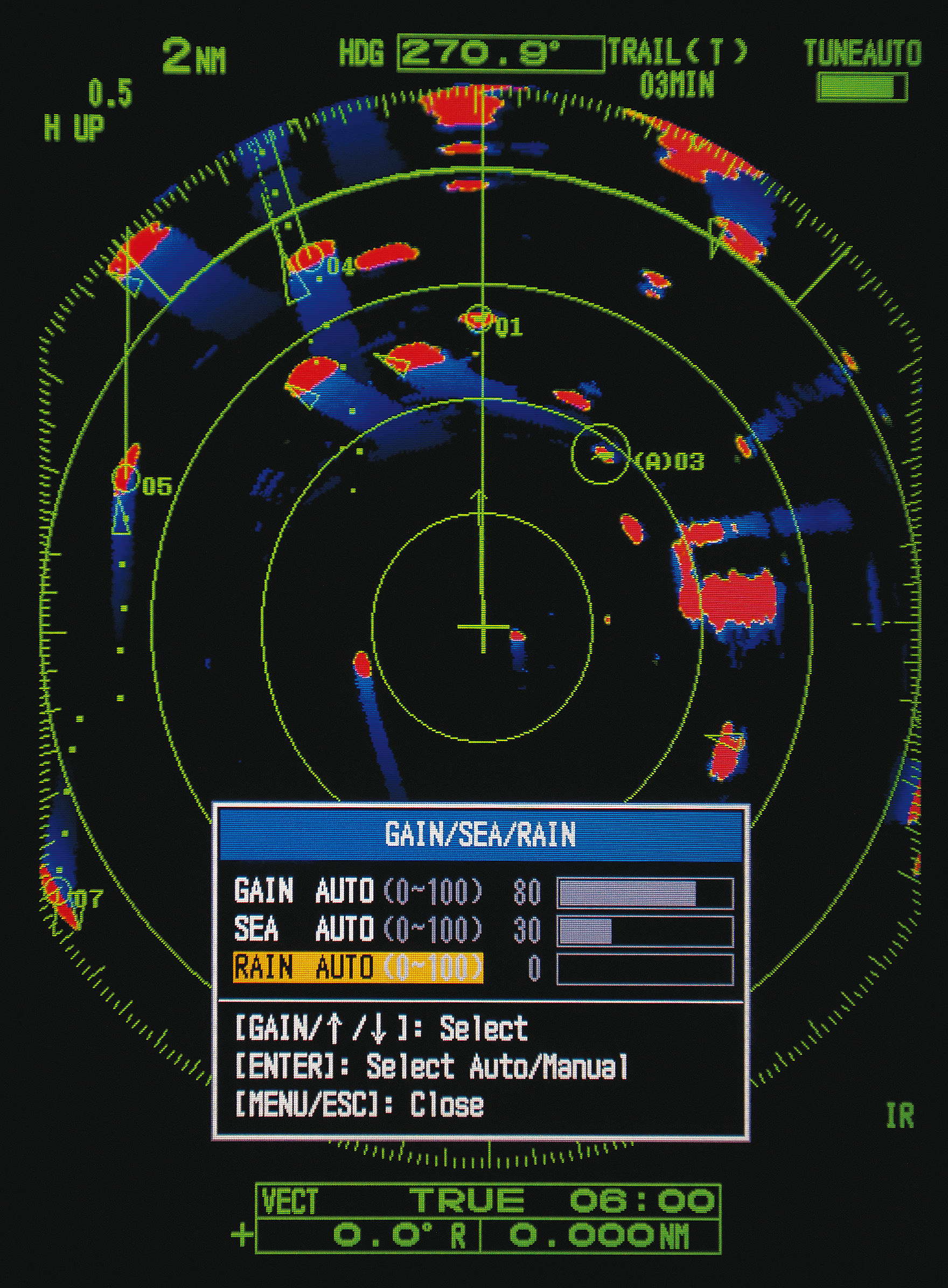

Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter
To display targets clearly and accurately, the gain must adjusted. The MODEL1815 can do this automatically for you. By automatically adjusting the gain, the Radar eliminates unnecessary echoes and display a clear image.
Fast Target Tracking™ (TT) function
Fast Target Tracking™ (TT) function manually or automatically acquires and tracks 10 targets. After selecting a target, it only takes a few seconds for a speed and course vector to be displaed. With accurate tracking information, estimation of other vessel's course and speed is made easier.

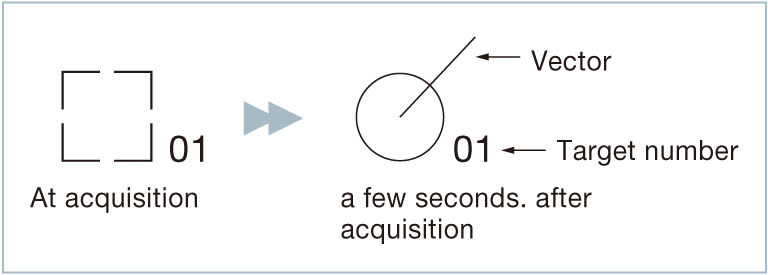

Target Tracking (TT) Symbols

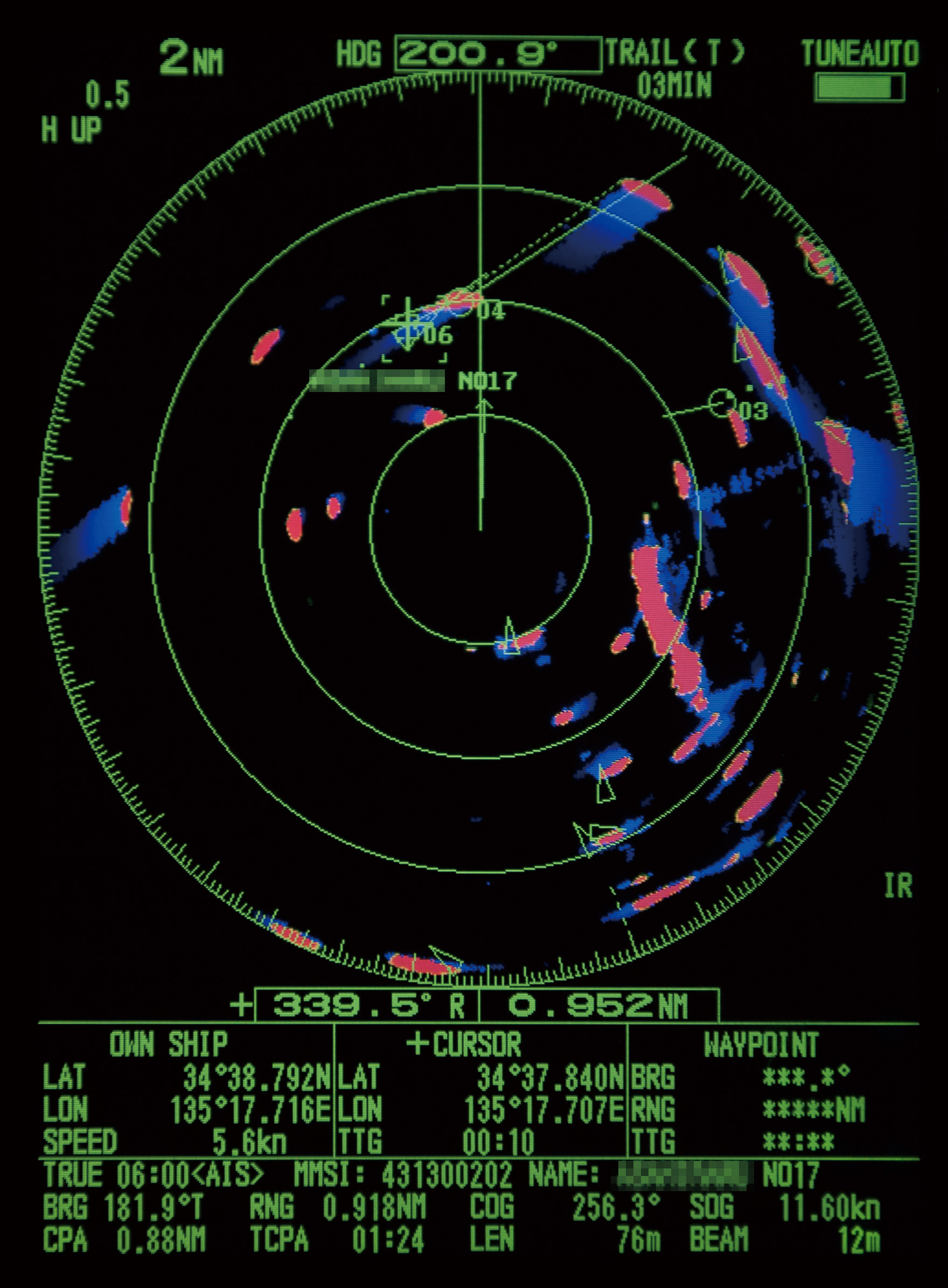

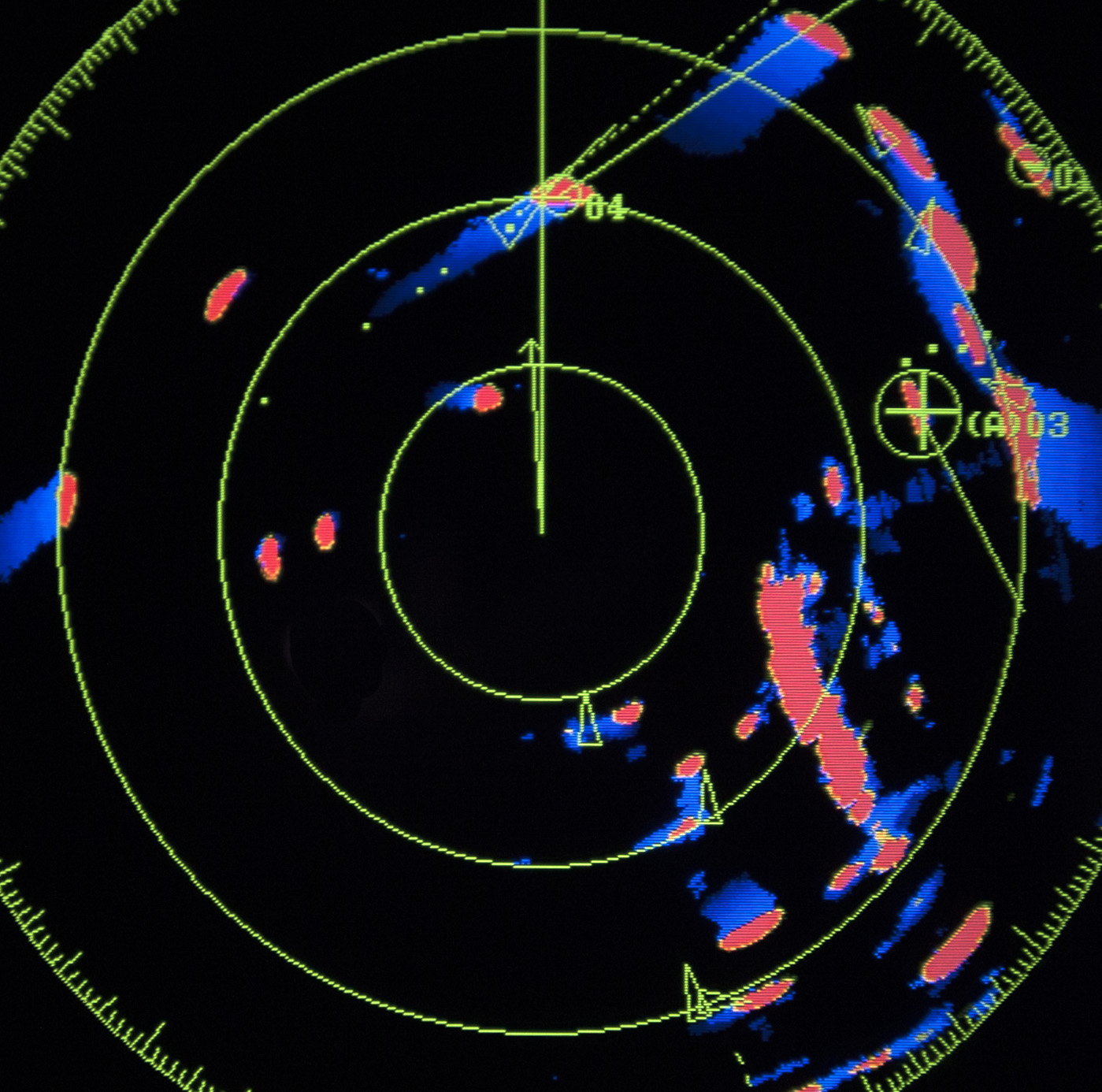

AIS display

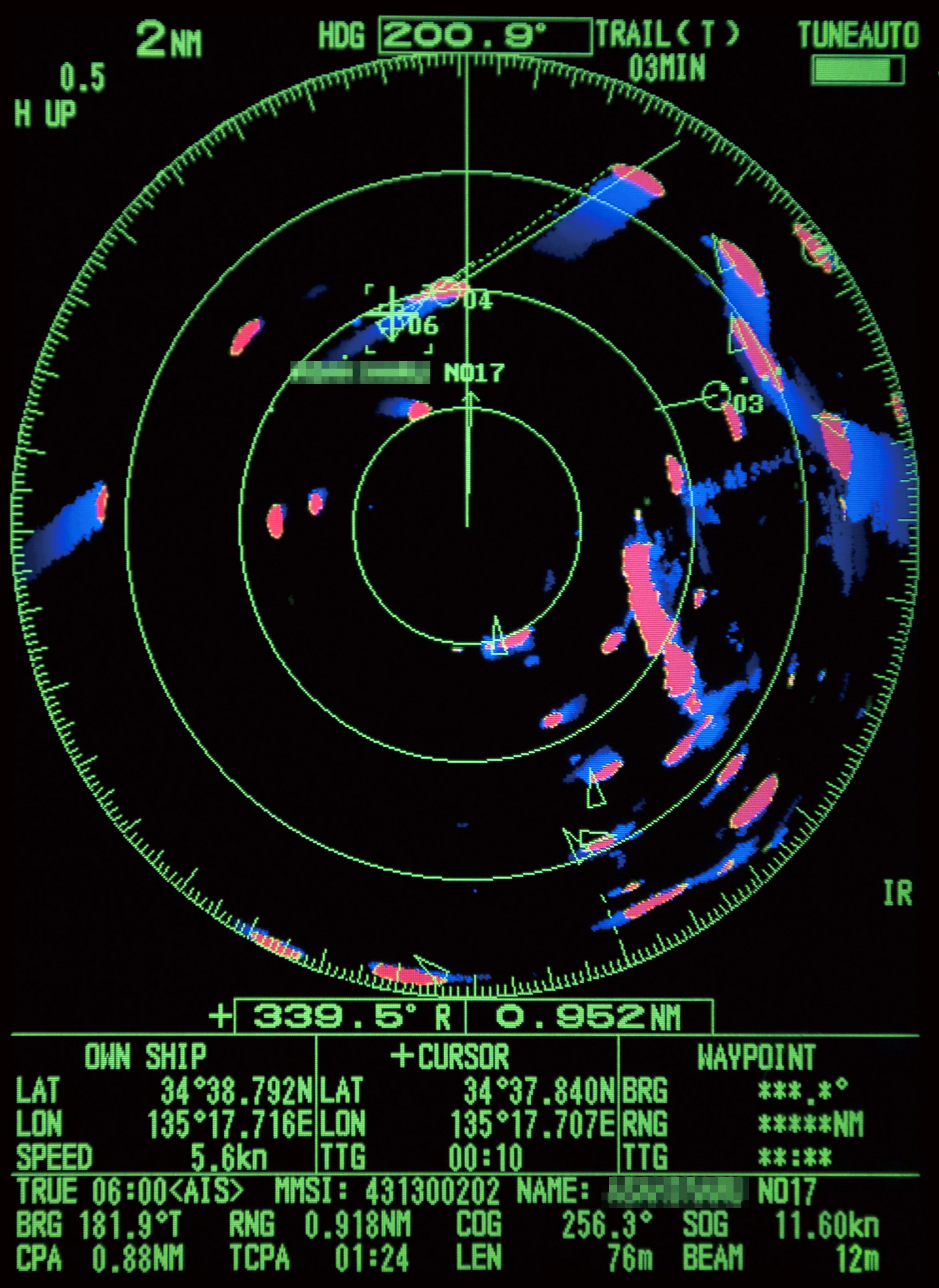

When connecting a FURUNO FA-30/50 AIS unit, up to 100 AIS targets can be tracked and displayed on the Radar screen. The AIS improves safety during travel by sharing the status and position of your vessel with other AIS-equipped vessels nearby. You can easily read detailed information about other AIS equipped vessels nearby, such as speed and heading.
Target Tracking (TT) Symbols

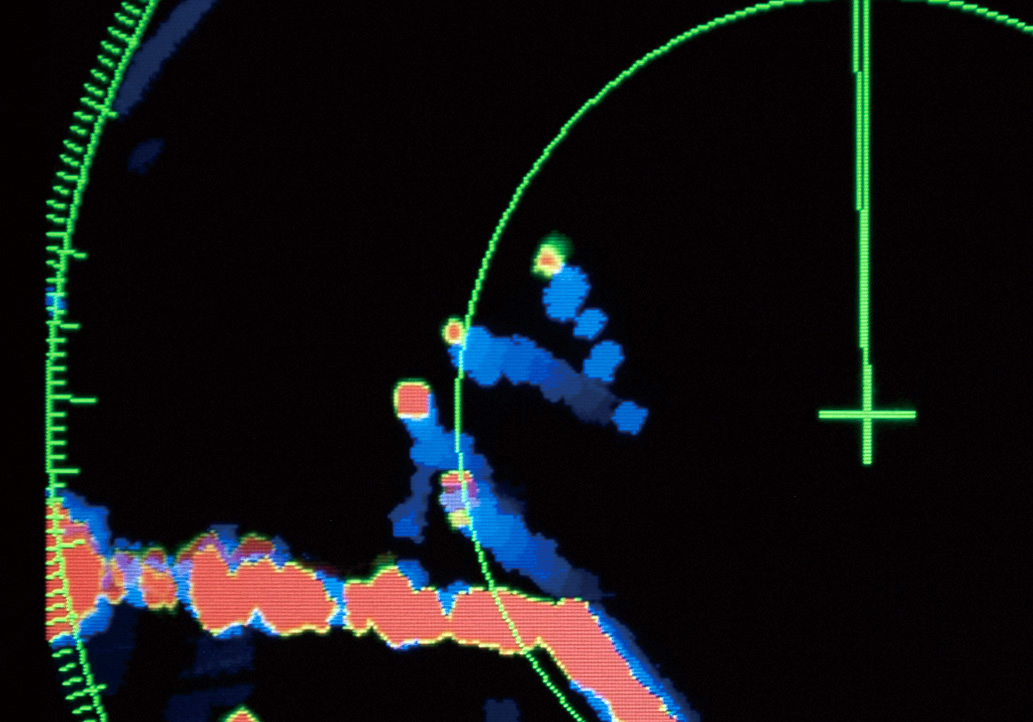

True Trail mode
When using the True Trail mode, moving objects will show up on the main screen with a gradational trail. These trails make it possible to see the movement of nearby vessels in the blink of an eye.
- Heading data and positional data are required.
True view mode
User-programmable function key

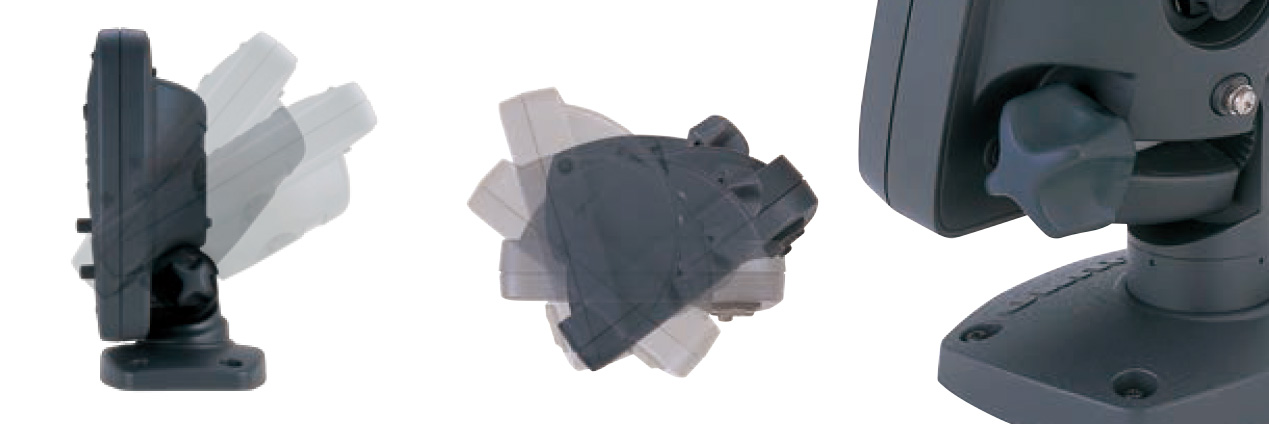

Swivel mounting bracket to adjust the angle of the display unit
Multi-station configuration

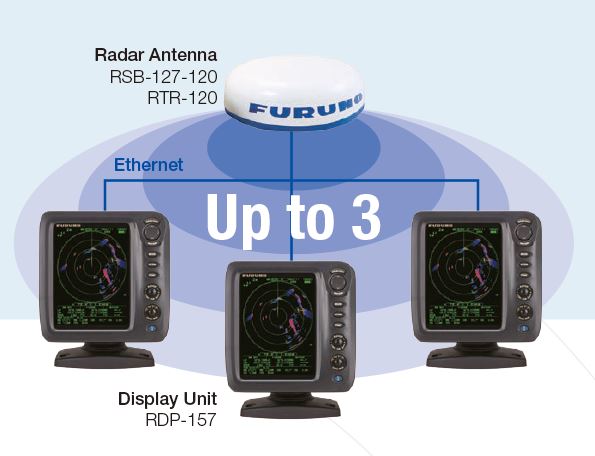

The multi-station configuration allows up to three RDP-157 (MODEL1815 displays) to be connected to a single antenna, via an ethernet hub, without the need to install individual antenna units on each display. This configuration provides a cost saving and dynamic setup for situations requiring the ability to monitor the Radar from different locations on the ship.
Screenshots
Fast Target Tracking™ (TT)

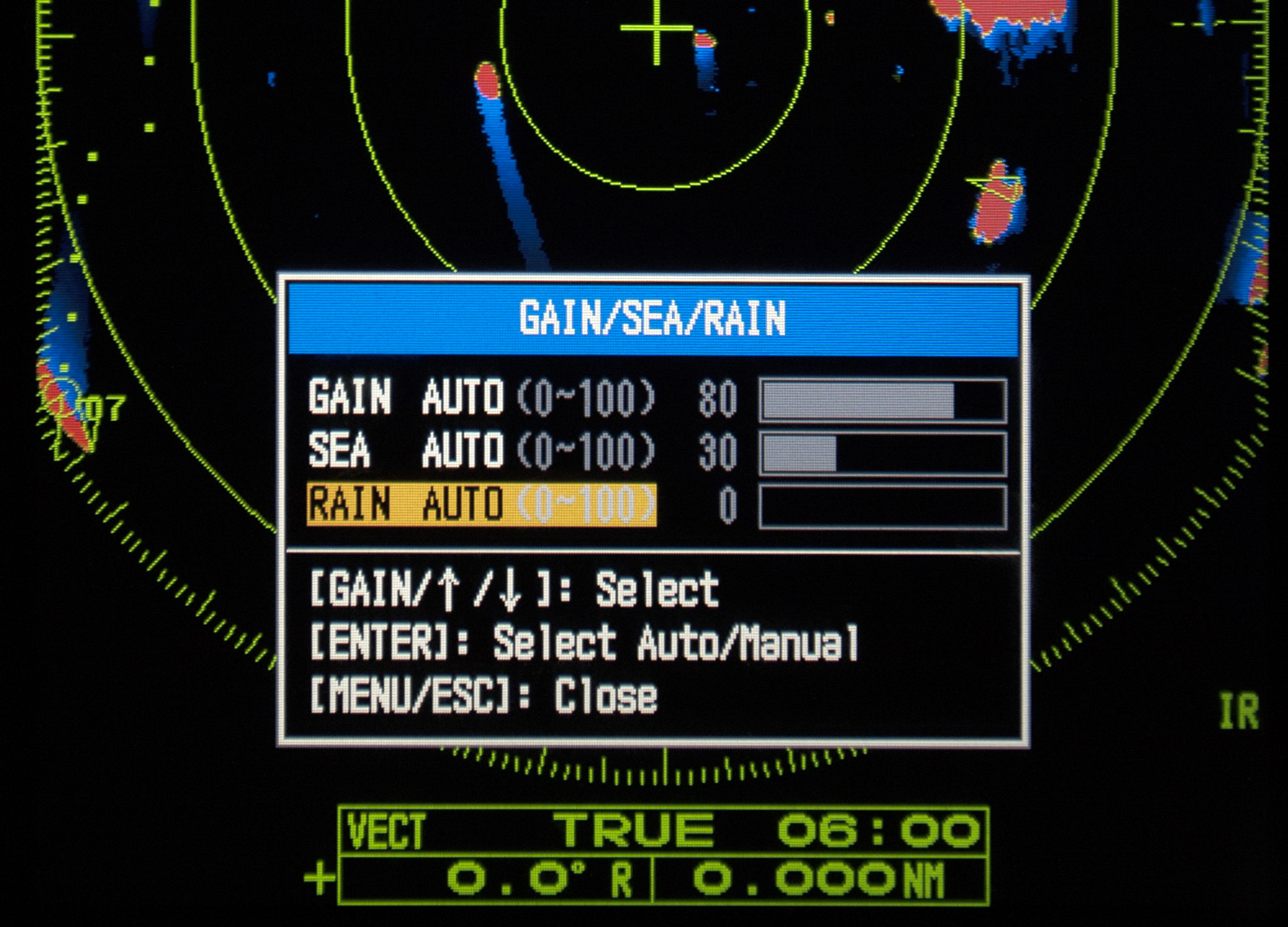

Gain/Sea/Rain setting

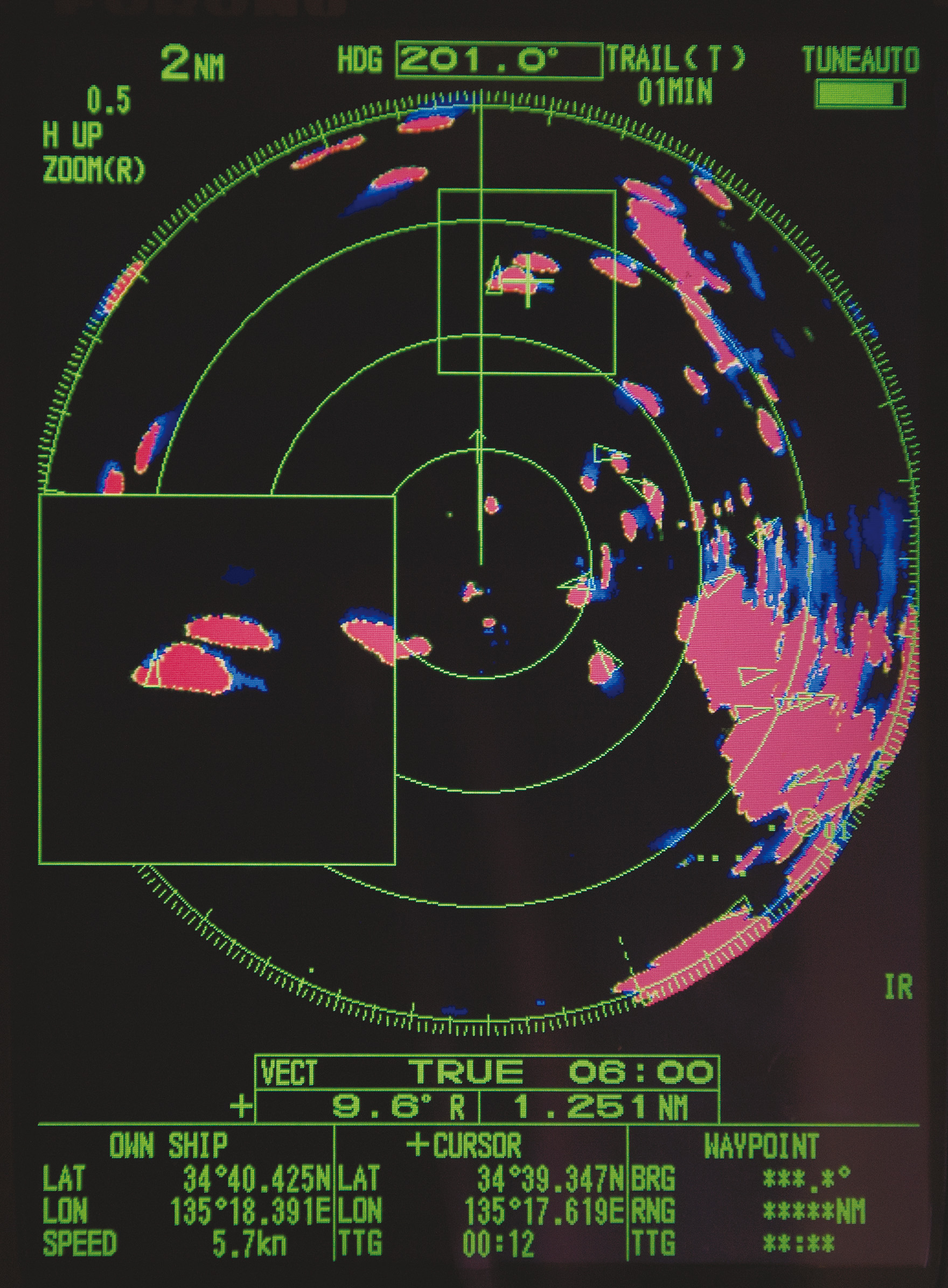

Zoom

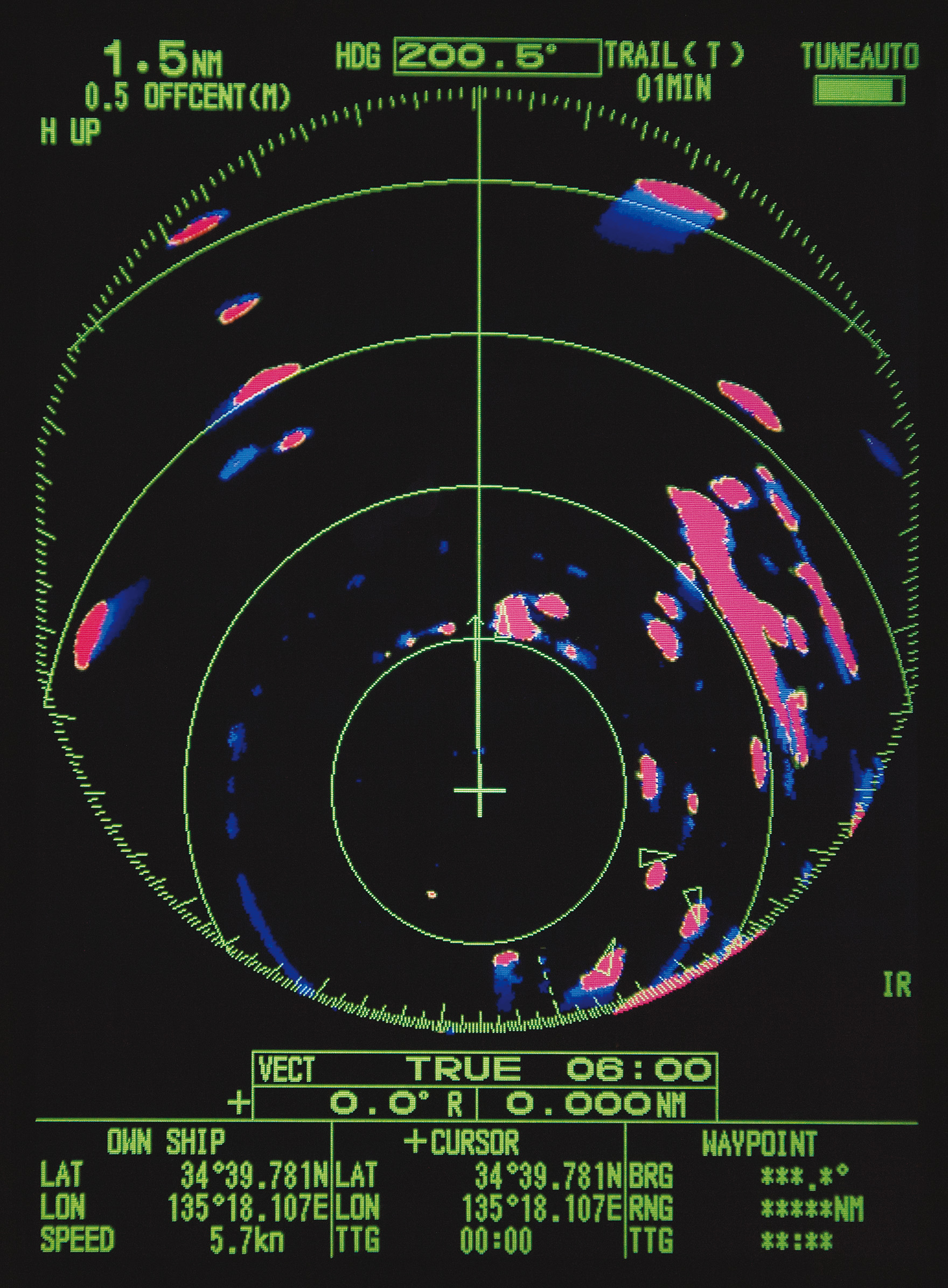

Off Center
Specifications
Antenna
Peak Output Power
4 kW
Type

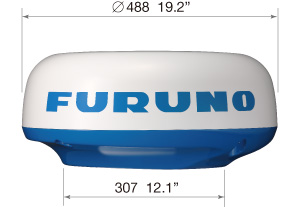

488 mm (19") radome
Frequency
9410 MHz ± 30 MHz
Beam Width (Horizontal)
5.2°
Beam Width (Vertical)
25°
Range Scales
0.0625 - 36 NM
Minimum Range
25 m
Antenna Rotation Speed
24 rpm
Weight
6.5 kg 14.3 lb
Display
Display Unit
8.4-inch Color LCD
Display Modes
Head-up, Course-up*¹, North-up*, True view, True motion*²
*¹ Heading data required
*² Heading data and position data required
Other Mode/Functions
Fast Target Tracking™ (TT), AIS, Echo Trails
Weight
Bracket mount: 2.2 kg 4.9 lb
Flush mount: 1.6 kg 3.5 lb
Environment
Temperature
Antenna unit: -25°C to +55°C
Display unit: -15°C to +55°C
Waterproofing
Antenna unit: IPX6
Display unit: IP56
Power Supply
Power Supply/Consumption Current
12-24 VDC, 3.2-1.6 A
Equipment List
Standard
Display Unit
RDP-157
Antenna Unit
RSB-127-120
Antenna Cable
10/15/20/30 m specify when ordering
Power Cable
3.3 m
Spare Parts & Installation Materials
Option
Antenna Bracket
OP03-209
External Buzzer
OP03-21
NMEA Data Converter
IF-NMEA2K2
Flush Mount Kit
Interconnection Diagram

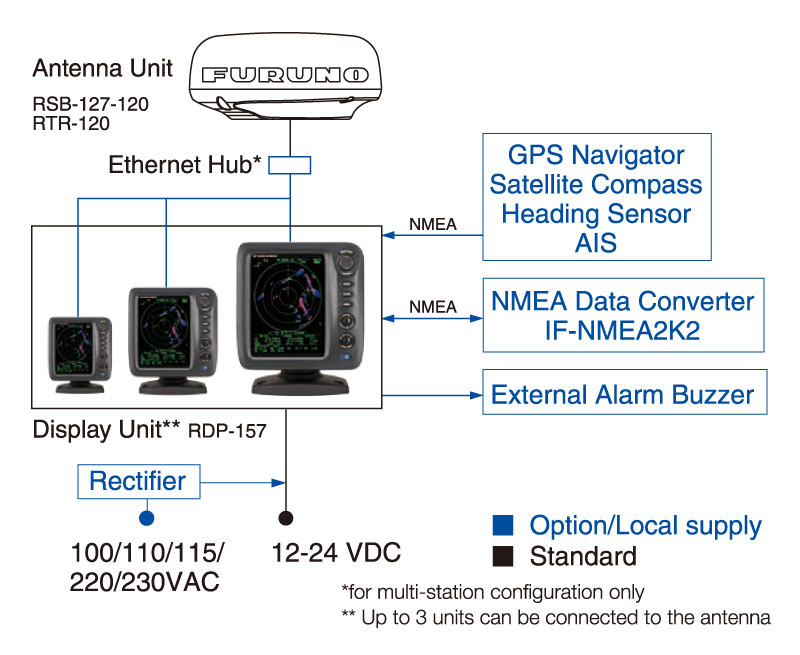

Multi-station configuration
Downloads
| Name | Last update |
|---|---|
| Aug 18, 2025 | |
| Dec 15, 2020 |
