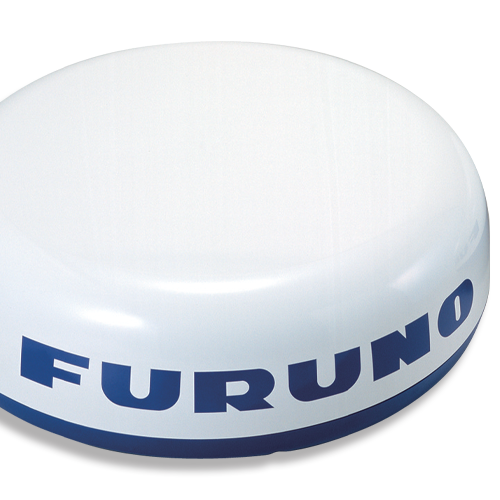

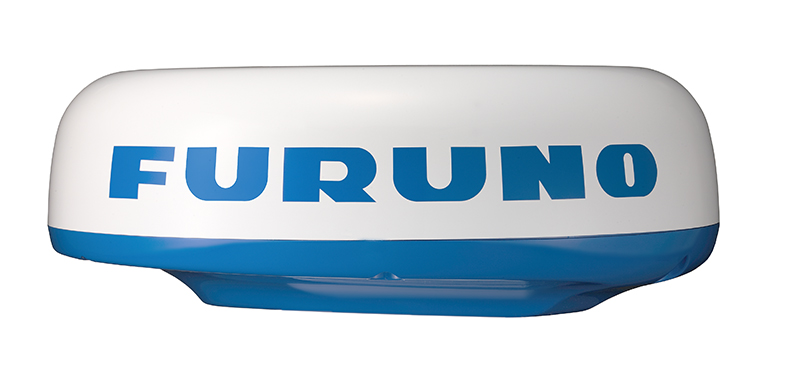

RADOME RADAR SENSOR

Model DRS4DL+

4 kW, 36 nm range, X-band, 19" radome, magnetron

DRS4DL+ is a compact 19" radome Radar Sensor for NavNet TZtouch2/TZtouch Series. This 4 kW Radar with an effective range of 36 NM that offers simple installation without the need to purchase a separate power supply unit. FURUNO's automatic, real-time digital signal processing presents navigators with some of the clearest targets they"ll ever find from a Radar of this compact size.

  • Fishing Vessels、Workboats、Recreational Boats

Features

For NavNet TZtouch and TZtouch 2

The DRS4DL+ spins at a fixed 24 rpm, and has range scales from 1/8 NM to 36 NM. The DRS4DL+ is designed to work with NavNet TZtouch and TZtouch2 systems.

Single wire Radar solution

The DRS4DL+ is a 19" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4kW Radar is presented in a compact, rugged 19" dome with a 5.2 degree horizontal beamwidth antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL+ utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.

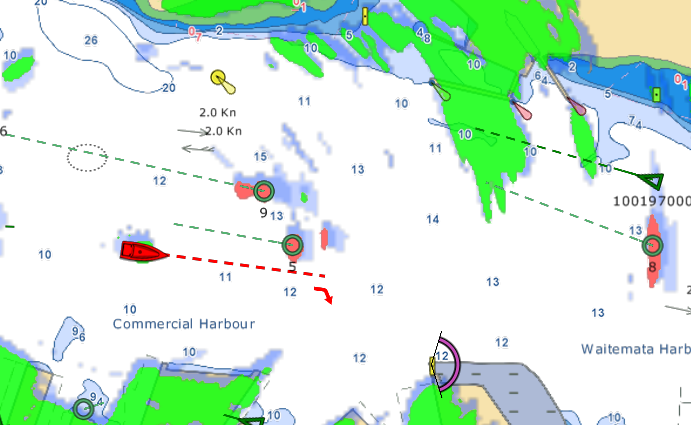

Fast Target Tracking™ (TT) function

Fast Target Tracking™/ARPA on the DRS4DL+ manually or automatically acquires and tracks 10 targets*. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, extimation of other vessel's course and speed is made simple.

Specifications

Antenna

Peak Output Power

4 kW

Type

ø488 mm Radome (19'')

Frequency

9410MHz±30MHz, P0N

Beam Width (Horizontal)

5.2° typical (3 dB)

Beam Width (Vertical)

25° (3 dB)

Range Scales

0.0625 to 36 NM

Antenna Rotation Speed

24 rpm

Weight

5.7 kg

Environment

Temperature

-25°C to +55°C

Waterproofing

IPX6

Power Supply

Power Supply/Consumption Current

12-24 VDC: 2.1-1.0 A

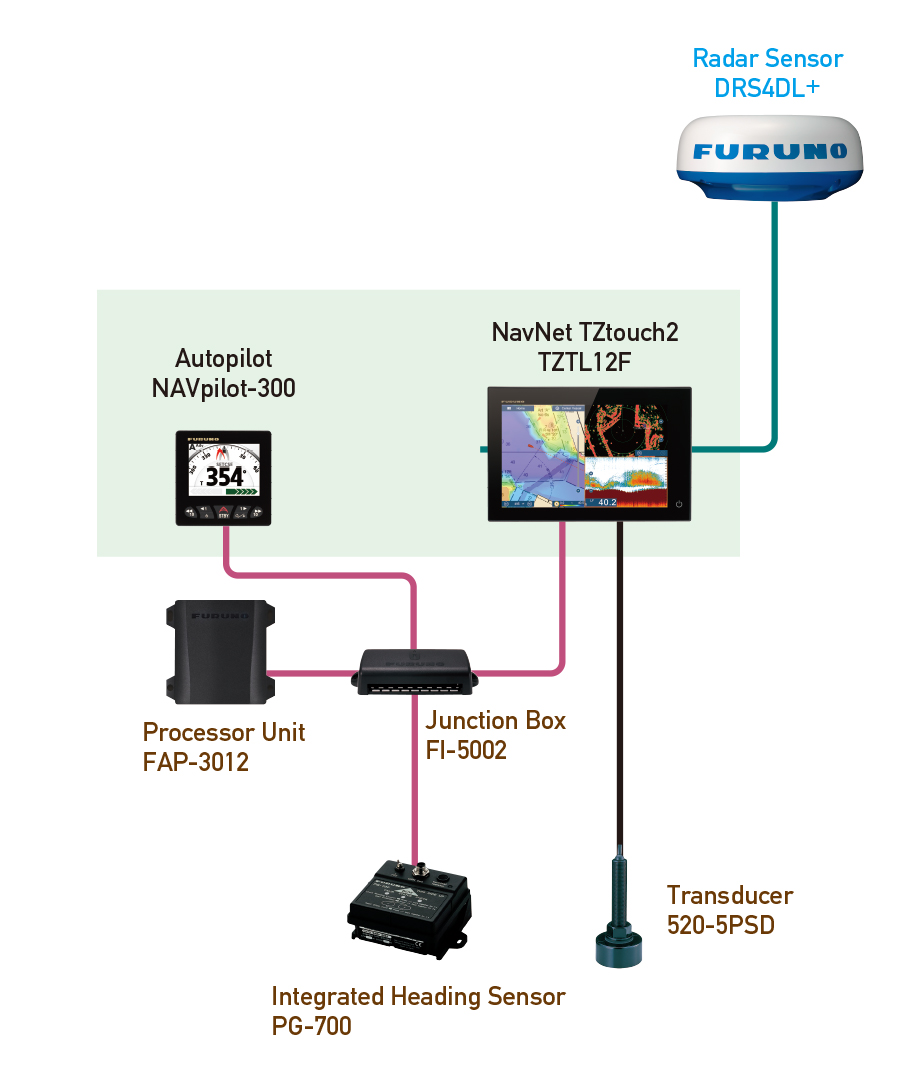

Interconnection Diagram
